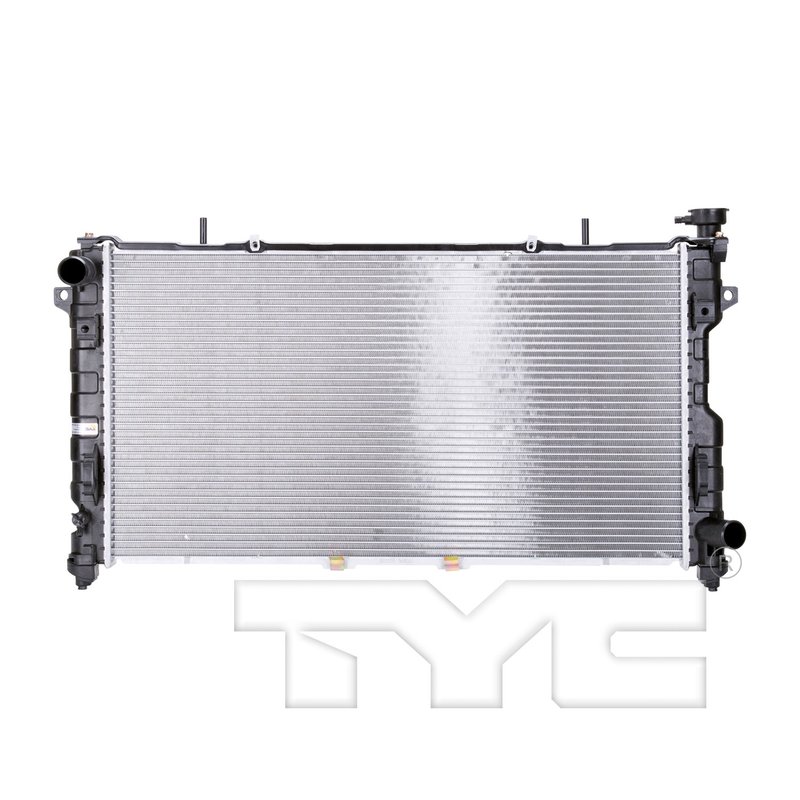

TYC 2770 Radiator
| Brand | TYC 2770 |
|---|---|
| Bottom Header | 2.21x17.35 |
| Core Height (in) | 16.06 |
| Core Length (in) | 30.31 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.26 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.54 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.54 |
| Top Header | 2.21x17.35 |
| Total Fin Row Count | 41 |
| Total Tube Count | 40 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Dodge · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Hose clamp connections. Simple inlet and outlet attachment for a secure fit.
Cross-references APDI 8012770, Chrysler 4677694AA and CSF 2453 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Dodge Caravan
Restore cooling performance with the TYC Radiator 2770, a direct-fit aluminum radiator for select Dodge Caravan applications. It is built for crossflow operation and uses hose clamp inlet and outlet connections for a straightforward replacement in the correct vehicle applications.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow flow configuration
- Single-row design
- Hose clamp inlet and outlet connections
- 1.54 in. inlet and outlet diameters
- Core dimensions: 16.06 in. height, 30.31 in. length, 1.26 in. thickness
- TYC Radiator line replacement part number 2770
Product Details
The TYC Radiator 2770 is engineered for select 2005-2007 Dodge Caravan applications, including 2006-2007 Dodge Caravan, Primary, and 2005 Dodge Caravan, N/A, to 01/2005. This radiator uses an aluminum core with a crossflow layout to support coolant circulation through the cooling system. The design includes no transmission oil cooler and no engine oil cooler, which is important for matching the original equipment configuration on the listed vehicles. If you are searching for a Dodge Caravan radiator replacement, TYC 2770 provides the fitment and core sizing needed for the specified applications.
TYC Radiator is the product line name for this cooling component, and part number 2770 identifies the exact radiator configuration for the listed Dodge Caravan fitments. Cross-reference numbers for the same application include Spectra Premium CU2770 and DENSO 221-9184.
Common Cooling System Issues
- Leaking radiator tanks or seams
- Restricted coolant flow from internal wear or blockage
- Overheating caused by reduced heat dissipation
- Damaged inlet or outlet connections
- Cooling system failure after age-related corrosion
Installation Notes
Verify radiator dimensions, inlet and outlet diameter, and cooler configuration before installation. This unit uses hose clamp connections and is intended for the listed Dodge Caravan applications only. Confirm that the vehicle matches the 2005 Dodge Caravan build date note of to 01/2005, or the 2006-2007 Dodge Caravan Primary fitment, before ordering or installing TYC 2770.
Quality Assurance
TYC manufactures replacement cooling components with application-specific fitment and OE-style construction details. Part number 2770 is built to match the listed radiator specifications for the confirmed vehicle applications.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2007 | Dodge | Caravan | SE | Mini Passenger Van | 2.4L | L4 | Primary | TYC Radiator |
| 2006 | Dodge | Caravan | SE | Mini Passenger Van | 2.4L | L4 | Primary | TYC Radiator |
| 2005 | Dodge | Caravan | — | — | 2.4L | L4 | N/A | To 01/2005; TYC Radiator |
