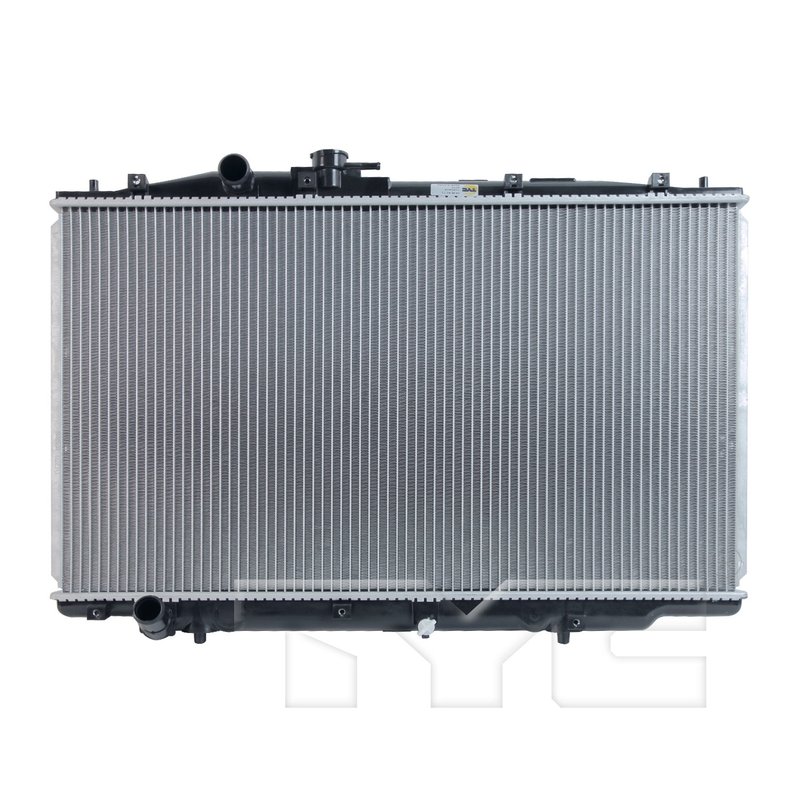

TYC 2773 Radiator
| Brand | TYC 2773 |
|---|---|
| Bottom Header | 2.01x29.13 |
| Core Height (in) | 28.27 |
| Core Length (in) | 16.73 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.26 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.26 |
| Top Header | 2.01x29.13 |
| Total Fin Row Count | 72 |
| Total Tube Count | 71 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Acura · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Downflow design. Supports steady coolant circulation through the radiator.
Hose clamp connections. Simplifies hose attachment for a secure fit.
Cross-references APDI 8012773, CSF 3186 and DENSO 221-3231 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 2773 Radiator for Acura TL
TYC Radiator 2773 is an aluminum replacement radiator built for 2004-2006 Acura TL applications. It uses a downflow design with hose clamp inlet and outlet connections, making it a direct-fit cooling system service part for the specified vehicle range.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Hose clamp inlet and outlet connections
- Core dimensions: 28.27 in. height, 16.73 in. length, 1.02 in. thickness
- 1-row design with 71 total tubes and 72 total fin rows
- Inlet and outlet diameters: 1.26 in.
- No engine oil cooler included
- No transmission oil cooler included
Product Details
TYC Radiator 2773 is engineered for 2004-2006 Acura TL models and follows the dimensions and connection style needed for the listed application. The aluminum core, 26 x 2 tube width and height, and downflow layout support coolant circulation through the radiator assembly. This part cross-references DENSO 221-3231 and Spectra Premium CU2773 for the same application. For buyers searching for a 2004 Acura TL radiator replacement, 2005 Acura TL cooling system part, or 2006 Acura TL radiator assembly, this unit matches the confirmed fitment data.
Common Issues This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted coolant flow
- Cracked tanks or weakened core seams
- Poor heat dissipation from an aging radiator
- Cooling system service needs on a 2004-2006 Acura TL
Installation Notes and Tips
Verify hose clamp connection sizes, core dimensions, and mounting points against the original radiator before installation. Inspect radiator hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination or debris is present. Confirm that the vehicle does not require an integrated engine oil cooler or transmission oil cooler, since this radiator is listed without either feature.
Quality Assurance
TYC Radiator products are built as replacement cooling components for vehicle-specific applications. Part number 2773 is listed with confirmed fitment for 2004-2006 Acura TL models and is supported by interchange references including DENSO and Spectra Premium.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Acura | TL | Automatic | 3.2L | V6 | N/A | TYC Radiator |
| 2005 | Acura | TL | Automatic | 3.2L | V6 | N/A | TYC Radiator |
| 2004 | Acura | TL | Automatic | 3.2L | V6 | N/A | TYC Radiator |
