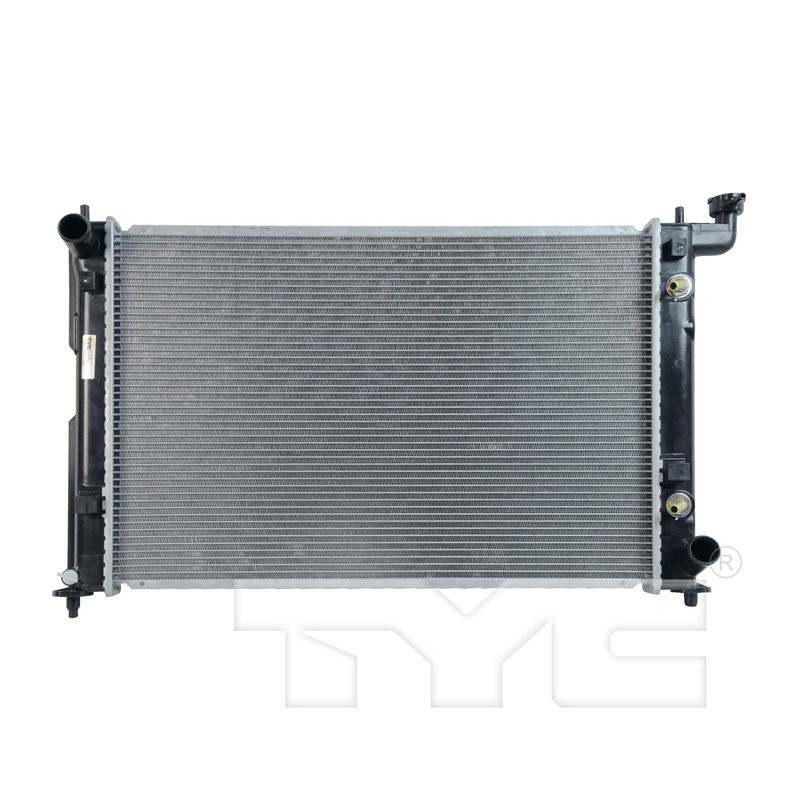

TYC 2776 Radiator - Primary

Overview of TYC Radiator 2776 for Scion tC

The TYC Radiator 2776 is engineered specifically for the Scion tC, providing reliable cooling performance with integrated transmission oil cooling. Designed with durable aluminum core material, this radiator supports efficient heat dissipation and vehicle operation under various driving conditions.

• Core material constructed from aluminum for effective heat transfer
• Includes a concentric transmission oil cooler for enhanced transmission temperature management
• Crossflow design with 1-row core configuration
• Core dimensions: 15.61 inches height, 23.62 inches length, and 0.63 inches thickness
• Inlet and outlet hose clamp connections with 1.32-inch diameter
• Fin count of 78 per 4 inches and total fin rows of 48 for optimized airflow
• Top and bottom headers sized at 2.02 by 17 inches
• Compatible with Scion tC models requiring precise radiator fitment

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line emphasizes durable aluminum cores and integrated transmission oil coolers where applicable, such as in part number 2776. The TYC Radiator series is designed to provide reliable thermal management for vehicles like the Scion tC, ensuring proper engine and transmission operation.

Technical Description and Features

This radiator features a single-row core with a crossflow configuration, allowing coolant to flow horizontally through the core for efficient heat exchange. The aluminum core measures 15.61 inches in height, 23.62 inches in length, and 0.63 inches in thickness, providing a balance between cooling capacity and compact design. The fin density includes 78 fins every 4 inches and a total of 48 fin rows, which enhances airflow and heat dissipation. The radiator also incorporates a concentric transmission oil cooler, improving transmission fluid cooling without the need for a separate unit. Both inlet and outlet connections use hose clamps with a diameter of 1.32 inches, facilitating secure and straightforward installation.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Scion tC vehicles
• Addresses overheating issues caused by inefficient cooling systems
• Resolves transmission overheating by integrating a concentric oil cooler
• Eliminates coolant leaks from damaged or corroded radiator cores
• Improves engine temperature regulation for consistent vehicle performance

Installation Notes and Tips

When installing the TYC Radiator 2776, ensure the hose clamp connections for both inlet and outlet are properly secured to prevent leaks. Verify compatibility with your specific Scion tC model year before installation. The crossflow design requires correct orientation to maintain optimal coolant flow. It is recommended to inspect and replace any worn hoses or clamps during installation to maintain system integrity.

Quality Assurance and Warranty

TYC Radiator 2776 is manufactured to meet industry standards for durability and performance. The aluminum core construction resists corrosion and supports long-term use. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
