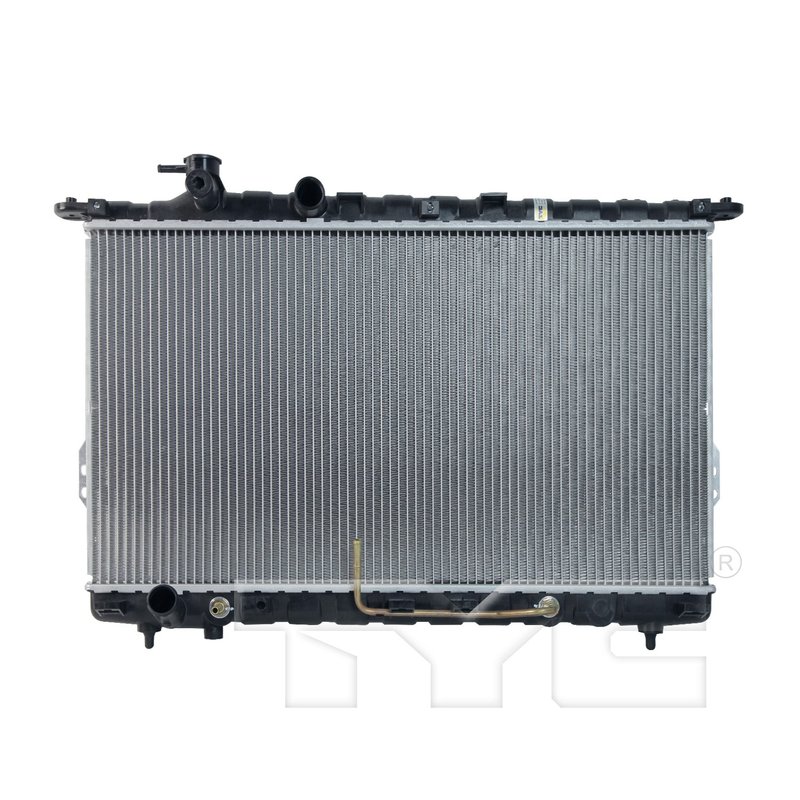

TYC 2790 Radiator

Overview of TYC Radiator 2790 for Kia Amanti

The TYC Radiator 2790 is engineered to provide reliable cooling performance for the Kia Amanti. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Downflow flow configuration optimized for Kia Amanti engine bay
• Core dimensions: 28.27 inches height, 15.75 inches length, and 1.02 inches thickness
• Hose clamp inlet and outlet connections with 1.38-inch diameter
• Single-row tube design with 71 total tubes and 72 fin rows for optimal airflow

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. The TYC Radiator 2790 is part of this line, featuring a robust aluminum core and integrated transmission oil cooler designed specifically for vehicles like the Kia Amanti. This ensures compatibility and reliable performance under normal operating conditions.

Technical Specifications and Features

This radiator features a 1.99 by 28.78 inch top and bottom header, supporting a sturdy frame structure. The downflow configuration allows coolant to flow from top to bottom, facilitating efficient heat exchange. The concentric transmission oil cooler is integrated with tube fittings sized at 0.31 inches for both inlet and outlet, providing dedicated cooling for the transmission fluid without the need for a separate cooler. The radiator’s fin count is 68 per 4 inches with a fin wave height of 0.31 inches and a wave pitch of 3, contributing to effective heat dissipation. The single-row tube design with 71 tubes and 72 fin rows balances cooling capacity and airflow resistance.

Compatible Applications and Common Issues Addressed

• Replacement for failing or leaking radiator in Kia Amanti models
• Resolves overheating issues caused by inefficient cooling
• Addresses transmission fluid overheating with integrated oil cooler
• Fixes coolant leaks from damaged or corroded radiator cores
• Improves engine temperature regulation for consistent performance

Installation Notes and Tips

Installation requires proper handling of hose clamp connections with 1.38-inch diameter inlet and outlet ports. Ensure the downflow orientation is maintained for optimal coolant circulation. The concentric transmission oil cooler uses tube fittings sized at 0.31 inches; verify secure connections to prevent leaks. It is recommended to inspect all hoses and clamps during installation and replace any worn components to maintain system integrity.

Quality Assurance and Warranty

The TYC Radiator 2790 is manufactured to meet industry standards for durability and performance. Constructed with an aluminum core and designed for direct fitment on Kia Amanti vehicles, it offers reliable cooling and transmission fluid management. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase.
