Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

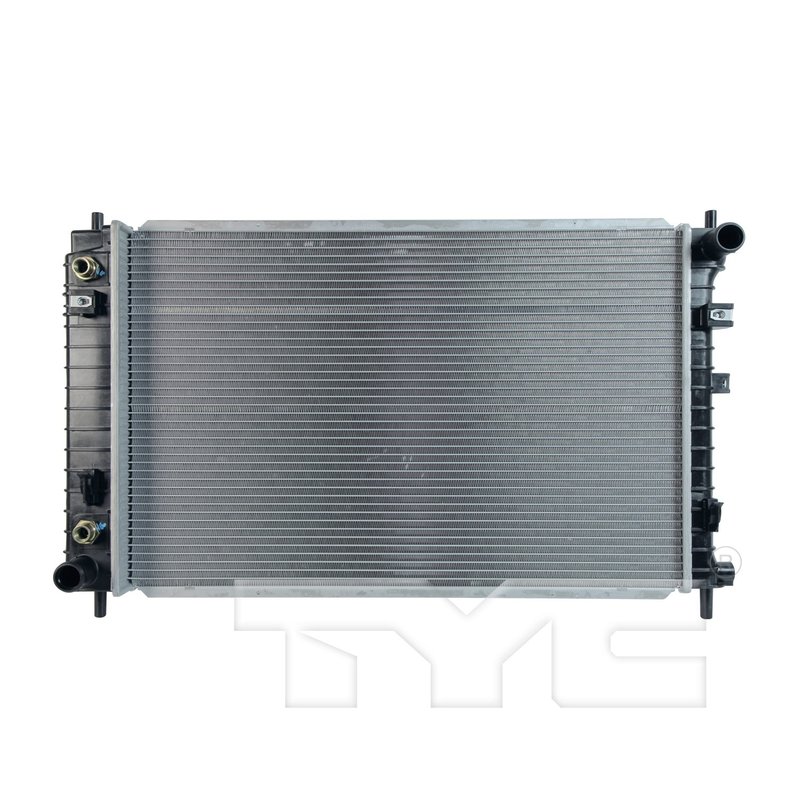

TYC 2798 Radiator
| Brand | TYC 2798 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 3.16x17.31 |
| Core Height (in) | 16.81 |
| Core Length (in) | 25.98 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.30 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.30 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 5/8-18unf |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 5/8-18unf |
| Toc Outlet Type | Adapter |
| Top Header | 1.97x17.28 |
| Total Fin Row Count | 39 |
| Total Tube Count | 38 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Saturn · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports steady coolant flow through the radiator.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid.
Cross-references APDI 8012799, CSF 3384 and DENSO 221-9105 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Saturn Vue
The TYC Radiator 2798 is a direct-fit cooling replacement for the 2004-2007 Saturn Vue. Built with an aluminum core and a crossflow design, it includes a transmission oil cooler with plate-style construction for vehicles equipped with automatic transmission cooling needs.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included
- Plate oil cooler type with adapter connections
- Hose clamp inlet and outlet connections
- Core dimensions: 16.81 in. height, 25.98 in. length, 1.02 in. thickness
- Single-row core design with 38 tubes and 39 fin rows
- OE-style replacement for Saturn Vue cooling system service
Detailed Description
TYC Radiator 2798 is built for 2004-2007 Saturn Vue applications and matches the vehicle’s cooling and transmission fluid routing requirements. The aluminum core, crossflow flow configuration, and integrated transmission oil cooler support stable engine temperature control while maintaining the factory-style connection layout. This radiator is a practical replacement for Saturn Vue owners searching for a TYC Radiator 2798 or a Saturn Vue radiator with transmission cooler included.
This part cross-references DENSO 221-9105 and Spectra Premium CU2608 for the same application.
What It Helps Address
- Overheating caused by a worn or leaking radiator
- Transmission fluid temperature issues tied to a failing cooler circuit
- Coolant loss from cracked tanks or damaged core passages
- Reduced heat dissipation from clogged or corroded radiator internals
- Fitment problems when replacing the original Saturn Vue radiator
Installation Notes and Tips
Verify inlet and outlet diameters, cooler adapter connections, and core dimensions before installation. Flush the cooling system and inspect hoses, clamps, and transmission cooler lines for wear before connecting the new radiator. Confirm the replacement matches the 2004-2007 Saturn Vue configuration before final assembly.
Quality Assurance
TYC is a recognized aftermarket brand for cooling system replacement parts, and this radiator is built to match the listed application and connection style for the Saturn Vue platform. Fits 2004 Saturn Vue, N/A. Fits 2005 Saturn Vue, N/A. Fits 2006 Saturn Vue, N/A. Fits 2007 Saturn Vue, N/A.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Saturn | Vue | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2006 | Saturn | Vue | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2005 | Saturn | Vue | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2005 | Saturn | Vue | Automatic CVT | 3.5L | V6 | N/A | TYC Radiator |
| 2004 | Saturn | Vue | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2004 | Saturn | Vue | Automatic CVT | 3.5L | V6 | N/A | TYC Radiator |
