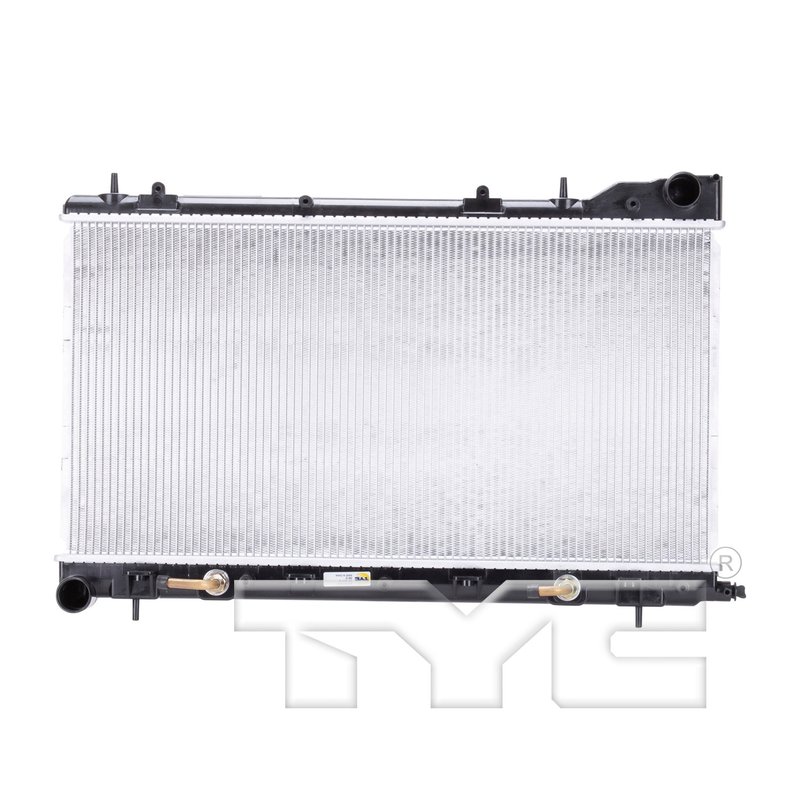

TYC 2812 Radiator

Overview of the TYC Radiator 2812 for Subaru Forester

The TYC Radiator 2812 is engineered specifically for Subaru Forester models, providing reliable cooling performance. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine operation and transmission temperature management.

• Core material: durable aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for integrated cooling
• Core dimensions: 27.04 inches height, 14.17 inches length, 0.63 inches thickness
• Downflow configuration with 81 fins per 4 inches for optimized airflow
• Hose clamp inlet and outlet connections with 1.54-inch diameter
• Compatible with Subaru Forester models requiring part number 2812

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line includes radiators designed with precision core dimensions and integrated features such as transmission oil coolers. The TYC Radiator 2812 exemplifies this approach by combining a robust aluminum core with a concentric oil cooler to maintain optimal engine and transmission temperatures in Subaru Forester vehicles.

Technical Specifications and Features

This radiator features a single-row core with 82 tubes and 83 total fin rows, ensuring efficient heat exchange. The fin wave height is 0.25 inches with a pitch of 2.5, contributing to effective airflow and cooling capacity. The bottom header measures 2.38 by 28.21 inches, while the top header is 1.96 by 28.21 inches. The flow configuration is downflow, which supports consistent coolant circulation. Both inlet and outlet connections use hose clamps with a diameter of 1.54 inches, facilitating secure hose attachment. The included concentric transmission oil cooler uses tube fittings with 0.39-inch diameters for inlet and outlet connections.

Common Applications and Problem Resolution

• Replaces faulty or leaking radiators in Subaru Forester vehicles
• Addresses overheating issues caused by inefficient cooling
• Resolves transmission overheating with integrated oil cooler
• Eliminates coolant leaks from damaged or corroded radiator cores
• Improves engine temperature regulation for consistent performance

Installation Notes and Tips

When installing the TYC Radiator 2812, ensure all hose clamps are securely fastened to prevent leaks. Verify compatibility with your Subaru Forester model year before installation. Properly bleed the cooling system after installation to remove air pockets. Handle the aluminum core carefully to avoid damage to fins or tubes. It is recommended to inspect and replace any worn hoses or clamps during installation for optimal performance.

Quality Assurance and Warranty

TYC Radiator products are manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. This radiator includes an integrated transmission oil cooler designed to OEM specifications. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
