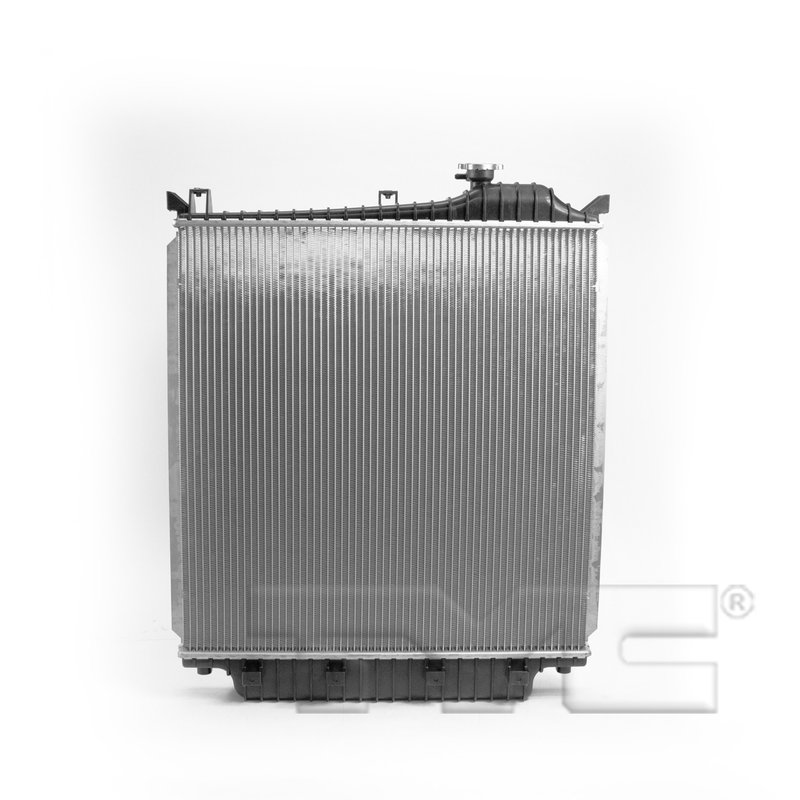

TYC 2816 Radiator
| Brand | TYC 2816 |
|---|---|
| Bottom Header | 3.2x23.67 |
| Core Height (in) | 23.15 |
| Core Length (in) | 23.94 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.26 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick Connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick Connect |
| Top Header | 3.2x23.67 |
| Total Fin Row Count | 59 |
| Total Tube Count | 58 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Ford and Mercury · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Downflow design. Supports steady coolant flow through the radiator.
Cross-references APDI 8012816, CSF 3464 and Ford 6L2Z 8005 AA for the same application. See all 9.
Radiator for Ford Explorer and Mountaineer
This TYC Radiator 2816 is a direct-fit cooling replacement for select 2006 Ford Explorer, 2006 Mercury Mountaineer, and 2007 Ford Explorer Sport Trac applications. Built with an aluminum core and a downflow design, it includes a transmission oil cooler to support automatic transmission cooling in the original vehicle layout.
Key Features
- TYC Radiator 2816 for confirmed Ford and Mercury fitment
- Aluminum core construction for efficient heat transfer
- Downflow configuration for OE-style cooling system routing
- Transmission oil cooler included with plate oil cooler design
- 1.50 in. hose clamp inlet and outlet connections
- Single-row core with 23.15 in. height, 23.94 in. length, and 1.26 in. thickness
- Cross-references APDI 8012816 and Spectra Premium CU2816 for the same application
Detailed Description
TYC Radiator 2816 is engineered for vehicles that use a downflow radiator layout and integrated transmission cooling. The aluminum core, 58 total tubes, and plate-style transmission oil cooler are specified to match the cooling demands of the original system while maintaining the correct hose clamp inlet and outlet connections. This radiator is listed for 2006 Ford Explorer, 2006 Mercury Mountaineer, and 2007 Ford Explorer Sport Trac, with the Sport Trac application noted for use through 08/07/2006. For buyers searching for a 2006 Ford Explorer radiator or a 2006 Mercury Mountaineer radiator, this part number provides a direct replacement path.
What It Helps Address
- Engine overheating caused by a worn or leaking radiator
- Transmission temperature concerns when the factory cooler is part of the circuit
- Coolant loss from cracked tanks or damaged core passages
- Poor heat rejection from a restricted or corroded radiator core
- Fitment issues when replacing an OE-style downflow radiator
Installation Notes and Tips
Verify inlet and outlet hose size, cooler line connection style, and core dimensions before installation. This radiator uses hose clamp connections at the inlet and outlet, with quick-connect transmission cooler ports. Confirm vehicle build date on 2007 Ford Explorer Sport Trac models, since fitment is listed through 08/07/2006. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation.
Quality Assurance
TYC Radiator 2816 is built to match the listed OE-style configuration for the specified Ford and Mercury applications. The part number also cross-references Ford 6L2Z 8005 AA for the same application.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | Explorer Sport Trac | Automatic | 4.0L | V6 | N/A | To 08/07/2006; TYC Radiator |
| 2007 | Ford | Explorer Sport Trac | Automatic | 4.6L | V8 | N/A | To 08/07/2006; TYC Radiator |
| 2006 | Ford | Explorer | Automatic | 4.6L | V8 | N/A | TYC Radiator |
| 2006 | Ford | Explorer | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2006 | Mercury | Mountaineer | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2006 | Mercury | Mountaineer | Automatic | 4.6L | V8 | N/A | TYC Radiator |
