Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

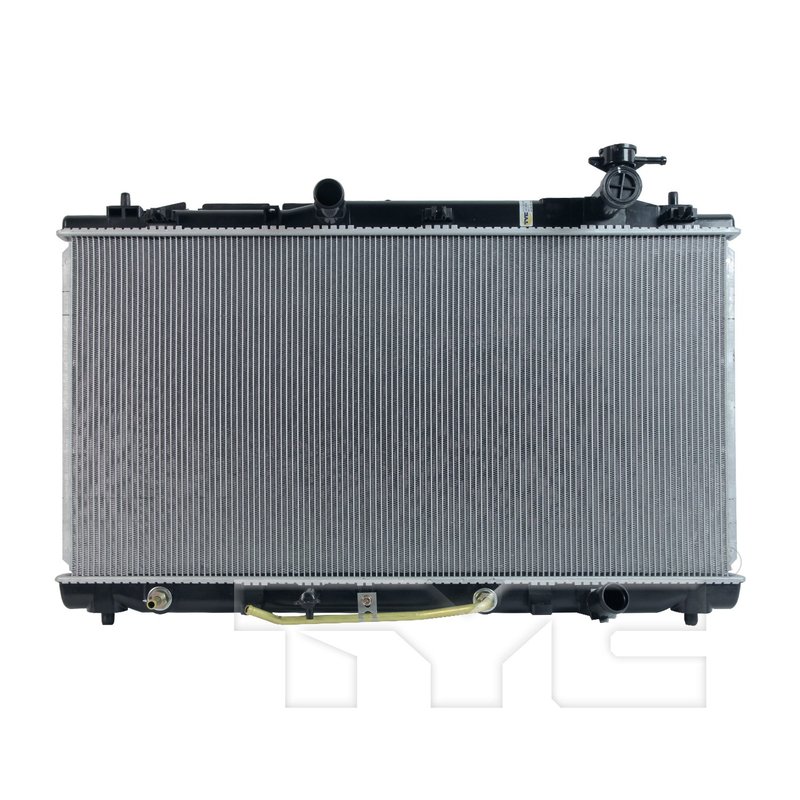

TYC 2817 Radiator - Front
| Brand | TYC 2817 |
|---|---|
| Position | Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2x31.43 |
| Core Height (in) | 30.14 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.36 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.36 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.42x31.43 |
| Total Fin Row Count | 118 |
| Total Tube Count | 117 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 16x1.5 |
| Product line | TYC Radiator |
| Fits | Toyota · 16 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Supports straightforward coolant flow through the radiator.
Cross-references APDI 8012817, CSF 3148 and DENSO 221-3157 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Toyota Avalon and Camry
TYC Radiator 2817 is an aluminum downflow radiator built for specific Toyota applications that require integrated transmission cooling. It fits 2005-2012 Toyota Avalon, 2011 Toyota Camry front with tow package and Japan-built configuration, and 2007-2011 Toyota Camry front USA-built configuration.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with concentric oil cooler design
- No engine oil cooler included
- Hose clamp inlet and outlet connections
- Single-row core design with 0.63 in core thickness
- Core dimensions: 30.14 in height, 15.75 in length
- TYC Radiator line replacement for OE-style cooling system service
Detailed Description
TYC Radiator 2817 is engineered as a direct-fit cooling system replacement for select Toyota Avalon and Toyota Camry models. The aluminum core, downflow layout, and integrated concentric transmission oil cooler support proper coolant and transmission fluid heat management in applications that use a combined radiator and transmission cooler assembly. This part number is also referenced by Toyota 16400-AD010 and cross-references APDI 8012817 for the same application.
For buyers searching for a Toyota Avalon radiator replacement or a Toyota Camry radiator with transmission cooler, TYC 2817 matches the listed vehicle configurations and connection types. The radiator uses hose clamp inlet and outlet connections with 1.36 in inlet and outlet diameters, plus 0.39 in tube-fitting transmission cooler ports.
Common Problems This Part Can Address
- Coolant leaks from a damaged or corroded radiator core
- Overheating caused by restricted coolant flow or internal radiator failure
- Transmission fluid temperature concerns when the cooler circuit is compromised
- Cracked or weakened hose connection points at the radiator tanks
- Reduced cooling performance in high-load driving or tow package use
Installation Notes and Tips
Verify vehicle build details before ordering, especially for 2011 Toyota Camry applications, since fitment differs between Japan-built tow package models and USA-built models. Confirm the radiator uses the same inlet and outlet connection style, transmission cooler port style, and overall dimensions before installation. Flush the cooling system, inspect hoses and clamps, and check the transmission cooler lines for contamination or wear during replacement.
Quality Assurance
TYC Radiator 2817 is built to match the listed OE-style application requirements for the Toyota Avalon and Toyota Camry platforms. The part is specified with aluminum construction, integrated transmission cooling, and application-specific dimensions to support proper fitment and cooling system service.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2012 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2011 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2011 | Toyota | Camry | SE | — | 3.5L | V6 | Front | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2011 | Toyota | Camry | XLE | — | 3.5L | V6 | Front | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2011 | Toyota | Camry | LE | — | 3.5L | V6 | Front | USA BUILT; TYC Radiator |
| 2011 | Toyota | Camry | LE | — | 3.5L | V6 | Front | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2010 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2010 | Toyota | Camry | — | — | 3.5L | V6 | Front | USA BUILT; TYC Radiator |
| 2009 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2009 | Toyota | Camry | — | — | 3.5L | V6 | Front | USA BUILT; TYC Radiator |
| 2008 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2008 | Toyota | Camry | — | — | 3.5L | V6 | Front | USA BUILT; TYC Radiator |
| 2007 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2007 | Toyota | Camry | — | — | 3.5L | V6 | Front | USA BUILT; TYC Radiator |
| 2006 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
| 2005 | Toyota | Avalon | — | Automatic | 3.5L | V6 | N/A | TYC Radiator |
