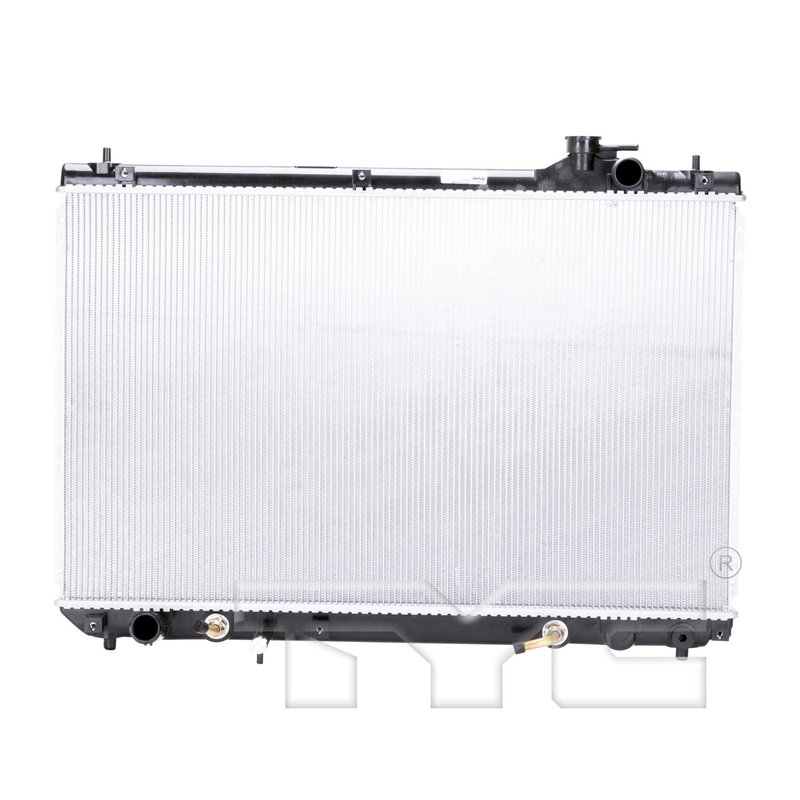

TYC 2849 Radiator

Overview of TYC Radiator 2849 for Toyota Highlander

The TYC Radiator 2849 is engineered specifically for Toyota Highlander models, providing reliable cooling performance with integrated transmission oil cooling. Designed with durable aluminum core material, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from aluminum for effective heat dissipation
• Includes a concentric transmission oil cooler for integrated cooling
• Downflow core design with 1 row and 113 tubes for optimized coolant flow
• Hose clamp inlet and outlet connections with 1.38-inch diameter
• Core dimensions: 29.11 inches height, 17.72 inches length, and 0.63 inches thickness
• Fin count of 81 per 4 inches and total fin row count of 114 for enhanced airflow
• Compatible with Toyota Highlander vehicles requiring part number 2849

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line integrates advanced materials and design features such as aluminum cores and built-in transmission oil coolers to ensure compatibility and performance for specific vehicle applications like the Toyota Highlander. The TYC Radiator 2849 exemplifies this approach by combining durability and efficient cooling in a single unit.

Technical Description and Features

This radiator features a downflow flow configuration with a single row core consisting of 113 tubes measuring 16 by 1.5 inches. The aluminum core provides effective heat transfer, while the fin design includes 81 fins every 4 inches with a fin wave height of 0.20 inches and a pitch of 2.5 inches, promoting optimal airflow. The top and bottom headers measure 2.04 by 29.9 inches, supporting structural integrity. The integrated concentric transmission oil cooler uses tube fittings with 0.39-inch inlet and outlet diameters, allowing for efficient transmission fluid cooling without the need for a separate cooler. Both inlet and outlet connections utilize hose clamps with 1.38-inch diameters, ensuring secure hose attachment.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Toyota Highlander models
• Addresses overheating issues caused by inefficient cooling systems
• Resolves transmission fluid temperature regulation problems with built-in oil cooler
• Suitable for vehicles experiencing coolant leaks or corrosion in the radiator core
• Helps restore proper engine temperature control and transmission performance

Installation Notes and Tips

Ensure compatibility by verifying the part number 2849 matches your Toyota Highlander model year and engine configuration. Use appropriate hose clamps for inlet and outlet connections sized at 1.38 inches. When installing, inspect all hoses and fittings for wear or damage and replace as necessary to maintain a secure seal. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal performance.

Quality Assurance and Warranty

The TYC Radiator 2849 is manufactured to meet industry standards for durability and performance. Constructed with corrosion-resistant aluminum and designed for precise fitment, this radiator supports long-term reliability. Warranty details should be confirmed with the product documentation or supplier to ensure coverage specifics.
