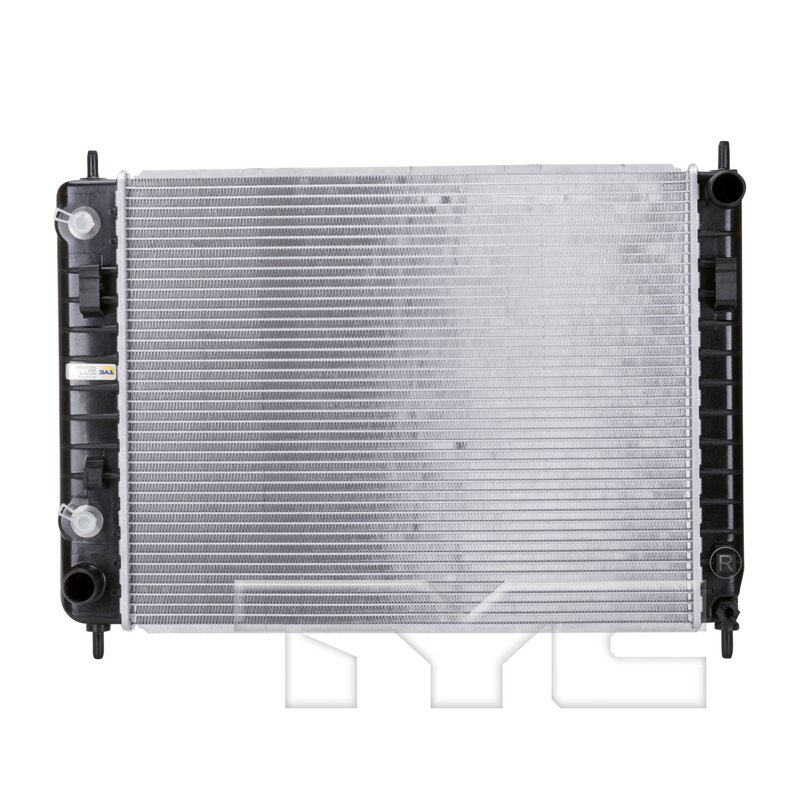

TYC 2850 Radiator

Overview of the TYC Radiator for Chevrolet HHR

The TYC Radiator part number 2850 is designed specifically for Chevrolet HHR models, providing reliable engine cooling and transmission oil cooling. Constructed with an aluminum core, this radiator supports efficient heat dissipation and durability for your vehicle's cooling system.

• Core Material: Aluminum for effective heat transfer
• Includes a plate-type transmission oil cooler
• Core dimensions: 17.24 inches height, 21.65 inches length, 1.02 inches thickness
• Crossflow design with 64 fins per 4 inches and 43 tubes for optimal airflow
• Hose clamp inlet and outlet connections with 1.36-inch diameter
• Quick connect transmission oil cooler inlet and outlet with 0.37-inch diameter
• Single-row tube configuration with 44 total fin rows
• Top and bottom headers sized 2.42 by 16.59 inches

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This radiator model 2850 integrates a plate-type transmission oil cooler, enhancing the cooling efficiency for Chevrolet HHR vehicles. The aluminum core construction and crossflow design contribute to consistent engine temperature regulation and transmission fluid cooling.

Technical Description and Features

This radiator features a robust aluminum core measuring 17.24 inches in height, 21.65 inches in length, and 1.02 inches thick, ensuring sufficient surface area for heat exchange. The crossflow flow configuration promotes effective coolant circulation across the core. With 64 fins every 4 inches and a fin wave height of 0.31 inches, the design maximizes airflow and heat dissipation. The radiator includes a plate-type transmission oil cooler with quick connect fittings sized at 0.37 inches, facilitating efficient transmission fluid cooling. Both inlet and outlet connections use hose clamps with a diameter of 1.36 inches, compatible with standard Chevrolet HHR cooling system hoses. The single-row tube layout with 43 tubes and 44 fin rows supports consistent coolant flow and thermal management.

Common Applications and Problem Solving

• Replaces faulty or leaking radiators in Chevrolet HHR vehicles
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid overheating with integrated plate oil cooler
• Eliminates coolant leaks from damaged or corroded radiator cores
• Improves engine temperature stability under heavy load or high ambient temperatures

Installation Notes and Tips

Ensure compatibility with Chevrolet HHR models before installation. Use appropriate hose clamps for inlet and outlet connections sized at 1.36 inches. The transmission oil cooler quick connect fittings require matching connectors for secure attachment. Inspect all hoses and fittings for wear or damage during replacement. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

TYC Radiator part number 2850 is manufactured to meet OEM standards for fit, form, and function. The aluminum core and integrated transmission oil cooler are designed for durability and consistent performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliability in Chevrolet HHR applications.
