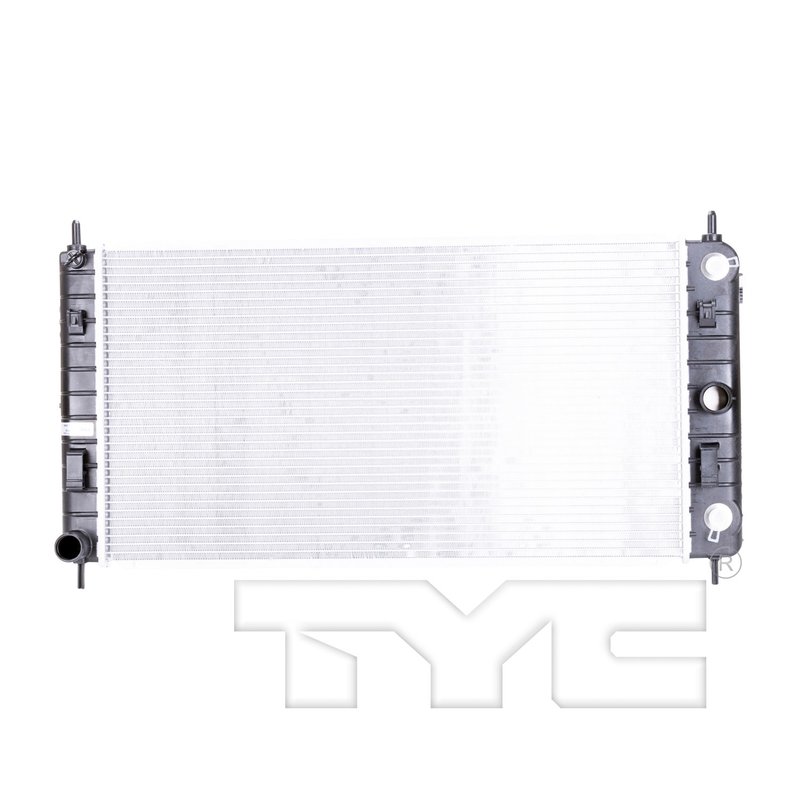

TYC 2864 Radiator - Primary

Brand TYC 2864
Position Primary
Core Material Aluminum
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Plate oil cooler
Engine Oil Cooler Included No
Accessories Included 1 x toc hose clamp (blue)
Bottom Header 2.03x15.1
Core Height (in) 14.49
Core Length (in) 26.77
Core Thickness (in) 0.87
Fin Count (every 4") 73
Fin Wave Height (in) 0.31
Find Wave Pitch 2.8
Flow Configuration Crossflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.36
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.36
Toc Distance (in) 11.50
Toc Inlet Diameter (in) 0.37
Toc Inlet Type Quick connect
Toc Outlet Diameter (in) 0.37
Toc Outlet Type Quick connect
Top Header 2.03x15.1
Total Fin Row Count 37
Total Tube Count 36
Tube Count (every 4") 10
Tube Width X Height 22x2
Product line TYC Radiator
Fits Chevrolet, Pontiac, and Saturn · 44 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Crossflow design. Supports steady coolant flow through the radiator.

Transmission oil cooler included. Adds integrated cooling for the transmission fluid.

Cross-references ACDelco 21609, APDI 8012864 and CSF 3436 for the same application. See all 12.

$110.84Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $110.84
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

Radiator for Malibu, G6, and Aura

TYC Radiator 2864 is a direct-fit aluminum radiator with an integrated transmission oil cooler for select Chevrolet Malibu, Pontiac G6, and Saturn Aura applications. It is built around a crossflow core layout to support OE-style cooling performance and transmission fluid temperature control.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Integrated plate-style transmission oil cooler
  • Crossflow design with one-row core layout
  • Hose clamp inlet and outlet connections, 1.36 in. diameter
  • Core dimensions: 26.77 in. length, 14.49 in. height, 0.87 in. thickness
  • Includes 1 x TOC hose clamp (blue)
  • TYC Radiator 2864 cross-references OE and aftermarket numbers including ACDelco 21609 and Spectra Premium CU2864

Detailed Description

TYC Radiator 2864 is engineered for vehicles that use a radiator with an integrated transmission cooler circuit. The aluminum core, 36-tube layout, and plate oil cooler design support heat exchange for both engine coolant and automatic transmission fluid. This part is listed for 2008-2012 Chevrolet Malibu, 2006-2010 Pontiac G6, and 2007-2009 Saturn Aura, including 2007 Saturn Aura Primary applications. TYC Radiator 2864 is a practical OE-style replacement for drivers searching for a radiator for 2008-2012 Chevrolet Malibu or a radiator for 2006-2010 Pontiac G6 with transmission oil cooler connections.

What It Helps Address

  • Coolant leaks from a damaged or corroded radiator
  • Overheating caused by restricted or inefficient heat transfer
  • Transmission fluid temperature issues tied to a failed cooler circuit
  • Cracked hose connections or worn inlet and outlet fittings
  • Cooling system service needs on Malibu, G6, and Aura applications

Installation Notes and Tips

Verify radiator dimensions, inlet and outlet diameter, and transmission cooler line connection style before installation. This unit uses hose clamp connections for the radiator inlet and outlet and quick-connect fittings for the transmission oil cooler ports. Flush the cooling system, inspect hoses and clamps, and confirm proper coolant fill and bleed procedures after installation.

Quality Assurance

TYC Radiator 2864 is built as a replacement radiator for select GM applications and follows the listed core and connection specifications for fitment accuracy. TYC Radiator is the product line designation for this radiator assembly.

Related reading

This part fits 44 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeTransmissionLitersCylindersFuel TypePositionNotes
2012ChevroletMalibuLT—Automatic2.4LL4—N/ATYC Radiator
2012ChevroletMalibuLT—Automatic3.6LV6—N/ATYC Radiator
2012ChevroletMalibuLTZ—Automatic2.4LL4—N/ATYC Radiator
2012ChevroletMalibuLS—Automatic2.4LL4—N/ATYC Radiator
2012ChevroletMalibuLTZ—Automatic3.6LV6—N/ATYC Radiator
2011ChevroletMalibuLS—Automatic2.4LL4—N/ATYC Radiator
2011ChevroletMalibuLTZ—Automatic3.6LV6—N/ATYC Radiator
2011ChevroletMalibuLT—Automatic3.6LV6—N/ATYC Radiator
2011ChevroletMalibuLTZ—Automatic2.4LL4—N/ATYC Radiator
2011ChevroletMalibuLT—Automatic2.4LL4—N/ATYC Radiator
2010ChevroletMalibuLT—Automatic2.4LL4—N/ATYC Radiator
2010ChevroletMalibuLS—Automatic2.4LL4—N/ATYC Radiator
2010ChevroletMalibuLT—Automatic3.6LV6—N/ATYC Radiator
2010ChevroletMalibuLS—Automatic3.5LV6—N/ATYC Radiator
2010ChevroletMalibuHybrid—Automatic2.4LL4ELECTRIC/GASN/ATYC Radiator
2010ChevroletMalibuLTZ—Automatic2.4LL4—N/ATYC Radiator
2010ChevroletMalibuLTZ—Automatic3.6LV6—N/ATYC Radiator
2010PontiacG6——Automatic2.4LL4—N/ATYC Radiator
2009ChevroletMalibuLT—Automatic3.6LV6—N/ATYC Radiator
2009ChevroletMalibuLT—Automatic2.4LL4—N/ATYC Radiator
2009ChevroletMalibuLS—Automatic2.4LL4—N/ATYC Radiator
2009ChevroletMalibuLS—Automatic3.5LV6—N/ATYC Radiator
2009ChevroletMalibuLTZ—Automatic2.4LL4—N/ATYC Radiator
2009ChevroletMalibuLT—Automatic3.5LV6—N/ATYC Radiator
2009ChevroletMalibuLTZ—Automatic3.6LV6—N/ATYC Radiator
2009ChevroletMalibuHybrid—Automatic2.4LL4ELECTRIC/GASN/ATYC Radiator
2009PontiacG6——Automatic3.6LV6—N/ATYC Radiator
2009PontiacG6——Automatic2.4LL4—N/ATYC Radiator
2009SaturnAura——Automatic2.4LL4GASN/ATYC Radiator
2009SaturnAuraHybrid—Automatic2.4LL4ELECTRIC/GASN/ATYC Radiator
2008ChevroletMalibuLT—Automatic3.6LV6—N/ATYC Radiator
2008ChevroletMalibuLTZ—Automatic2.4LL4—N/ATYC Radiator
2008ChevroletMalibuLS—Automatic3.5LV6—N/ATYC Radiator
2008ChevroletMalibuLTZ—Automatic3.6LV6—N/ATYC Radiator
2008ChevroletMalibuLS—Automatic2.4LL4—N/ATYC Radiator
2008ChevroletMalibuLT—Automatic2.4LL4—N/ATYC Radiator
2008ChevroletMalibuHybrid—Automatic2.4LL4ELECTRIC/GASN/ATYC Radiator
2008PontiacG6——Automatic2.4LL4—N/ATYC Radiator
2008PontiacG6——Automatic3.6LV6—N/ATYC Radiator
2008SaturnAura——Automatic2.4LL4GASN/ATYC Radiator
2007PontiacG6——Automatic2.4LL4—N/ATYC Radiator
2007PontiacG6——Automatic3.6LV6—N/ATYC Radiator
2007SaturnAuraXRSedan—3.6LV6—PrimaryTYC Radiator
2006PontiacG6——Automatic2.4LL4—N/ATYC Radiator
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — 21609APDI — 8012864CSF — 3436Delphi — RA20129DENSO — 221-9018General Motors — 52495681Partslink — GM3010507Performance Radiator — 2310Silla Cooling — 8151Spectra Premium — CU2864Vista Pro — 434037Visteon — 8151
