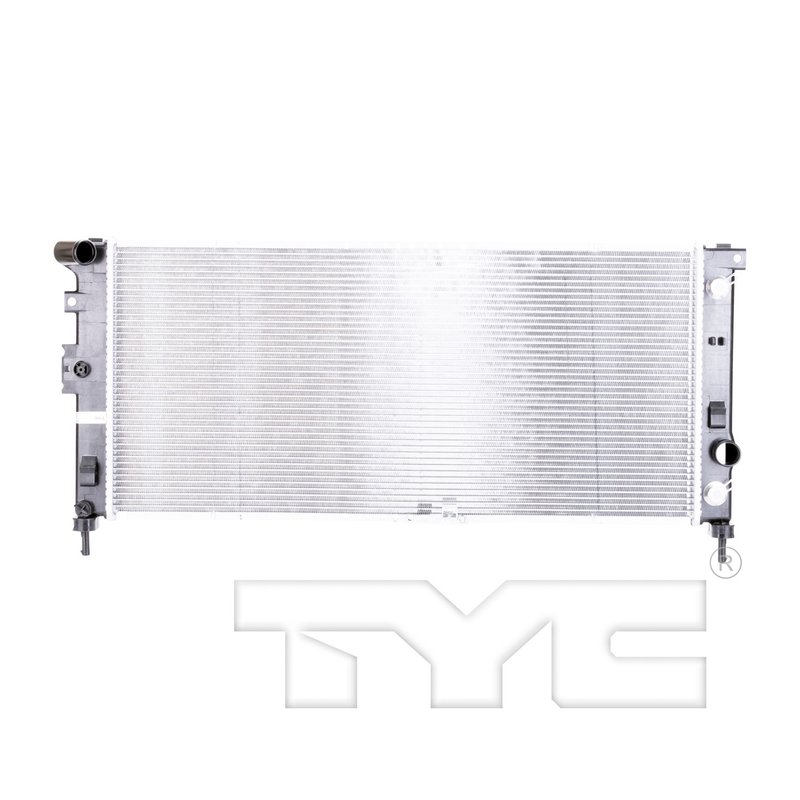

TYC 2881 Radiator

Overview of TYC Radiator 2881 for Buick, Chevrolet, Pontiac, and Saturn

The TYC Radiator 2881 is engineered to provide reliable cooling performance for select Buick, Chevrolet, Pontiac, and Saturn models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation and transmission temperature management.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow design with 1.02-inch core thickness and 13.97-inch core height
• Hose clamp inlet and outlet connections with 1.34-inch diameter
• Compatible with Buick Montana, Chevrolet Relay, Pontiac Montana, and Saturn Vue models

TYC Radiator Product Line Features

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. Radiators in this line, including part number 2881, feature robust aluminum cores and integrated transmission oil coolers where applicable. This ensures proper heat exchange and transmission fluid temperature control, contributing to vehicle longevity and performance.

Detailed Specifications and Design

This radiator features a 30.43-inch core length and a 13.97-inch core height, with a 1.02-inch thickness that supports efficient coolant flow. The crossflow configuration optimizes heat dissipation across the core. It includes 78 fins per 4 inches and a total of 43 fin rows, enhancing airflow and cooling capacity. The radiator has a single row of tubes, with 42 tubes total, each measuring 26 by 2 inches. Both the top and bottom headers measure 2.6 by 14.88 inches, providing structural integrity. The transmission oil cooler uses a plate oil cooler design with quick connect inlet and outlet fittings sized at 0.49 inches, facilitating easy installation and secure connections.

Applications and Problem Solving

• Replaces failing or leaking radiators in Buick Montana, Chevrolet Relay, Pontiac Montana, and Saturn Vue vehicles
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid overheating with integrated plate oil cooler
• Eliminates coolant leaks from damaged or corroded radiator cores
• Improves engine cooling system reliability and performance

Installation Notes and Tips

Installation requires proper handling of hose clamp connections for both inlet and outlet hoses, each with a 1.34-inch diameter. The quick connect fittings for the transmission oil cooler simplify attachment but should be checked for secure fitment to prevent leaks. Ensure the radiator is mounted securely using the top and bottom headers. It is recommended to flush the cooling system before installation to remove debris and contaminants.

Quality Assurance and Warranty

TYC Radiator 2881 is manufactured to meet industry standards for durability and performance. The aluminum core construction resists corrosion and supports long service life. This radiator includes an integrated transmission oil cooler designed for reliable operation. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
