Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

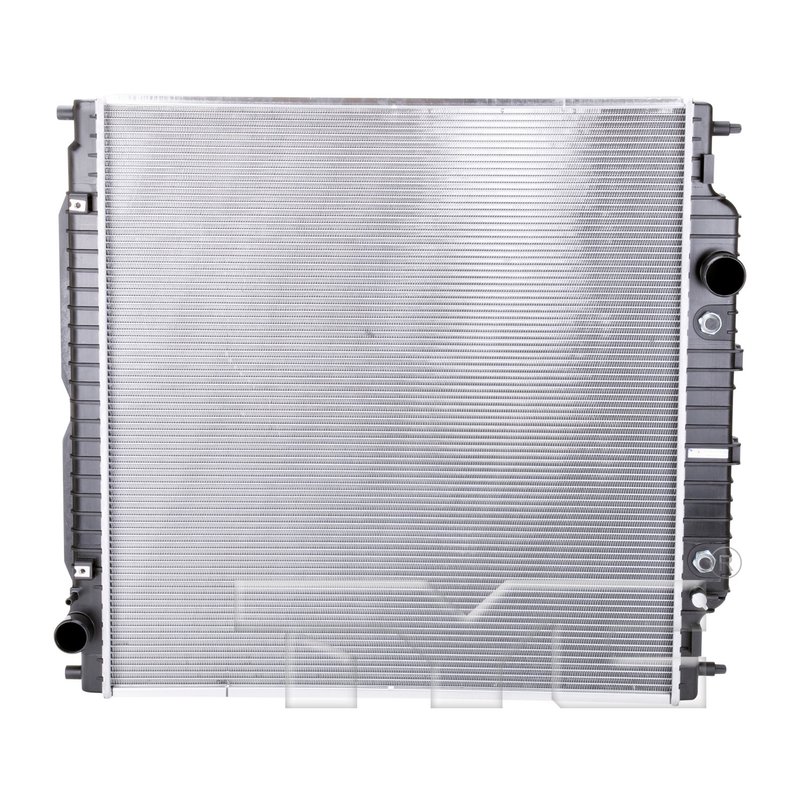

TYC 2887 Radiator
| Brand | TYC 2887 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 3.15x30.51 |
| Core Height (in) | 29.98 |
| Core Length (in) | 28.46 |
| Core Thickness (in) | 1.26 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.73 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 2.01 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 0.94 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.94 |
| Toc Outlet Type | Tube fitting |
| Top Header | 3.15x30.51 |
| Total Fin Row Count | 92 |
| Total Tube Count | 91 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Ford · 13 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Engineered for steady coolant flow through the radiator.
Cross-references APDI 8012887, CSF 2061 and DENSO 221-9407 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford Super Duty Cooling Service
The TYC Radiator 2887 is a direct-fit replacement radiator for select 2005-2007 Ford F-250 Super Duty and Ford F-350 Super Duty trucks. Built with an aluminum core and a downflow design, it includes a transmission oil cooler to support automatic transmission cooling in demanding truck use.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core layout
- Direct replacement part number 2887
- Cross-reference: Spectra Premium CU2887
Product Details
TYC Radiator 2887 is engineered around the factory-style dimensions and connection points needed for service replacement on Ford F-250 Super Duty and Ford F-350 Super Duty applications. The radiator uses an aluminum core with a 29.98-inch core height, 28.46-inch core length, and 1.26-inch core thickness. It also features a plate-style transmission oil cooler with tube-fitting connections, while the engine oil cooler is not included. For buyers searching for a Ford F-250 Super Duty radiator or Ford F-350 Super Duty radiator replacement, this unit provides the core cooling and transmission fluid cooling functions required for these trucks.
What This Radiator Helps Address
- Overheating caused by a worn or leaking radiator
- Transmission fluid temperature control issues tied to a failed cooler circuit
- Coolant loss from cracked tanks or damaged core passages
- Reduced cooling performance from clogged or corroded radiator tubes
- Service replacement needs after front-end cooling system damage
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler line connections before installation. This radiator uses hose clamp inlet and outlet connections, so inspect hoses, clamps, and sealing surfaces during service. Flush the cooling system and transmission cooler circuit as needed before installing the replacement unit. Confirm fitment for 2005-2007 Ford F-250 Super Duty and 2005-2007 Ford F-350 Super Duty applications before ordering.
Quality Assurance
TYC Radiator 2887 is built as a replacement cooling component for the listed Ford Super Duty applications and cross-references common aftermarket and OE-style part numbers, including Spectra Premium CU2887, for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | TYC Radiator |
| 2007 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | TYC Radiator |
| 2007 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | TYC Radiator |
| 2007 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | TYC Radiator |
| 2006 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | TYC Radiator |
| 2006 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | TYC Radiator |
| 2006 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | TYC Radiator |
| 2006 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | TYC Radiator |
| 2005 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | TYC Radiator |
| 2005 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | TYC Radiator |
| 2005 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | TYC Radiator |
| 2005 | Ford | F-350 Super Duty | 5.4L | V8 | N/A | TYC Radiator |
| 2005 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | TYC Radiator |
