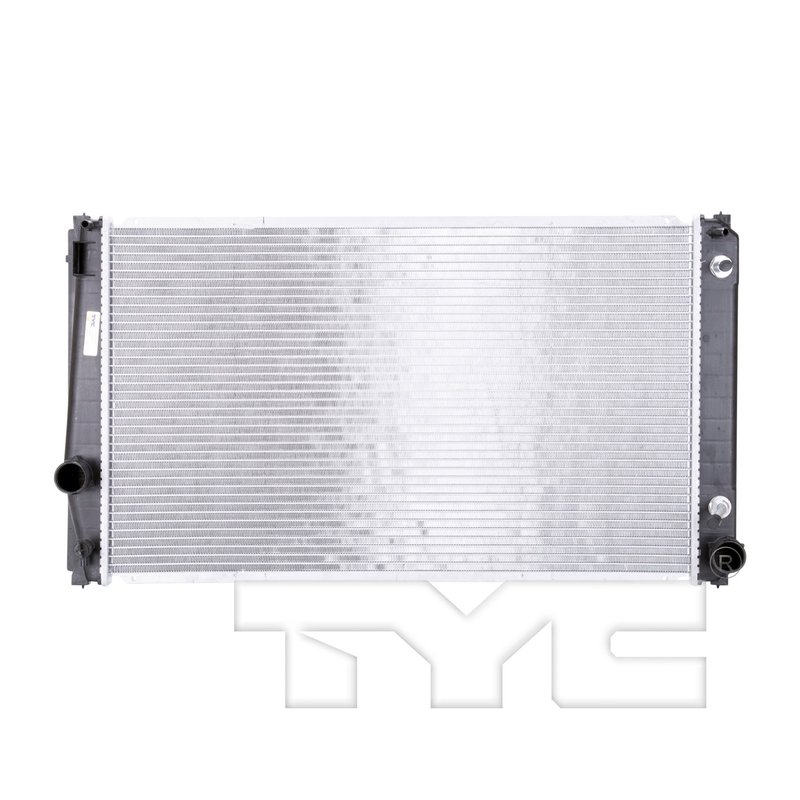

TYC 2892 Radiator
| Brand | TYC 2892 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.69x16.87 |
| Core Height (in) | 15.67 |
| Core Length (in) | 26.38 |
| Core Thickness (in) | 0.87 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.48 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.48 |
| Toc Distance (in) | 10.83 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.69x16.87 |
| Total Fin Row Count | 40 |
| Total Tube Count | 39 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 22x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 7 vehicles |
Aluminum core. Lightweight construction helps shed heat efficiently.
Crossflow design. Promotes even coolant flow through the radiator.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Cross-references APDI 8012892, CSF 3316 and DENSO 221-3162 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Toyota RAV4 Cooling Service
TYC Radiator 2892 is a direct-fit aluminum radiator for select 2006-2012 Toyota RAV4 models without the tow package. It uses a crossflow design with a single-row core and includes a transmission oil cooler, making it a practical replacement for cooling-system service on the Toyota RAV4.
Key Features
- Aluminum core construction
- Crossflow radiator design
- Transmission oil cooler included with plate oil cooler type
- Engine oil cooler not included
- Hose clamp inlet and outlet connections
- Core dimensions: 26.38 in. length, 15.67 in. height, 0.87 in. thickness
- Inlet and outlet diameter: 1.48 in.
- OE cross-reference applications include Toyota 16400-0P230 and 16400-31420
Detailed Description
Built for 2006-2012 Toyota RAV4 applications without tow package, TYC Radiator 2892 is engineered around the listed core dimensions and connection sizes for a direct replacement. The aluminum core, 39-tube layout, and 73 fins per 4 inches support efficient heat transfer, while the integrated plate-style transmission oil cooler adds transmission fluid cooling in the same assembly. If you are replacing a worn or leaking radiator on a Toyota RAV4, part number 2892 provides the fitment and cooling configuration needed for this application.
This part cross-references Toyota OE numbers 16400-0P230 and 16400-31420 for the same application.
What This Radiator Helps Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted or inefficient heat exchange
- Transmission temperature concerns tied to a failing cooler circuit
- Cracked hose connections or worn inlet and outlet fittings
- Replacement needs for a Toyota RAV4 radiator without tow package
Installation Notes and Tips
Verify vehicle fitment before installation: Fits 2006-2012 Toyota RAV4, N/A, w/o Tow Pkg. Confirm hose clamp connection size, cooler line routing, and mounting points against the original unit before removal. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation. Because this radiator includes a transmission oil cooler, check for proper cooler line sealing and inspect transmission fluid condition during service.
Quality Assurance
TYC Radiator products are built to match the listed application and dimensional specifications for replacement use. Part number 2892 is intended for the confirmed Toyota RAV4 fitment shown above and follows the specified aluminum-core, crossflow, transmission-cooler-equipped design.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2011 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2010 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2009 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2008 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2007 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
| 2006 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/o Tow Pkg; TYC Radiator |
