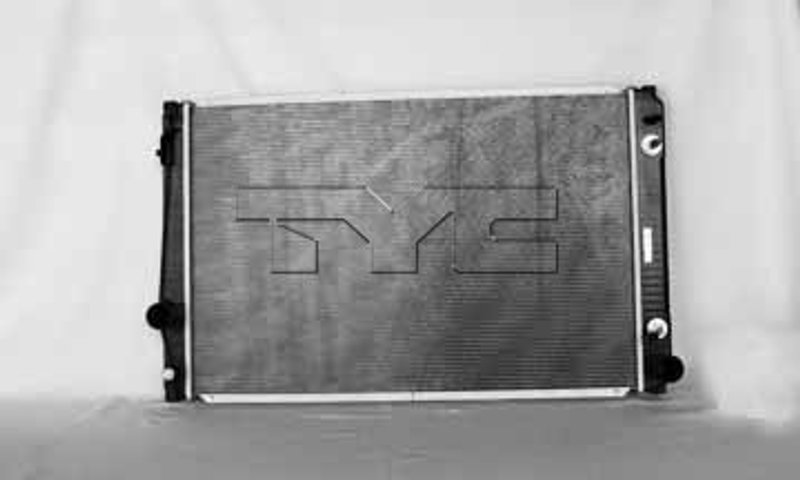

TYC 2893 Radiator
| Brand | TYC 2893 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.98x17.57 |
| Core Height (in) | 17.24 |
| Core Length (in) | 26.38 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.52 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.52 |
| Toc Distance (in) | 10.83 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.98x17.57 |
| Total Fin Row Count | 53 |
| Total Tube Count | 52 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 7 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Crossflow design. Supports steady coolant flow through a single-row radiator.
Cross-references APDI 8012893, CSF 3197 and DENSO 221-3161 for the same application. See all 8.
TYC Radiator for Toyota RAV4
The TYC Radiator 2893 is a direct-fit cooling system replacement for select 2006-2012 Toyota RAV4 models with the tow package and Japan-built configuration. Built with an aluminum core and a crossflow design, it includes an integrated transmission oil cooler for automatic transmission applications.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator design
- Integrated plate-style transmission oil cooler
- Hose clamp inlet and outlet connections
- Single-row core layout
- OE-style dimensions for fitment on select Toyota RAV4 applications
Product Details
TYC Radiator 2893 is engineered around the factory-style dimensions and connection points needed for select Toyota RAV4 cooling system service. Core measurements include 26.38 inches in length, 17.24 inches in height, and 1.02 inches in thickness, with 1.52-inch inlet and outlet diameters. The radiator also features a plate oil cooler with tube-fitting connections, making it suitable for vehicles that require transmission fluid cooling through the radiator assembly. This part cross-references Toyota 16400-31430 and Spectra Premium CU2893 for the same application.
What This Radiator Helps Address
- Overheating caused by a worn or restricted radiator core
- Transmission temperature control issues tied to a failing cooler circuit
- Coolant leaks from aging tanks, seams, or core damage
- Reduced cooling performance from corrosion or internal blockage
- Fitment concerns when replacing the original Toyota RAV4 radiator
Installation Notes and Tips
Fits 2006-2012 Toyota RAV4, N/A, with tow package and Japan-built configuration. Verify hose connection size, cooler line routing, and radiator dimensions against the original unit before installation. Flush the cooling system, inspect hoses and clamps, and confirm proper transmission cooler line attachment during replacement. TYC Radiator 2893 is intended for applications that match the listed fitment and factory-style connection layout.
Quality Assurance
TYC manufactures replacement cooling components to match OE-style specifications for dimensional accuracy and application-specific fitment. The aluminum core and integrated transmission oil cooler support a factory-style radiator replacement for select Toyota RAV4 models.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2011 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2010 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2009 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2008 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2007 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
| 2006 | Toyota | RAV4 | Automatic | 3.5L | V6 | N/A | w/ Tow Pkg; JAPAN BUILT; TYC Radiator |
