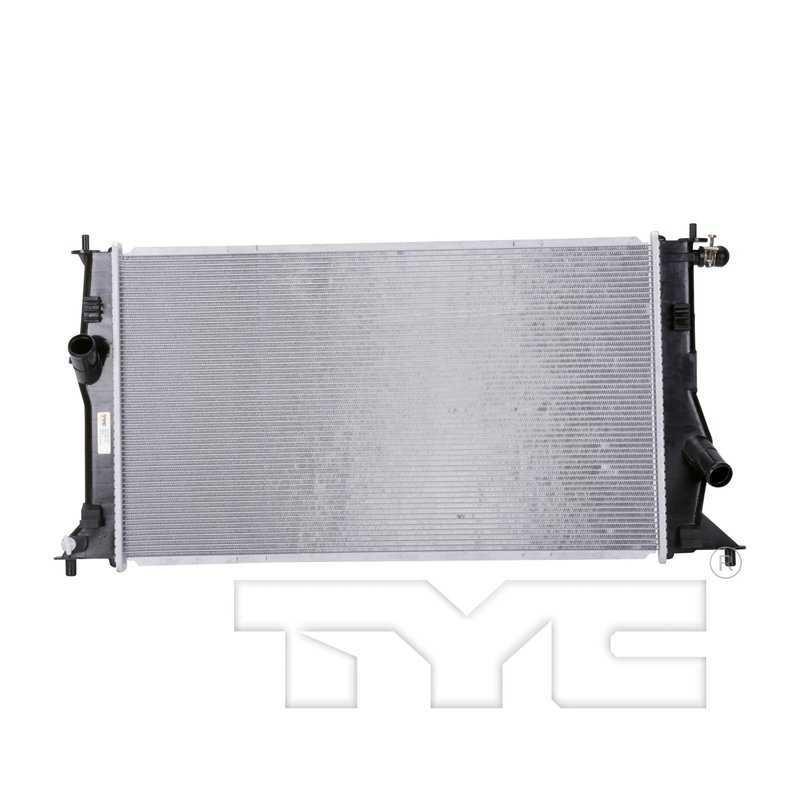

TYC 2894 Radiator - Primary
| Brand | TYC 2894 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.44x15.89 |
| Core Height (in) | 14.53 |
| Core Length (in) | 25.59 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 81 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.5 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.30 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.30 |
| Top Header | 1.72x15.89 |
| Total Fin Row Count | 57 |
| Total Tube Count | 56 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 16x1.5 |
| Product line | TYC Radiator |
| Fits | Mazda · 5 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator.
Hose clamp connections. Simplifies hose attachment for a secure fit.
Cross-references APDI 8012894, CSF 3301 and DENSO 221-3509 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 2894 Radiator for Mazda 5
TYC Radiator 2894 is a direct-fit aluminum radiator for select Mazda 5 applications. It is built with a crossflow design, hose clamp inlet and outlet connections, and a single-row core to support consistent engine cooling in daily driving conditions.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow flow configuration
- Hose clamp inlet and outlet connections
- 1.30 in. inlet and outlet diameters
- Single-row design with 56 tubes and 57 total fin rows
- Core dimensions: 25.59 in. length, 14.53 in. height, 0.63 in. thickness
- No engine oil cooler included
- No transmission oil cooler included
Product Details
TYC Radiator 2894 is engineered around the dimensions and connection style used in Mazda 5 cooling systems. The aluminum core and crossflow layout support heat dissipation, while the hose clamp fittings simplify integration with factory-style coolant hoses. This radiator cross-references APDI 8012894 and Spectra Premium CU2894 for the same application.
Compatible With 2006-2010 Mazda 5, Primary and N/A positions as listed in the fitment data. This Mazda 5 radiator application is also identified by part number 2894 for buyers comparing replacement options across catalogs.
Common Cooling System Issues
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted heat transfer
- Cracked tanks or weakened core seams
- Reduced cooling performance from age-related wear
- Fitment problems when replacing an incorrect radiator style
Installation Notes
Verify core dimensions, inlet and outlet diameter, and hose clamp connection style before installation. Inspect hoses, clamps, and coolant condition during replacement, and confirm that the radiator matches the vehicle’s factory cooling layout for the listed Mazda 5 model years.
Quality Assurance
TYC manufactures replacement cooling components with application-specific sizing and construction details to support OE-style fitment. Part number 2894 is built to match the listed Mazda 5 applications and cooling system requirements.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2010 | Mazda | 5 | Sport | Mini Passenger Van | 2.3L | L4 | Primary | TYC Radiator |
| 2009 | Mazda | 5 | — | — | 2.3L | L4 | N/A | TYC Radiator |
| 2008 | Mazda | 5 | — | — | 2.3L | L4 | N/A | TYC Radiator |
| 2007 | Mazda | 5 | — | — | 2.3L | L4 | N/A | TYC Radiator |
| 2006 | Mazda | 5 | — | — | 2.3L | L4 | N/A | TYC Radiator |
