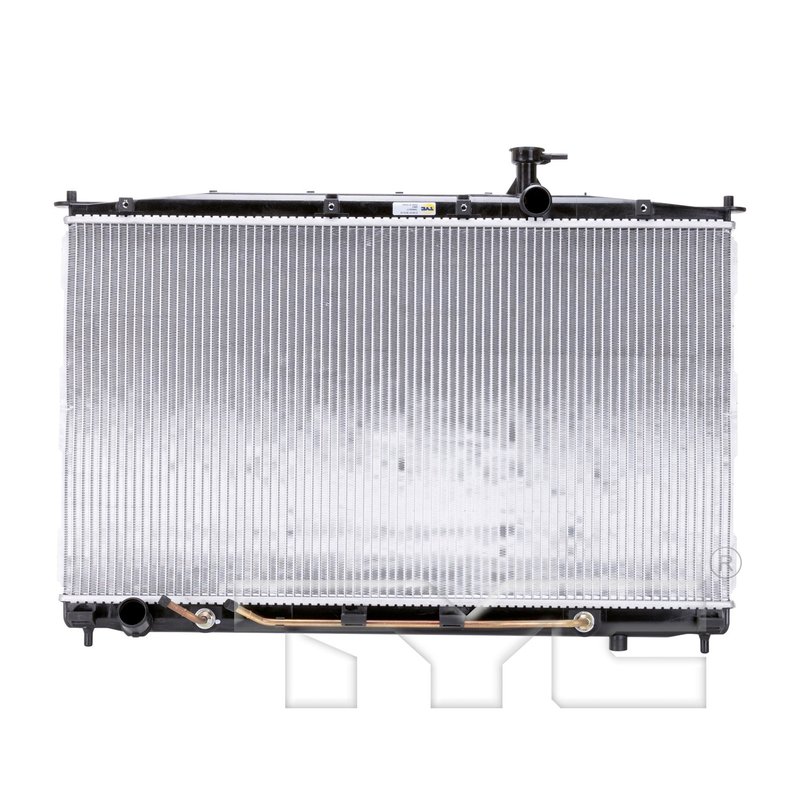

TYC 2897 Radiator
| Brand | TYC 2897 |
|---|---|
| Bottom Header | 1.96x30.96 |
| Core Height (in) | 30.63 |
| Core Length (in) | 17.13 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 17.32 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.96x30.96 |
| Total Fin Row Count | 78 |
| Total Tube Count | 77 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Hyundai · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Downflow design. Engineered for straightforward coolant flow through the radiator.
Cross-references APDI 8012897, DENSO 221-3705 and DPI (DataPoint Inc) 2997 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Hyundai Santa Fe
The TYC Radiator 2897 is a direct-fit cooling system replacement for 2007-2009 Hyundai Santa Fe models. Built with an aluminum core and a downflow design, it also includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.
TYC Radiator 2897 is engineered for the 2007-2009 Hyundai Santa Fe and matches the OE-style layout for radiator hose connections, core dimensions, and transmission cooler routing. It is a practical choice when replacing a leaking, clogged, or damaged radiator on a Hyundai Santa Fe.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included
- Concentric oil cooler configuration
- Hose clamp inlet and outlet connections
- Single-row core design
- OE-style fitment for 2007-2009 Hyundai Santa Fe
Product Details
This radiator uses a 30.63-inch core height, 17.13-inch core length, and 1.02-inch core thickness, with 1.38-inch inlet and outlet diameters. The integrated transmission oil cooler uses tube fitting connections and is built into the radiator assembly for vehicles that route transmission fluid through the cooling system. TYC Radiator 2897 cross-references DENSO 221-3705 and Spectra Premium CU2997 for the same application.
Common Replacement Reasons
- Coolant leaks from a cracked or corroded radiator
- Overheating caused by restricted coolant flow
- Transmission fluid temperature control issues tied to a failed cooler circuit
- Damaged inlet or outlet necks
- Reduced cooling performance from internal blockage or fin damage
Installation Notes
Confirm radiator dimensions, hose connection size, and transmission cooler line routing before installation. Transfer any required OE-style fittings or sensors from the original unit if your vehicle uses them. After installation, refill the cooling system with the correct coolant, bleed air from the system, and verify there are no leaks at the hose clamp and cooler connections.
Quality Assurance
TYC manufactures replacement cooling components with OE-style fit and application-specific construction. This radiator is built for direct replacement use on the listed Hyundai Santa Fe models and follows the original cooling layout for the application.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Hyundai | Santa Fe | Limited | Sport Utility | 3.3L | V6 | N/A | TYC Radiator |
| 2009 | Hyundai | Santa Fe | SE | Sport Utility | 3.3L | V6 | N/A | TYC Radiator |
| 2008 | Hyundai | Santa Fe | Limited | Sport Utility | 3.3L | V6 | N/A | TYC Radiator |
| 2008 | Hyundai | Santa Fe | SE | Sport Utility | 3.3L | V6 | N/A | TYC Radiator |
| 2007 | Hyundai | Santa Fe | Limited | Sport Utility | 3.3L | V6 | N/A | TYC Radiator |
| 2007 | Hyundai | Santa Fe | SE | Sport Utility | 3.3L | V6 | N/A | TYC Radiator |
