Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

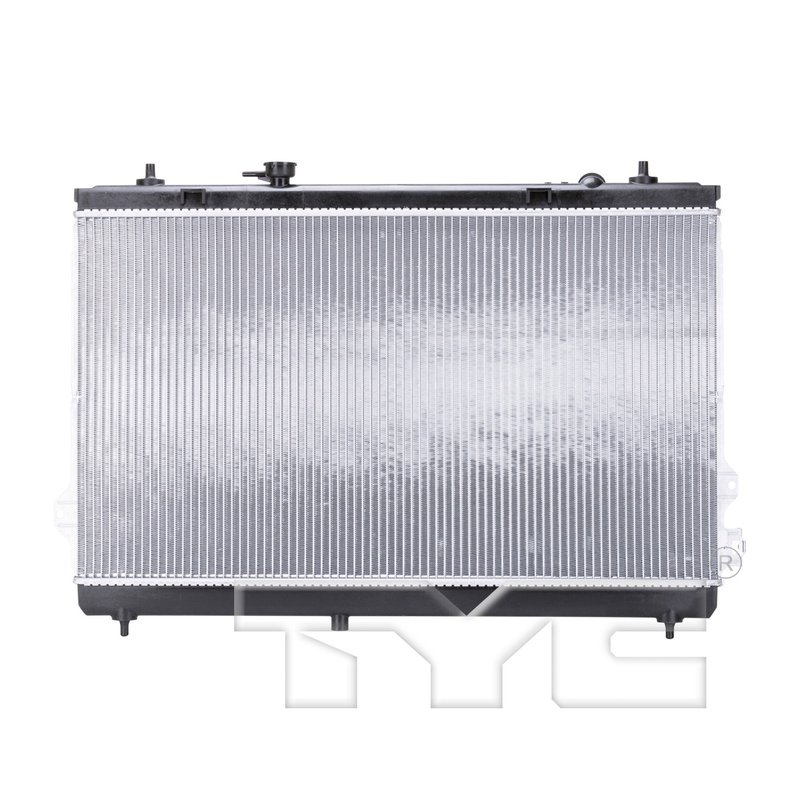

TYC 2898 Radiator
| Brand | TYC 2898 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.96x30.96 |
| Core Height (in) | 30.63 |
| Core Length (in) | 17.32 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 17.32 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.96x30.96 |
| Total Fin Row Count | 78 |
| Total Tube Count | 77 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Hyundai and Kia · 9 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Supports steady coolant flow through the radiator core.
Cross-references APDI 8012898, CSF 2339 and DENSO 221-9141 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator 2898 for Hyundai Entourage and Kia Sedona
TYC Radiator 2898 is a direct-fit radiator for select Hyundai and Kia minivans with automatic transmission cooling integration. Built with an aluminum core and a downflow design, it supports engine cooling while also incorporating a concentric transmission oil cooler for the listed applications.
Key Features
- Aluminum core construction
- Downflow flow configuration
- Transmission oil cooler included with concentric oil cooler design
- Single-row core layout
- Hose clamp inlet and outlet connections
- Core dimensions: 30.63 in height, 17.32 in length, 1.02 in thickness
- Fits Hyundai Entourage and Kia Sedona applications listed below
Product Details
This TYC Radiator 2898 is engineered for vehicles that require both engine coolant circulation and transmission fluid heat exchange in one assembly. The radiator uses an aluminum core with a 26 x 2 tube width and a downflow configuration, along with 1.38 in hose clamp inlet and outlet connections. The integrated transmission oil cooler uses tube fitting connections and is specified for the applications shown, making this radiator a practical replacement for vehicles that rely on a combined cooling setup.
TYC Radiator 2898 cross-references OE and aftermarket numbers including DENSO 221-9141 and Spectra Premium CU2898 for the same application. It also aligns with Hyundai 25310-4D901 and Kia 25310-4D902 reference numbers.
Vehicle Fitment
- Fits 2007-2010 Hyundai Entourage, N/A
- Fits 2006-2010 Kia Sedona, N/A
Common Replacement Reasons
- Leaking radiator core or tank seam
- Restricted coolant flow from internal blockage
- Transmission cooler circuit concerns in radiator-equipped systems
- Overheating caused by reduced heat transfer
- Corrosion or age-related deterioration of the original radiator
Installation Notes
Verify inlet and outlet diameters, core dimensions, and transmission cooler connection style before installation. Confirm that the vehicle uses the listed downflow radiator layout and concentric transmission oil cooler arrangement. Flush the cooling system, inspect hoses and clamps, and check for proper coolant and transmission fluid routing after installation.
Quality Assurance
TYC Radiator 2898 is built to match the listed fitment and dimensional specifications for the covered Hyundai Entourage and Kia Sedona applications. Review all vehicle details against the original radiator before ordering to confirm correct application.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Hyundai | Entourage | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2010 | Kia | Sedona | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2009 | Hyundai | Entourage | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2009 | Kia | Sedona | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2008 | Hyundai | Entourage | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2008 | Kia | Sedona | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2007 | Hyundai | Entourage | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2007 | Kia | Sedona | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2006 | Kia | Sedona | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| No rows match your filter. | |||||||
