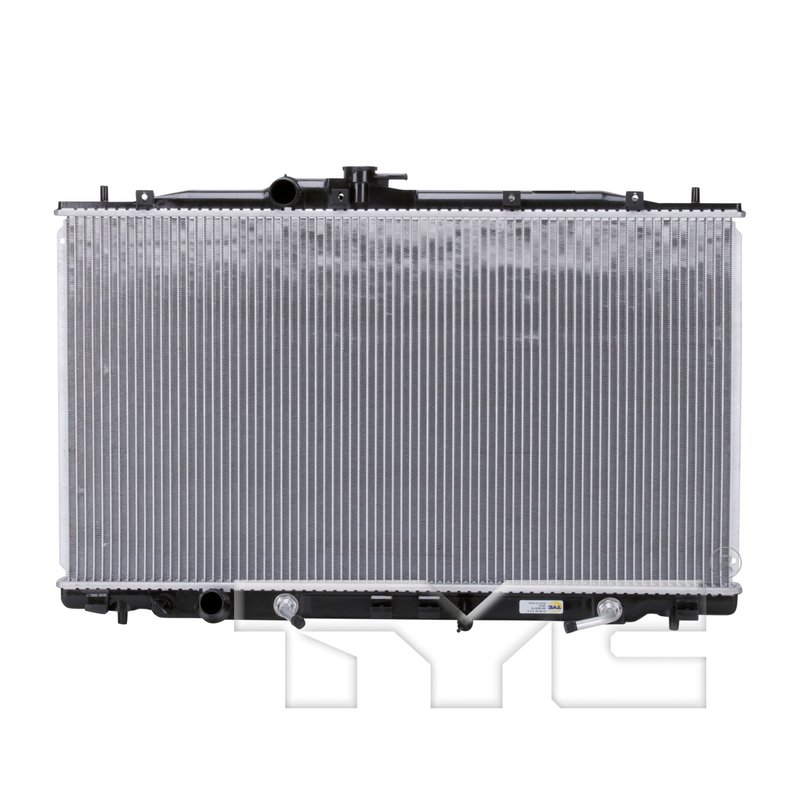

TYC 2916 Radiator - Primary

Overview of TYC Radiator 2916 for Acura RDX

The TYC Radiator 2916 is engineered specifically for the Acura RDX, providing reliable cooling performance with integrated transmission oil cooling. Designed with durable aluminum core material, this radiator supports efficient heat dissipation and vehicle operation under various driving conditions.

• Core material constructed from aluminum for effective heat transfer
• Includes a plate-type transmission oil cooler for enhanced transmission temperature management
• Downflow flow configuration optimized for Acura RDX cooling system
• Core dimensions: 30.24 inches height, 16.73 inches length, and 1.02 inches thickness
• Single-row tube design with 76 total tubes and 85 fins per 4 inches for improved airflow
• Hose clamp inlet and quick connect (spring lock) outlet connections with 1.28-inch diameters
• Top and bottom headers sized at 2.02 by 31.39 inches

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line emphasizes durable construction and precise fitment, ensuring compatibility with specific vehicle models such as the Acura RDX. The TYC Radiator 2916 exemplifies this approach by integrating a transmission oil cooler and using aluminum core material to maintain optimal engine and transmission temperatures.

Technical Description and Features

This radiator features a downflow design that directs coolant downward through a single row of 76 tubes, each measuring 26 by 2 inches, supported by 85 fins every 4 inches to maximize heat exchange. The aluminum core enhances thermal conductivity while maintaining structural integrity. The integrated plate-type transmission oil cooler uses tube fittings with 0.39-inch inlet and outlet diameters to efficiently manage transmission fluid temperature. The radiator’s inlet and outlet connections are designed for secure attachment, with a hose clamp inlet and a quick connect spring lock outlet, both sized at 1.28 inches in diameter. The headers measure 2.02 by 31.39 inches, providing a robust frame for the core assembly.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Acura RDX models
• Addresses overheating issues caused by inefficient cooling systems
• Improves transmission fluid cooling with integrated plate oil cooler
• Restores proper coolant flow and heat dissipation
• Prevents engine damage due to excessive operating temperatures

Installation Notes and Tips

Ensure compatibility with your Acura RDX before installation by verifying part number 2916. The radiator features standard hose clamp and quick connect fittings for inlet and outlet connections, facilitating straightforward installation. Care should be taken to properly secure all connections and check for leaks after installation. It is recommended to flush the cooling system prior to installing the new radiator to remove any debris or contaminants.

Quality Assurance and Warranty

TYC Radiator 2916 is manufactured to meet OEM standards, using high-quality aluminum core material and precise construction methods. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure durability and performance in automotive cooling applications.
