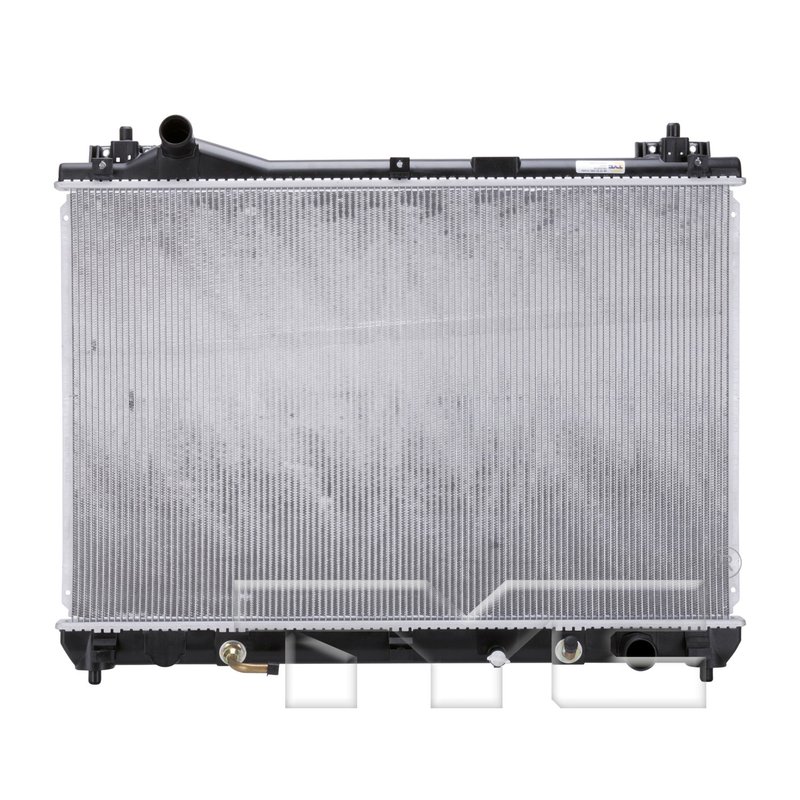

TYC 2920 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 2920 Radiator

Brand TYC 2920
Core Material Aluminum
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric oil cooler
Engine Oil Cooler Included No
Accessories Included Pipe m14*p1.0*2
Bottom Header 2.02x28.32
Core Height (in) 27.07
Core Length (in) 17.72
Core Thickness (in) 0.63
Fin Count (every 4") 78
Fin Wave Height (in) 0.20
Find Wave Pitch 2.6
Flow Configuration Downflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.34
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.36
Toc Distance (in) 13.78
Toc Inlet Diameter (in) 0.39
Toc Inlet Type Tube fitting
Toc Outlet Diameter (in) 0.39
Toc Outlet Type Tube fitting
Top Header 2.02x28.32
Total Fin Row Count 106
Total Tube Count 105
Tube Count (every 4") 16
Tube Width X Height 16x1.5
Product line TYC Radiator
Fits Suzuki · 8 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Concentric oil cooler. Built with an integrated transmission oil cooler for added cooling capacity.

Downflow design. Supports steady coolant flow through the radiator.

Cross-references APDI 8012920, CSF 3443 and DENSO 221-9410 for the same application. See all 8.

$152.42Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $152.42
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator 2920 for Suzuki Grand Vitara

TYC Radiator 2920 is a direct-fit radiator for the 2006-2010 Suzuki Grand Vitara. It combines an aluminum core with an integrated concentric transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one assembly.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Downflow design with one-row core layout
  • Transmission oil cooler included with concentric oil cooler design
  • Hose clamp inlet and outlet connections for the radiator hoses
  • Includes pipe M14*P1.0*2 accessory
  • Core dimensions: 27.07 in. height, 17.72 in. length, 0.63 in. thickness
  • Fits 2006-2010 Suzuki Grand Vitara applications

Detailed Description

Built for the Suzuki Grand Vitara cooling system, TYC 2920 is engineered around the listed OE-style dimensions and connection points for a straightforward radiator replacement. The aluminum core, 105 total tubes, and 106 total fin rows support heat dissipation, while the integrated transmission oil cooler helps manage fluid temperature in vehicles equipped with automatic transmission cooling through the radiator. This TYC Radiator 2920 is a practical choice when replacing a leaking, clogged, or damaged radiator on a 2006-2010 Suzuki Grand Vitara.

This part cross-references DENSO 221-9410 and Spectra Premium CU2920 for the same application.

Common Reasons for Replacement

  • Coolant leaks from a cracked or corroded radiator tank or core
  • Overheating caused by restricted coolant flow or reduced heat transfer
  • Transmission fluid temperature concerns related to a failing cooler circuit
  • Physical damage to the radiator from road debris or impact
  • Cooling system service on a 2006-2010 Suzuki Grand Vitara

Installation Notes and Tips

Verify hose diameter, cooler line routing, and mounting dimensions before installation. Flush the cooling system, inspect hoses and clamps, and confirm the transmission cooler connections are clean and properly seated. After installation, refill with the correct coolant mixture and bleed air from the system according to vehicle service procedures.

Quality Assurance

TYC Radiator 2920 is built to match the listed fitment and dimensional specifications for the 2006-2010 Suzuki Grand Vitara. The part number 2920 is also referenced by multiple aftermarket and OE cross-references, including Suzuki 17700-66J10.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
2010SuzukiGrand Vitara—3.2LV6N/ATYC Radiator
2009SuzukiGrand Vitara—3.2LV6N/ATYC Radiator
2008SuzukiGrand VitaraAutomatic2.7LV6N/ATYC Radiator
2008SuzukiGrand VitaraManual2.7LV6N/ATYC Radiator
2007SuzukiGrand VitaraAutomatic2.7LV6N/ATYC Radiator
2007SuzukiGrand VitaraManual2.7LV6N/ATYC Radiator
2006SuzukiGrand VitaraManual2.7LV6N/ATYC Radiator
2006SuzukiGrand VitaraAutomatic2.7LV6N/ATYC Radiator
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8012920CSF — 3443DENSO — 221-9410Partslink — SZ3010139Silla Cooling — 7474Spectra Premium — CU2920Suzuki — 17700-66J10Vista Pro — 434034
