TYC 2923 Radiator

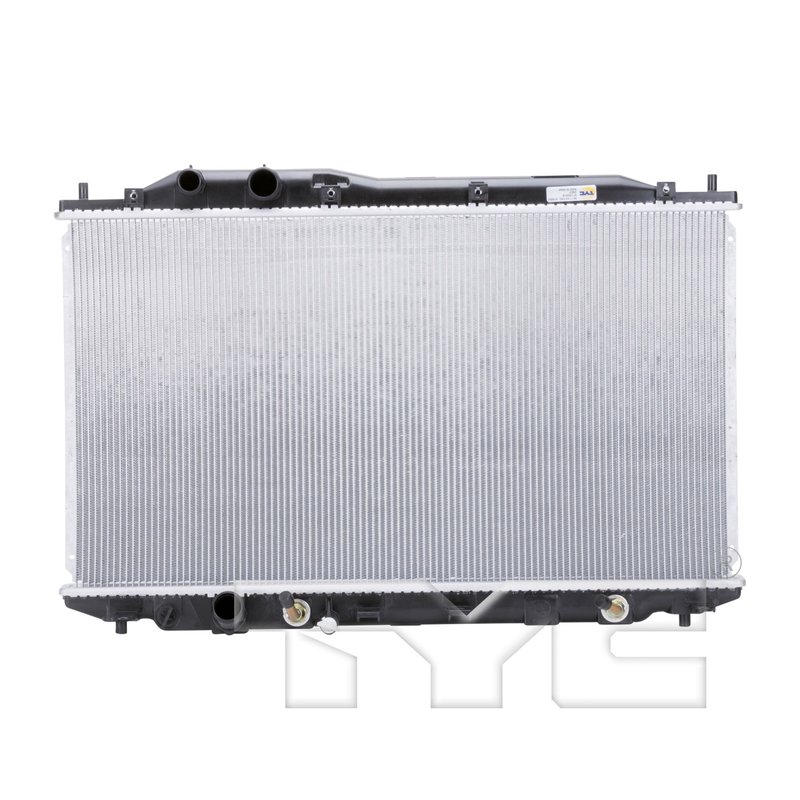

Overview of TYC Radiator 2923 for Honda Civic

The TYC Radiator 2923 is designed specifically for Honda Civic models, providing reliable cooling performance with integrated transmission oil cooling. Constructed with an aluminum core, this radiator supports efficient heat dissipation and engine temperature regulation.

• Core material: durable aluminum for effective heat transfer
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Downflow design with 1-row core configuration
• Core dimensions: 26.3 inches height, 14.76 inches length, 0.63 inches thickness
• Inlet and outlet hose clamp connections with 1.26-inch diameter
• High fin density: 81 fins per 4 inches and total 103 fin rows
• Tube count: 102 tubes with 16 tubes per 4 inches, measuring 16x1.5 inches
• Top and bottom headers sized 2.03x27.62 inches

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This line emphasizes durable aluminum cores and integrated transmission oil coolers where applicable, such as in part number 2923. The design supports efficient engine and transmission temperature management, making it suitable for vehicles like the Honda Civic that require reliable cooling solutions.

Technical Description and Features

This radiator features a downflow flow configuration, which directs coolant downward through the core for consistent heat exchange. The aluminum core measures 26.3 inches in height, 14.76 inches in length, and 0.63 inches in thickness, providing a balance of cooling surface area and compact size. The radiator includes a concentric transmission oil cooler with tube fittings sized at 0.39 inches for both inlet and outlet, enhancing transmission fluid cooling without the need for a separate cooler.

The fin design includes 81 fins every 4 inches with a fin wave height of 0.20 inches and a pitch of 2.5, contributing to effective airflow and heat dissipation. The radiator has a single row of tubes, totaling 102 tubes, each measuring 16 by 1.5 inches, which supports efficient coolant flow. Hose clamp connections on both inlet and outlet ports, each with a diameter of 1.26 inches, ensure secure and leak-resistant hose attachment.

Applications and Problem Solving

• Compatible with Honda Civic models requiring OEM-style radiator replacement
• Addresses overheating issues caused by radiator core damage or clogging
• Improves transmission cooling with integrated concentric oil cooler
• Resolves coolant leaks from worn or corroded radiator components
• Supports engine temperature regulation for consistent vehicle performance

Installation Notes and Tips

When installing the TYC Radiator 2923, ensure all hose clamps are securely tightened to prevent leaks. Verify that the transmission oil cooler connections are properly fitted using the tube fittings provided. It is recommended to flush the cooling system before installation to remove debris and contaminants. Check for proper alignment of the radiator headers and confirm that the downflow configuration matches the vehicle’s cooling system design.

Quality Assurance and Warranty

TYC Radiator 2923 is manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. While specific warranty details are not provided, TYC products typically adhere to strict quality control processes to ensure reliability in automotive cooling applications.
