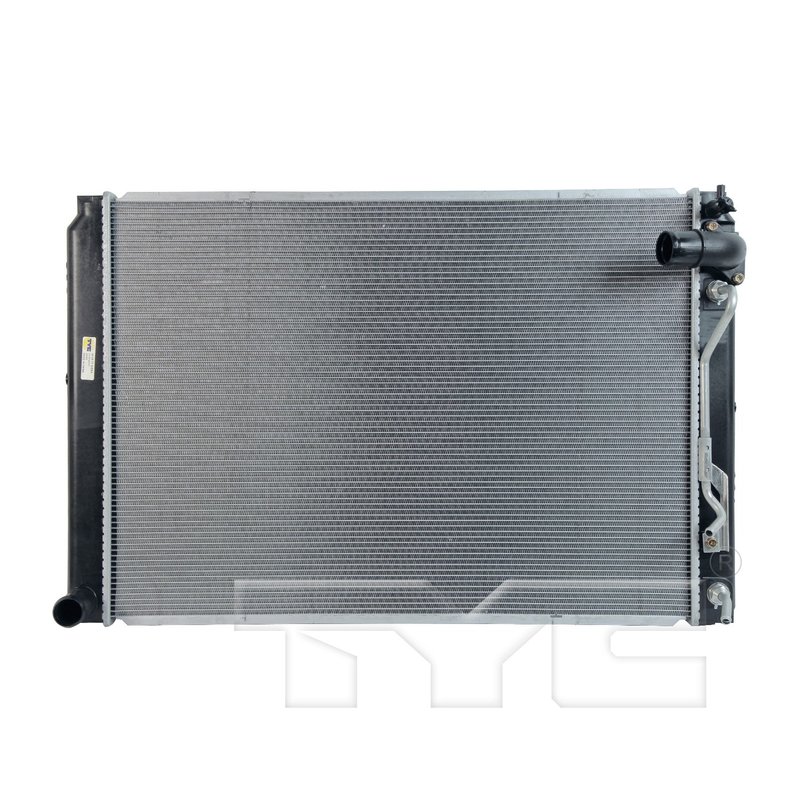

TYC 2925 Radiator
| Brand | TYC 2925 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.72x20.02 |
| Core Height (in) | 19.13 |
| Core Length (in) | 26.57 |
| Core Thickness (in) | 0.87 |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.52 |
| Toc Distance (in) | 13.78 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.72x20.02 |
| Total Fin Row Count | 75 |
| Total Tube Count | 74 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 22x1.5 |
| Product line | TYC Radiator |
| Fits | Toyota · 1 vehicle |
Aluminum core. Lightweight construction helps transfer heat efficiently.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Crossflow design. Promotes even coolant flow through the radiator.
Cross-references APDI 8012925, CSF 2329 and DENSO 221-0520 for the same application. See all 10.
TYC Radiator for Toyota Sienna
The TYC Radiator 2925 is a direct-fit cooling replacement for the 2006 Toyota Sienna, from 09/2006. Built with an aluminum core and a crossflow design, it includes a transmission oil cooler with a plate-style cooler layout for integrated cooling support. This TYC Radiator 2925 is a practical choice for restoring proper engine temperature control in a Toyota Sienna radiator replacement.
Key Features
- Aluminum core construction
- Crossflow flow configuration
- Transmission oil cooler included
- Plate oil cooler type
- Single-row core design
- Hose clamp inlet and outlet connections
- Fits 2006 Toyota Sienna, from 09/2006
- Cross-reference: Toyota 16041-0A380
Product Details
TYC Radiator 2925 is built around a 19.13-inch core height, 26.57-inch core length, and 0.87-inch core thickness, with a 22 x 1.5 tube width and height. The radiator uses an aluminum core for efficient heat transfer and a crossflow layout to support consistent coolant circulation. It also includes a transmission oil cooler with tube-fitting inlet and outlet connections, making it suitable for vehicles that route automatic transmission fluid through the radiator assembly. For shoppers searching for a 2006 Toyota Sienna radiator or a TYC 2925 radiator replacement, this unit matches the listed application and OE cross-reference.
Common Issues This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted heat dissipation
- Transmission fluid temperature concerns tied to a failing cooler circuit
- Cracked hose connections or worn inlet and outlet fittings
- Poor cooling performance from an aging factory radiator
Installation Notes and Tips
Verify the vehicle build date before ordering, since this radiator fits the 2006 Toyota Sienna from 09/2006. Confirm hose clamp connection sizes, transmission cooler line routing, and overall core dimensions against the original unit before installation. Flush the cooling system, inspect hoses and clamps, and check for leaks after installation to confirm proper operation.
Quality Assurance
TYC is a recognized aftermarket brand for replacement cooling components, and this radiator is built to match the listed application and interchange references for the Toyota Sienna. Use the OE cross-reference and dimensional data to confirm fitment before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Sienna | 3.3L | V6 | N/A | From 09/2006; TYC Radiator |
