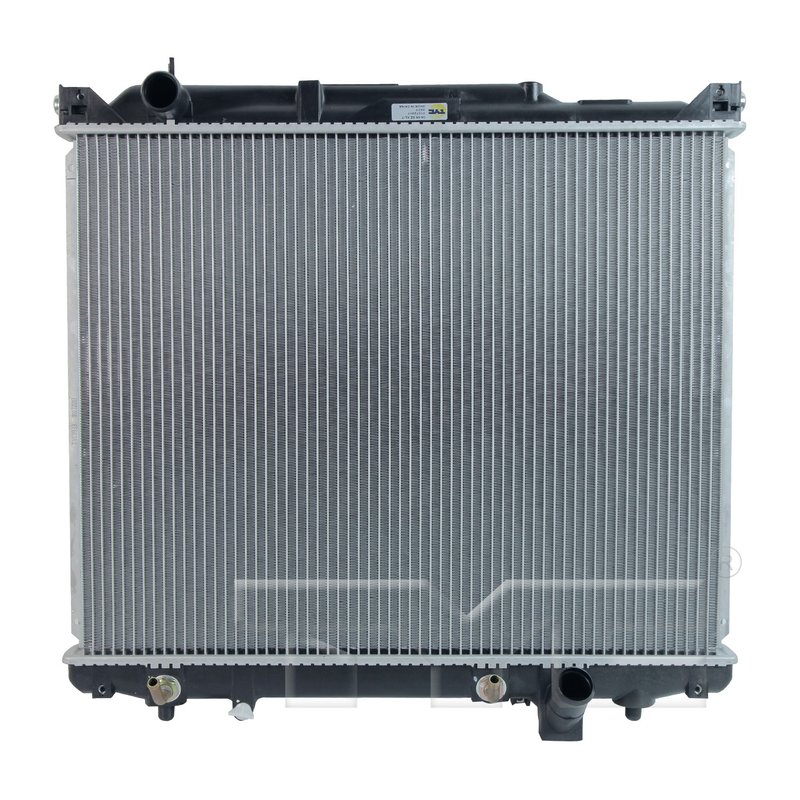

TYC 2933 Radiator
| Brand | TYC 2933 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.02x24.54 |
| Core Height (in) | 23.11 |
| Core Length (in) | 18.7 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.30 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 11.81 |
| Top Header | 2.02x24.54 |
| Total Fin Row Count | 62 |
| Total Tube Count | 61 |
| Tube Count (every 4") | 11 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Suzuki · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler included. Adds transmission fluid cooling in one integrated unit.
Downflow design. Supports steady coolant flow through a single-row radiator.
Cross-references APDI 8012933, CSF 2683 and DENSO 221-9411 for the same application. See all 7.
TYC Radiator for Suzuki XL-7
The TYC Radiator 2933 is a direct-fit cooling replacement for 2004-2006 Suzuki XL-7 models. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one unit.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Core dimensions: 23.11 in. height, 18.7 in. length, 1.02 in. thickness
- Fits 2004-2006 Suzuki XL-7 applications
- TYC Radiator 2933 cross-references OE and aftermarket numbers for the same application
Detailed Description
TYC Radiator 2933 is engineered for the 2004-2006 Suzuki XL-7 and matches the vehicle’s cooling system layout with a downflow configuration, aluminum core, and integrated concentric transmission oil cooler. The radiator uses hose clamp inlet and outlet connections and is built around a single-row core design with 61 tubes and 62 total fin rows for consistent coolant flow and heat dissipation. This part number, 2933, is also referenced by Suzuki 17700-52D31 and other interchange numbers for the same fitment.
TYC Radiator is the product line designation for TYC cooling components, and this radiator follows that OE-style application focus for the Suzuki XL-7 platform. If you are replacing a leaking, clogged, or damaged radiator on a 2004-2006 Suzuki XL-7, part number 2933 provides the correct fitment profile for the listed vehicle range.
What This Radiator Helps Address
- Coolant leaks from a cracked or corroded radiator
- Overheating caused by restricted coolant flow
- Transmission fluid temperature issues related to a failed cooler circuit
- Reduced cooling performance from damaged fins or tubes
- Replacement needs after impact damage to the front cooling stack
Installation Notes and Tips
Verify hose diameter, mounting layout, and transmission cooler line routing before installation. Flush the cooling system and inspect hoses, clamps, and the thermostat when replacing the radiator. Confirm the vehicle is a 2004-2006 Suzuki XL-7 before ordering, and match the radiator connections to the original unit.
Quality Assurance
TYC manufactures cooling components for direct replacement use, and this radiator is built to match the listed application details for the Suzuki XL-7. Confirm fitment by year, make, model, and cooling connection style before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Suzuki | XL-7 | 2.7L | V6 | N/A | TYC Radiator |
| 2005 | Suzuki | XL-7 | 2.7L | V6 | N/A | TYC Radiator |
| 2004 | Suzuki | XL-7 | 2.7L | V6 | N/A | TYC Radiator |
