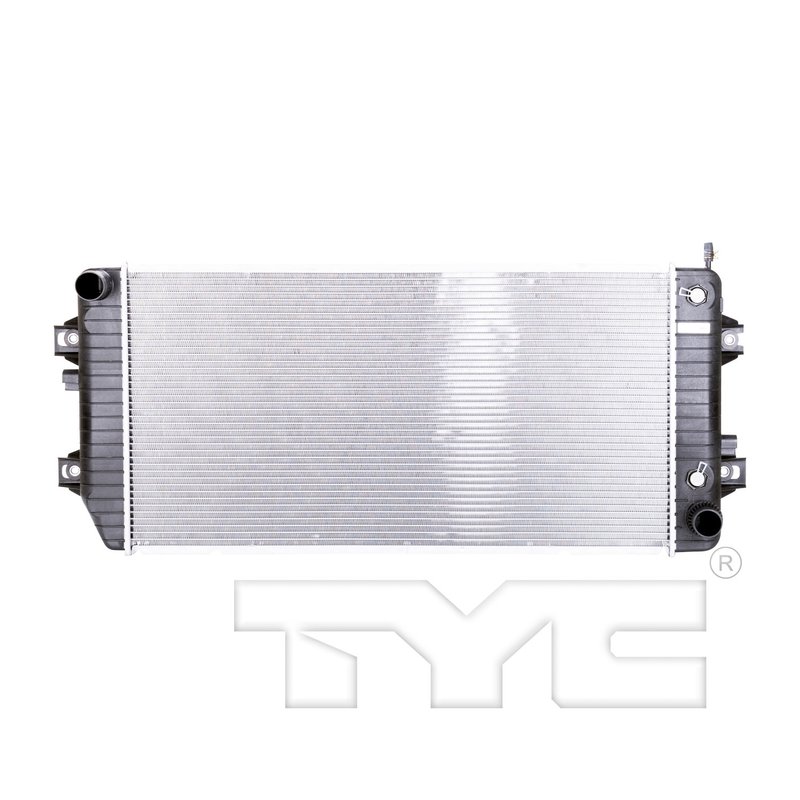

TYC 2935 Radiator

Overview of TYC Radiator 2935 for Chevrolet and GMC Vans

The TYC Radiator 2935 is engineered to provide reliable cooling performance for Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation under demanding conditions.

• Core Material: Aluminum for effective heat dissipation
• Includes Plate Type Transmission Oil Cooler
• Core Dimensions: 17.24" height x 33.98" length x 2.2" thickness
• Crossflow design with 64 fins per 4 inches and 40 total fin rows
• Inlet and outlet connections: Hose clamp inlet (1.83" diameter), quick connect outlet (1.83" diameter)
• Single row tube configuration with 39 tubes total
• Compatible with Chevrolet Express 2500/3500 and GMC Savana 2500/3500

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line emphasizes durable aluminum cores and integrated transmission oil coolers where applicable, ensuring compatibility and performance for specific vehicle applications. The TYC Radiator 2935 exemplifies this approach by combining a robust aluminum core with a plate-type transmission oil cooler designed for Chevrolet and GMC full-size vans.

Technical Description and Features

This radiator features a crossflow flow configuration that optimizes coolant circulation and heat exchange. The aluminum core measures 17.24 inches in height, 33.98 inches in length, and 2.2 inches in thickness, providing a substantial surface area for heat dissipation. The fin count is 64 per 4 inches with a fin wave height of 0.35 inches and a fin wave pitch of 3.2 inches, contributing to efficient airflow and cooling capacity.

The radiator includes a plate-type transmission oil cooler with quick connect inlet and outlet fittings (0.37 inch diameter), facilitating easy integration with the vehicle’s transmission cooling system. The inlet connection uses a hose clamp type with a diameter of 1.83 inches, while the outlet connection is a quick connect spring lock type, also 1.83 inches in diameter. Both the top and bottom headers measure 3.18 by 18.48 inches, supporting structural integrity and fitment.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Chevrolet Express 2500 and 3500 vans
• Restores proper engine cooling to prevent overheating during heavy-duty use
• Supports transmission cooling to avoid transmission overheating and failure
• Addresses reduced cooling efficiency caused by clogged or damaged radiator cores
• Provides a direct fit replacement for GMC Savana 2500 and 3500 models

Installation Notes and Tips

Ensure compatibility with your specific Chevrolet Express or GMC Savana model before installation. The radiator’s quick connect fittings simplify transmission oil cooler connections, but verify all hose clamps and connections are secure to prevent leaks. Properly bleed the cooling system after installation to remove air pockets and maintain optimal cooling performance.

Quality Assurance and Warranty

TYC Radiator 2935 is manufactured to meet OEM standards using high-quality aluminum core materials and precise construction methods. While specific warranty details are not provided, TYC products typically adhere to industry quality controls to ensure durability and reliable performance in Chevrolet and GMC full-size vans.
