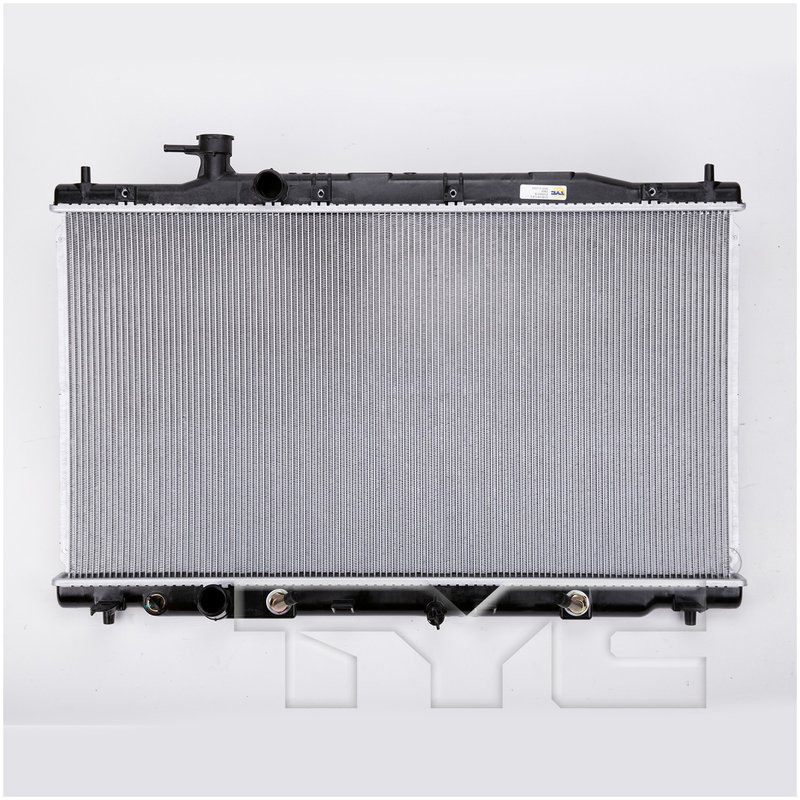

TYC 2954 Radiator
| Brand | TYC 2954 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Accessories Included | Pipe m14*p1.0*2 |
| Bottom Header | 2.02x29.88 |
| Core Height (in) | 28.6 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.20 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.26 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.26 |
| Toc Distance (in) | 12.80 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.41x29.88 |
| Total Fin Row Count | 112 |
| Total Tube Count | 111 |
| Tube Count (every 4") | 16 |
| Tube Width X Height | 16x1.5 |
| Product line | TYC Radiator |
| Fits | Honda · 3 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Engineered for smooth coolant flow through the radiator.
Cross-references APDI 8012954, CSF 2153 and DENSO 221-3235 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Honda CR-V
Restore proper engine cooling with this TYC radiator, part number 2954, built for the 2007-2009 Honda CR-V Japan-built application. It features an aluminum core, a downflow design, and an integrated concentric transmission oil cooler for direct replacement service on the specified vehicle fitment.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Integrated transmission oil cooler included
- Concentric oil cooler type with tube-fitting connections
- Hose clamp inlet and outlet connections, 1.26 in. diameter
- Engine oil cooler not included
- Includes pipe M14*P1.0*2 accessory
- TYC Radiator line replacement part number 2954
Detailed Description
TYC 2954 is a radiator assembly engineered for the 2007-2009 Honda CR-V, Japan built, with fitment matched to the listed application. The radiator uses an aluminum core with a single-row layout, downflow flow configuration, and a concentric transmission oil cooler to support automatic transmission fluid cooling through the radiator assembly. Core dimensions measure 28.6 in. high, 15.75 in. long, and 0.63 in. thick, with hose clamp inlet and outlet connections for the cooling system. This part cross-references APDI 8012954 and Spectra Premium CU2954 for the same application.
What This Radiator Helps Address
- Overheating caused by a leaking or restricted radiator
- Transmission fluid temperature issues tied to a failed cooler circuit
- Coolant loss from cracked or corroded radiator components
- Poor heat exchange from damaged internal tubes or fins
- Cooling system service needs on a Honda CR-V radiator replacement
Installation Notes and Tips
Fits 2007-2009 Honda CR-V, N/A, Japan built. Verify the vehicle is the Japan-built configuration before installation and compare inlet, outlet, and transmission cooler connections to the original radiator. Confirm hose clamp fitment, cooler line routing, and accessory port/thread specifications before final assembly. Part number 2954 should be matched against the original unit and vehicle build details to ensure correct application.
Quality Assurance
TYC Radiator replacement parts are built to match the listed application details and OE-style connection layout for service replacement use. Part number 2954 is cataloged with interchange references including Honda 19010-RZA-A51, DENSO 221-3235, and TYC HD37043A.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Honda | CR-V | Automatic | 2.4L | L4 | N/A | JAPAN BUILT; TYC Radiator |
| 2008 | Honda | CR-V | Automatic | 2.4L | L4 | N/A | JAPAN BUILT; TYC Radiator |
| 2007 | Honda | CR-V | Automatic | 2.4L | L4 | N/A | JAPAN BUILT; TYC Radiator |
| No rows match your filter. | |||||||
