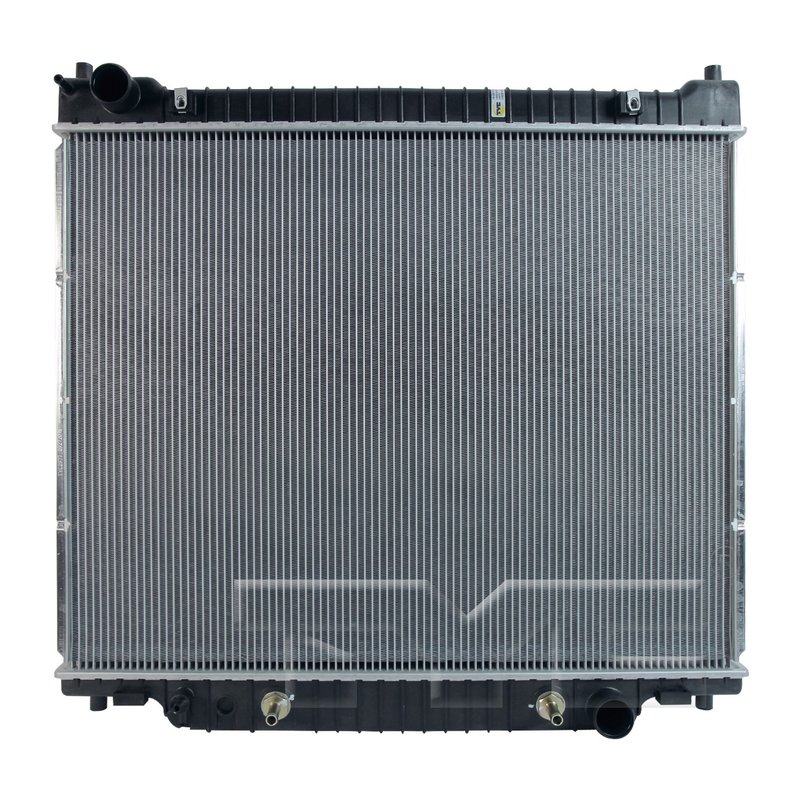

TYC 2977 Radiator - Primary

Overview of the TYC Radiator 2977 for Ford E-Series

The TYC Radiator 2977 is engineered to provide reliable cooling performance for Ford E-150, E-150 Econoline, E-250, E-350 Econoline, and E-350 Super Duty models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine temperature management under demanding conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Downflow flow configuration optimized for Ford E-Series vehicles
• Core dimensions: 29.33 inches height, 23.62 inches length, and 1.42 inches thickness
• Inlet and outlet hose clamp connections with 1.77-inch diameter
• Single-row tube design with 89 total tubes and 90 fin rows for improved airflow
• Compatible with Ford E-150, E-150 Econoline, E-250, E-350 Econoline, and E-350 Super Duty

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering dependable cooling solutions tailored to specific vehicle applications. The TYC Radiator 2977 exemplifies this approach by combining a robust aluminum core with an integrated plate oil cooler, ensuring both engine and transmission temperatures are effectively managed. This product line emphasizes precise fitment and quality materials to meet OEM standards for Ford E-Series vans and trucks.

Technical Description and Features

This radiator features a downflow design with a core height of 29.33 inches, length of 23.62 inches, and thickness of 1.42 inches, providing a balance of cooling surface area and compactness. The aluminum core enhances heat transfer efficiency while maintaining durability. The radiator includes a plate-type transmission oil cooler with tube fitting inlet and outlet connections measuring 0.5 inches in diameter, supporting transmission fluid temperature regulation. Hose clamp inlet and outlet connections with 1.77-inch diameters ensure secure attachment to the vehicle’s cooling system. The single-row tube configuration with 89 tubes and 90 fin rows, including 78 fins every 4 inches, optimizes airflow and heat dissipation for the Ford E-150 and E-350 models.

Applications and Problem Solving

• Replaces worn or leaking radiators in Ford E-150, E-150 Econoline, E-250, E-350 Econoline, and E-350 Super Duty vehicles
• Addresses overheating issues caused by inefficient cooling or damaged radiator cores
• Improves transmission cooling with integrated plate oil cooler to prevent transmission overheating
• Resolves coolant leaks from corroded or cracked radiator components
• Supports engine performance by maintaining optimal operating temperatures

Installation Notes and Tips

Ensure compatibility with your specific Ford E-Series model before installation. The radiator uses hose clamp connections for both inlet and outlet hoses, which require proper tightening to prevent leaks. The transmission oil cooler connections utilize tube fittings; verify secure attachment to transmission lines. Handle the aluminum core carefully to avoid damage during installation. It is recommended to flush the cooling system and inspect hoses and clamps for wear when replacing the radiator.

Quality Assurance and Warranty

The TYC Radiator 2977 is manufactured to meet or exceed OEM specifications for Ford E-Series vehicles. Constructed with high-quality aluminum and designed for durability, this radiator supports reliable cooling system performance. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
