Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

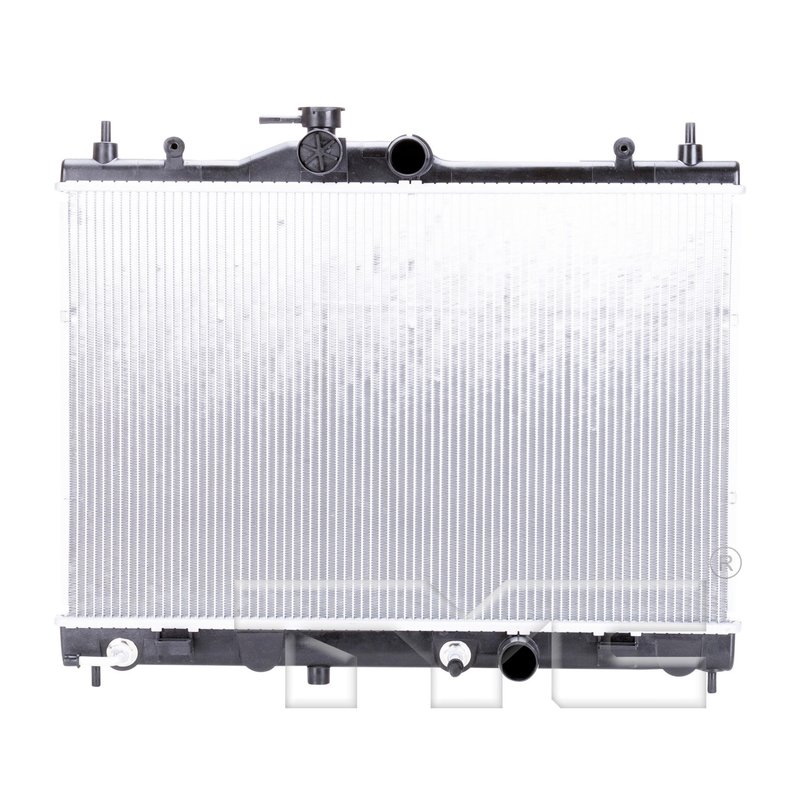

TYC 2981 Radiator - Primary
| Brand | TYC 2981 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Transmission Oil Cooler Type | Concentric |
| Transmission Oil Cooler Distance between Fittings | 11.81 |
| Core Height (in) | 15 |
| Core Length (in) | 23.98 |
| Core Thickness (in) | 0.63 |
| Fin Height | 0.25 |
| Flow Configuration | Downflow |
| Inlet Diameter | 1.38 |
| Inlet Fitting Design | Hose clamp |
| No. Of Rows | 1 |
| Outlet Diamter | 1.38 |
| Outlet Fitting Design | Hose clamp |
| Toc Inlet Diameter | 0.31 |
| Toc Inlet Fitting Design | Hose clamp |
| Toc Outlet Diameter | 0.31 |
| Toc Outlet Fitting Design | Hose clamp |
| Tube Width X Height | 0.629*0.055 |
| Product line | TYC Radiator |
| Fits | Nissan · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Plastic tanks. Durable tank material supports reliable cooling performance.
Downflow design. Engineered for straightforward coolant flow through the radiator.
Cross-references APDI 8012981, CSF 3347 and DENSO 221-3419 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 2981 Radiator for Nissan Versa
The TYC Radiator 2981 is a direct-fit cooling system replacement for select Nissan Versa applications. Built with an aluminum core and plastic tanks, it uses a downflow design and a concentric transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one unit.
Compatible with 2007-2011 Nissan Versa and 2012 Nissan Versa, Primary. This TYC 2981 radiator is built around the listed OE-style dimensions and hose-clamp connections for a straightforward replacement on the Nissan Versa cooling system.
Key Features
- Aluminum core with plastic tank construction
- Downflow flow configuration
- Concentric transmission oil cooler integrated into the radiator
- Core dimensions: 15 in. height, 23.98 in. length, 0.63 in. thickness
- Single-row core design
- 1.38 in. inlet and outlet diameters with hose clamp fittings
- Transmission oil cooler fittings: 0.31 in. inlet and outlet with hose clamp design
- Tube width x height: 0.629 x 0.055
Product Details
TYC Radiator 2981 is engineered for Nissan Versa cooling system service where the radiator and transmission cooler are combined in a single assembly. The aluminum core supports heat transfer, while the plastic tanks and hose-clamp style connections match common OE-style radiator layouts. With a 15-inch core height, 23.98-inch core length, and 0.63-inch core thickness, this radiator is sized for the listed Versa applications and uses a downflow configuration for coolant circulation.
This part cross-references Spectra Premium CU2981 and DENSO 221-3419 for the same application.
Common Issues This Radiator Can Address
- Coolant leaks from a damaged or aging radiator
- Overheating caused by restricted or inefficient heat exchange
- Transmission fluid temperature concerns related to a failing integrated cooler
- Cracked or brittle plastic tank failure
- Corrosion or internal wear in the original radiator assembly
Installation Notes
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler fitting locations before installation. This unit uses hose clamp inlet and outlet connections, so matching hose condition and clamp fit is important during replacement. Confirm the vehicle is a 2007-2011 Nissan Versa or 2012 Nissan Versa, Primary, before ordering.
Quality Assurance
TYC Radiator 2981 is built as a replacement radiator for the listed Nissan Versa applications and follows the specified core material, tank material, and connection design shown in the product data. Use the OE reference numbers and interchange numbers to confirm application match before installation.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2012 | Nissan | Versa | 1.8 S | Hatchback | Automatic | 1.8L | L4 | Primary | TYC Radiator |
| 2011 | Nissan | Versa | — | — | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2010 | Nissan | Versa | — | — | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2009 | Nissan | Versa | — | — | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2008 | Nissan | Versa | — | — | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2007 | Nissan | Versa | — | — | Automatic | 1.8L | L4 | N/A | TYC Radiator |
