Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

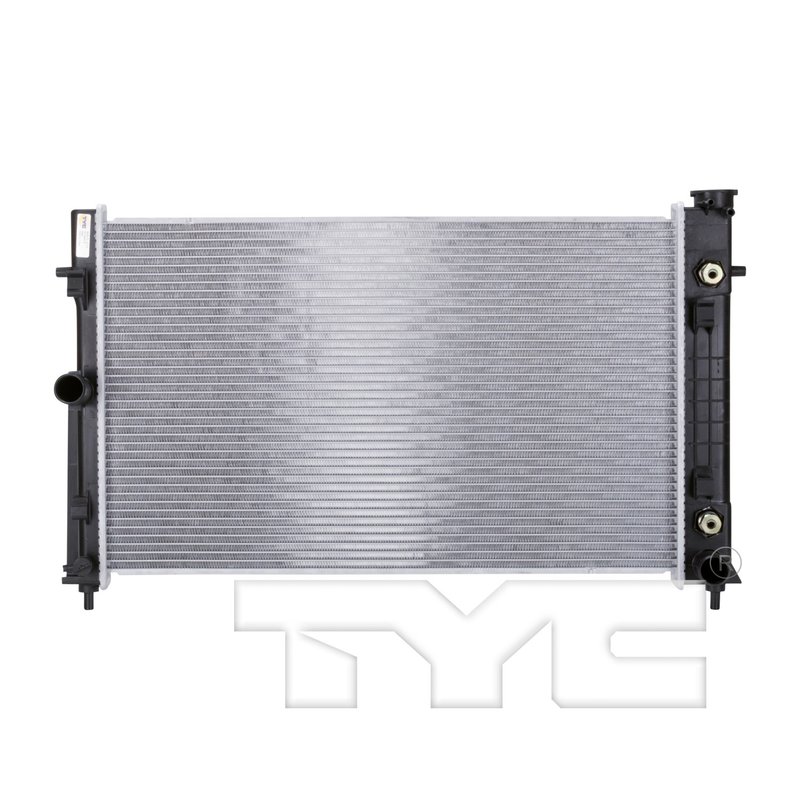

TYC 2987 Radiator
| Brand | TYC 2987 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.91x17.99 |
| Core Height (in) | 16.06 |
| Core Length (in) | 26.5 |
| Core Thickness (in) | 1.26 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 11.50 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick connect |
| Top Header | 2.44x17.99 |
| Total Fin Row Count | 41 |
| Total Tube Count | 40 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Pontiac · 2 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Crossflow design. Supports steady coolant flow through the radiator.
Cross-references APDI 8012987, CSF 2401 and DENSO 221-9179 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Pontiac GTO
TYC Radiator 2987 is a direct-fit cooling replacement for the 2005-2006 Pontiac GTO. Built with an aluminum core and a crossflow design, it includes a transmission oil cooler with plate-style construction for automatic transmission applications.
Key Features
- Aluminum core for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included
- Plate oil cooler type
- Single-row core design
- Hose clamp inlet and outlet connections
- Fits 2005-2006 Pontiac GTO, N/A
Product Details
TYC Radiator 2987 is engineered around the listed dimensions for the 2005-2006 Pontiac GTO, including a 26.5-inch core length, 16.06-inch core height, and 1.26-inch core thickness. The radiator uses aluminum core construction with 40 tubes and a fin density of 64 fins per 4 inches to support heat dissipation in the cooling system. The integrated transmission oil cooler uses quick-connect inlet and outlet fittings, while the radiator inlet and outlet both use 1.38-inch hose clamp connections. This part cross-references DENSO 221-9179 for the same application.
Common Cooling System Issues It Can Address
- Leaking radiator tanks or core seams
- Restricted coolant flow from an aging radiator
- Transmission fluid temperature control concerns tied to the radiator cooler
- Corrosion or internal buildup in the original cooling unit
- Cooling performance loss on a Pontiac GTO with worn factory components
Installation Notes and Tips
Confirm hose diameter, cooler line style, and mounting dimensions before installation. This radiator uses hose clamp inlet and outlet connections and quick-connect transmission cooler fittings, so matching the vehicle’s existing plumbing is important. Verify that the replacement is being installed on a 2005-2006 Pontiac GTO, N/A, and compare the original radiator dimensions to the listed core measurements before final assembly.
Quality Assurance
TYC Radiator 2987 is built to match the specified application and interchange references for the Pontiac GTO platform. It cross-references APDI 8012987, CSF 2401, DENSO 221-9179, General Motors 92147990, Partslink GM3010474, Silla Cooling 9505, Spectra Premium CU2987, and Vista Pro 438222.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Pontiac | GTO | 6.0L | V8 | N/A | TYC Radiator |
| 2005 | Pontiac | GTO | 6.0L | V8 | N/A | TYC Radiator |
