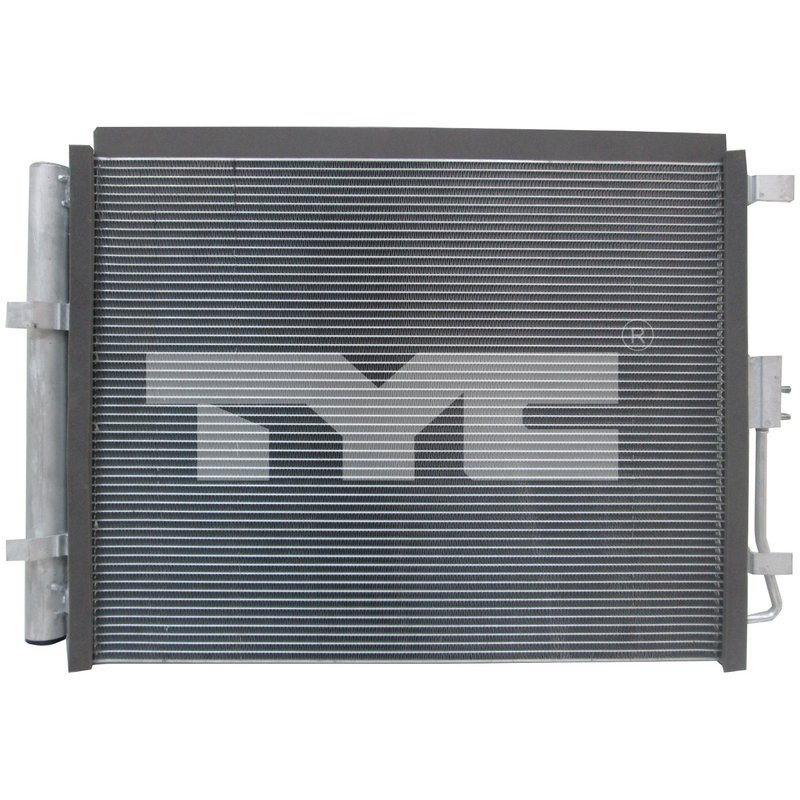

TYC 30004 A/C Condenser

Reliable A/C Condenser for Kia Forte5 and Forte Koup

The TYC 30004 A/C condenser is designed specifically for Kia Forte5 and Forte Koup models, providing efficient cooling performance. Featuring a parallel flow condenser configuration, this part ensures optimal heat dissipation for your vehicle's air conditioning system.

• Parallel flow condenser (PFC) design for improved cooling efficiency
• Includes receiver/dryer for enhanced system protection
• Core dimensions: 20.55 inches height x 15.14 inches length x 0.63 inches thickness
• Inlet size: 12.93mm and outlet size: 8.5mm for precise fitment
• Compatible with Kia Forte5 and Forte Koup models

Technical Details and Specifications

The TYC 30004 A/C condenser features a parallel flow condenser (PFC) configuration, which allows refrigerant to flow through multiple parallel channels. This design improves heat exchange efficiency compared to traditional tube-and-fin condensers. The core size measures 20.55 inches in height, 15.14 inches in length, and 0.63 inches in thickness, providing a compact yet effective cooling surface. The included receiver/dryer helps remove moisture and contaminants from the refrigerant, protecting the A/C system components and extending their service life. The inlet and outlet sizes of 12.93mm and 8.5mm respectively ensure proper connection to the vehicle’s A/C lines, maintaining system integrity and performance.

Compatible Vehicles and Applications

This A/C condenser is compatible with the following Kia models:

• Kia Forte5
• Kia Forte Koup

Use this condenser when experiencing issues related to the vehicle’s air conditioning system or when replacing a damaged or leaking condenser.

Common Issues Addressed by This A/C Condenser

• Reduced cooling performance due to condenser blockage or damage
• Leaks in the condenser causing refrigerant loss
• Corrosion or physical damage from road debris
• Moisture contamination in the A/C system affecting efficiency
• Failure of the receiver/dryer leading to system malfunctions

Installation Notes and Tips

When installing the TYC 30004 A/C condenser, ensure the system is properly evacuated and recharged with the correct refrigerant type and amount. Verify that the inlet and outlet connections match the vehicle’s specifications to avoid leaks. It is recommended to replace the receiver/dryer along with the condenser to maintain system cleanliness and performance. Inspect surrounding components for damage or wear during installation.

Quality Assurance and Warranty

TYC parts are manufactured to meet or exceed OEM standards, ensuring reliable fit and function. The 30004 A/C condenser undergoes rigorous quality control to provide consistent performance. Please refer to TYC’s warranty policy for specific coverage details.
