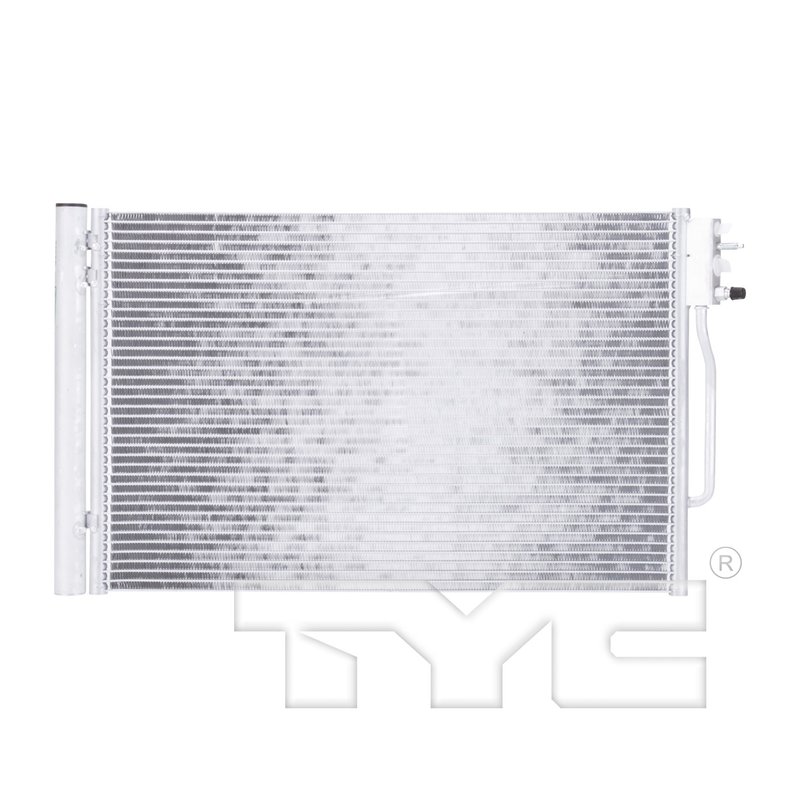

TYC 30026 A/C Condenser

Overview of TYC A/C Condenser 30026 for Buick and Chevrolet

The TYC A/C Condenser part number 30026 is designed specifically for select Buick and Chevrolet models, including the LaCrosse, Malibu, Regal Sportback, and Regal TourX. This condenser features a parallel flow configuration and includes a built-in receiver/dryer to support efficient air conditioning system performance.

• Parallel flow configuration for optimized cooling efficiency
• Built-in receiver/dryer for enhanced system reliability
• Core dimensions: 15.43 inches height, 24.27 inches length, 0.63 inches thickness
• Inlet diameter of 0.46 inches with block fitting design
• Outlet diameter of 0.34 inches with block fitting design
• Compatible with Buick LaCrosse, Chevrolet Malibu, Regal Sportback, and Regal TourX

Detailed Product Features and Specifications

The TYC 30026 A/C condenser is engineered with a parallel flow design, which improves heat dissipation and overall air conditioning efficiency. It includes a built-in receiver/dryer, eliminating the need for a separate component and simplifying installation. The core measures 15.43 inches in height, 24.27 inches in length, and 0.63 inches in thickness, providing a compact yet effective cooling surface. Both the inlet and outlet fittings use a block design, with diameters of 0.46 inches and 0.34 inches respectively, ensuring secure connections within the HVAC system.

Compatible Vehicles and Application

This condenser is compatible with the following vehicles:

• Buick LaCrosse
• Chevrolet Malibu
• Buick Regal Sportback
• Buick Regal TourX

When replacing the A/C condenser on these models, part number 30026 is a direct fit replacement designed to meet OEM specifications.

Common Issues Addressed by TYC A/C Condenser 30026

• Reduced cooling performance due to clogged or damaged condenser
• Leaks in the condenser causing refrigerant loss
• Corrosion or physical damage from road debris
• Failure of the receiver/dryer leading to moisture contamination
• Overheating of the A/C system resulting in inefficient operation

Installation Notes and Tips

• Ensure the system is fully evacuated and refrigerant recovered before removal
• Inspect and replace any damaged fittings or seals during installation
• Verify the block fitting connections are secure to prevent leaks
• Flush the A/C system to remove debris before installing the new condenser
• Recharge the system with the correct refrigerant type and amount after installation

Quality Assurance and Warranty Information

TYC manufactures this A/C condenser to meet or exceed OEM standards for durability and performance. The part number 30026 undergoes rigorous quality control to ensure reliable operation in compatible Buick and Chevrolet models. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
