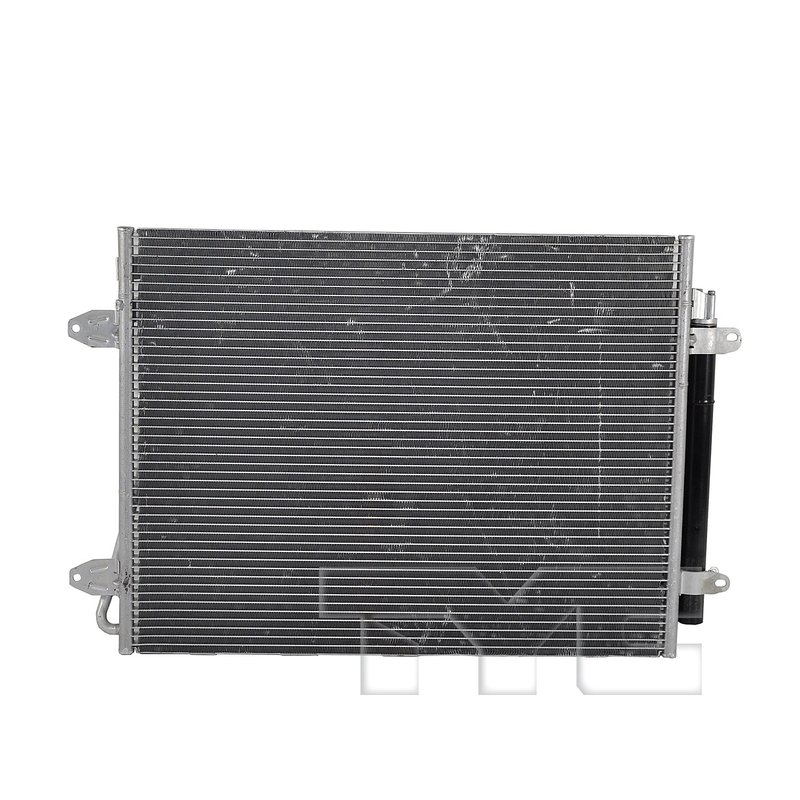

TYC 30037 A/C Condenser

Volkswagen Passat A/C Condenser Overview

This TYC A/C condenser, part number 30037, is a direct-fit HVAC replacement for select Volkswagen Passat applications with R-134a refrigerant. It uses a parallel flow configuration and includes a built-in receiver/dryer for a clean, application-specific repair.

Key Features

• Parallel flow condenser design for efficient refrigerant heat transfer
• Built-in receiver/dryer included
• No built-in oil cooler
• Core dimensions: 17.98 in. height, 24.02 in. length, 0.63 in. thickness
• Block-style inlet and outlet fittings
• Inlet diameter: 19.7; outlet diameter: 17.1

Detailed Product Description

TYC 30037 is an A/C condenser built for Volkswagen Passat models that use R-134a refrigerant. The parallel flow core is sized to match the listed application, and the integrated receiver/dryer supports a more complete condenser replacement. This part cross-references Volkswagen 561 820 411 C for the same application.

Compatible With select Volkswagen Passat models, including 2012-2019 Volkswagen Passat and 2020-2021 Volkswagen Passat, front. The fitment data also identifies 2012-2019 Volkswagen Passat applications with parallel flow configuration and R-134a refrigerant, along with 2020-2021 Volkswagen Passat front applications using R-134a refrigerant. TYC 30037 is also referenced by Partslink VW3030137 and Reach Cooling 31-3493.

Common Problems This Part Can Address

• Loss of A/C cooling performance from a leaking or restricted condenser
• Refrigerant flow issues caused by damaged condenser passages
• Moisture contamination concerns when replacing a failed condenser assembly
• Front-end condenser damage from road debris or impact
• Reduced system efficiency in Volkswagen Passat A/C service repairs

Installation Notes and Tips

Verify the vehicle uses R-134a refrigerant before installation. Confirm inlet and outlet fitting style, core dimensions, and mounting points against the original condenser on the Volkswagen Passat. Replace contaminated refrigerant system components as needed and evacuate and recharge the system according to factory service procedures after installation.

Quality Assurance

TYC manufactures replacement HVAC components to match listed OE-style fitment and specifications for the application. Part number 30037 is built to the stated condenser configuration and dimensions for Volkswagen Passat service work.
