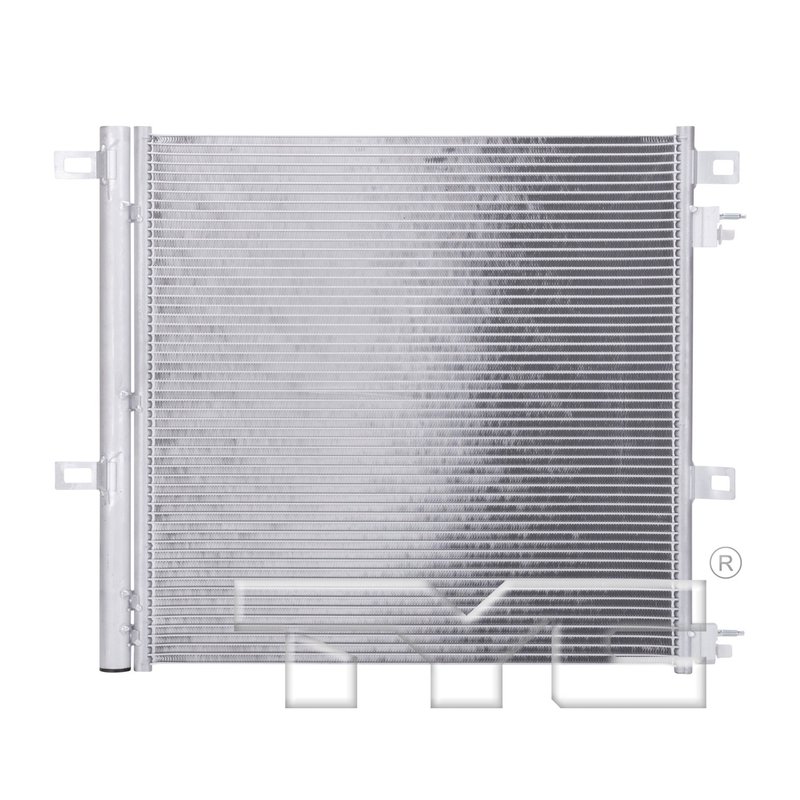

TYC 30043 A/C Condenser - Front

Overview of TYC A/C Condenser 30043 for Cadillac, Chevrolet, and GMC

The TYC A/C Condenser part number 30043 is designed specifically for select Cadillac, Chevrolet, and GMC models including the Acadia, Blazer, XT5, and XT6. This condenser features a parallel flow configuration and includes a built-in receiver/dryer to support efficient air conditioning system performance.

• Parallel flow configuration for optimized cooling efficiency
• Built-in receiver/dryer for moisture and debris control
• Core dimensions: 22.13 inches height, 23.2 inches length, 0.63 inches thickness
• Inlet diameter of 0.46 inches with block fitting design
• Outlet diameter of 0.34 inches with block fitting design
• Compatible with Cadillac XT5, XT6, Chevrolet Blazer, and GMC Acadia

Detailed Product Description and Specifications

The TYC 30043 A/C condenser is engineered with a parallel flow design, which enhances heat dissipation by allowing refrigerant to flow through multiple parallel channels. This design improves the overall efficiency of the air conditioning system in your vehicle. The condenser core measures 22.13 inches in height, 23.2 inches in length, and 0.63 inches in thickness, providing a robust surface area for effective heat exchange.

Equipped with a built-in receiver/dryer, this condenser helps remove moisture and contaminants from the refrigerant, protecting the A/C system components and maintaining optimal performance. The inlet and outlet fittings use a block design, with diameters of 0.46 inches and 0.34 inches respectively, ensuring secure and leak-free connections.

Compatible Vehicles and Common Applications

This TYC A/C condenser 30043 is compatible with the following vehicles:

• Cadillac XT5 and XT6
• Chevrolet Blazer
• GMC Acadia

It is designed to replace the original condenser in these models, restoring proper cooling function and system reliability.

Common Issues Addressed by This A/C Condenser

• Reduced cooling efficiency due to clogged or damaged condenser
• Refrigerant leaks caused by corrosion or physical damage
• Moisture contamination affecting A/C system performance
• Overheating of the air conditioning system during operation
• Failure of the receiver/dryer leading to system malfunctions

Installation Notes and Tips

• Ensure the vehicle is properly depressurized before removing the old condenser
• Check all fittings and seals for damage and replace if necessary
• Flush the A/C system to remove debris before installing the new condenser
• Use proper torque specifications on inlet and outlet fittings to prevent leaks
• Recharge the system with the correct type and amount of refrigerant after installation

Quality Assurance and Warranty Information

TYC manufactures this A/C condenser to meet or exceed OEM specifications for fit, form, and function. The part number 30043 undergoes rigorous quality control to ensure durability and reliable performance in Cadillac, Chevrolet, and GMC vehicles. Warranty coverage details should be confirmed with the distributor or installer, as they may vary by region.
