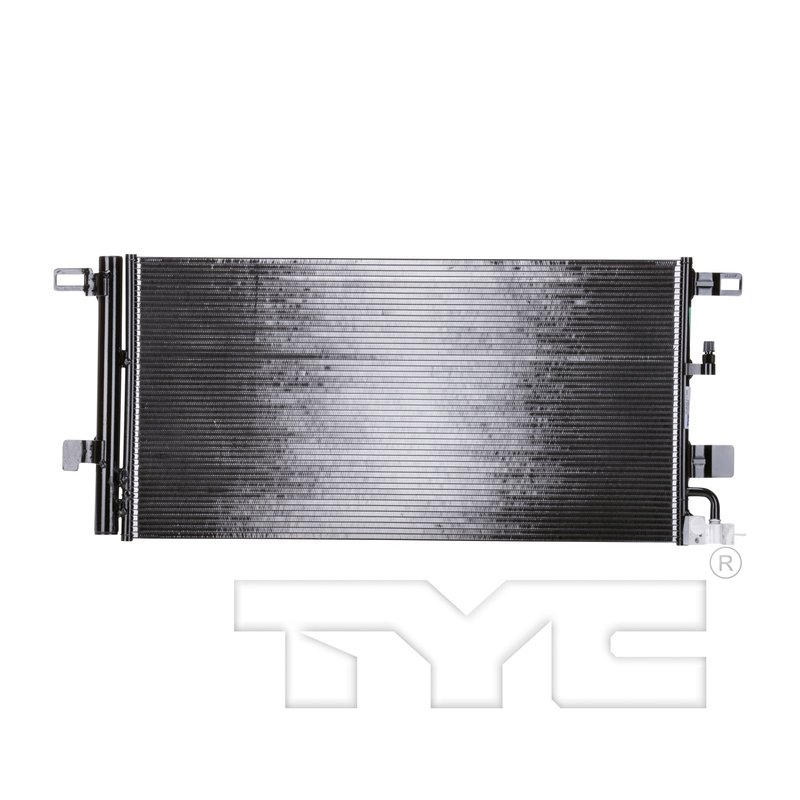

TYC 30057 A/C Condenser

Overview of TYC A/C Condenser 30057 for Audi Models

The TYC A/C Condenser part number 30057 is designed specifically for select Audi vehicles, including the A4, A4 allroad, A4 Quattro, A5 Quattro, A5 Sportback, A6 Quattro, and A7 Sportback. This parallel flow condenser (PFC) integrates a receiver/drier to support efficient air conditioning system performance.

• Parallel flow condenser configuration for optimized cooling
• Includes receiver/drier for moisture and debris removal
• Core dimensions: 26.77 inches height x 13.30 inches length x 0.47 inches thickness
• Fin height of 5mm for effective heat dissipation
• Inlet size: 0.61 inches; outlet size: 0.51 inches

Detailed Product Description

The TYC 30057 A/C condenser features a parallel flow design that enhances refrigerant flow and heat exchange efficiency. Its core size of 26.77 by 13.3 inches with a thickness of 0.47 inches provides a substantial surface area for cooling. The included receiver/drier helps maintain system integrity by filtering moisture and contaminants, which is critical for the longevity of the air conditioning system. The fin height of 5mm supports effective heat transfer, ensuring consistent performance under various driving conditions. The inlet and outlet sizes are engineered to match factory specifications for a direct fit on compatible Audi models.

Compatible Audi Models and Applications

• Audi A4 (including allroad and Quattro variants)
• Audi A5 Quattro and A5 Sportback
• Audi A6 Quattro
• Audi A7 Sportback

This condenser is intended for use in the vehicle’s HVAC system to facilitate proper refrigerant cooling and circulation.

Common Issues Addressed by TYC A/C Condenser 30057

• Reduced air conditioning cooling efficiency
• Refrigerant leaks or loss of pressure in the condenser
• Moisture contamination causing system corrosion or damage
• Overheating of the A/C system during operation
• Clogged or damaged condenser fins affecting airflow

Installation Notes and Tips

Ensure the condenser is compatible with your specific Audi model before installation. Proper handling of the receiver/drier is important to avoid contamination. It is recommended to evacuate and recharge the A/C system with the correct refrigerant type and quantity after installation. Inspect all connections and seals to prevent leaks. Professional installation is advised for optimal system performance.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM specifications for fit and function. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
