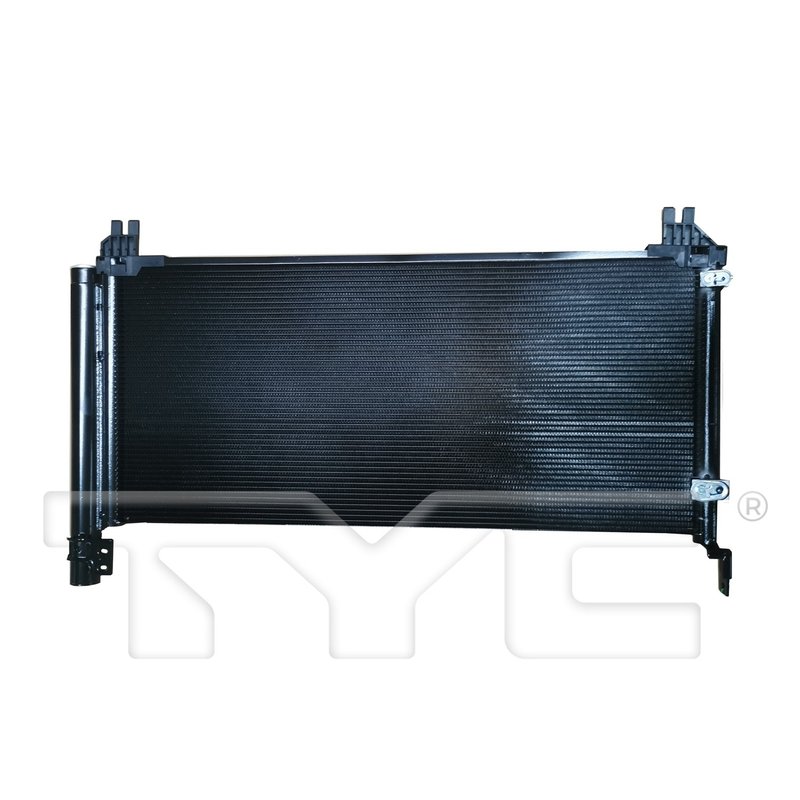

TYC 30070 A/C Condenser - Front

Overview of TYC A/C Condenser for Lexus RX450h and RX450hL

The TYC 30070 A/C condenser is designed specifically for Lexus RX450h and RX450hL models, providing reliable cooling performance. Featuring a parallel flow condenser configuration and a built-in dryer, this condenser supports efficient air conditioning system operation.

• Built-in dryer for moisture removal
• Parallel flow condenser (PFC) design
• Core dimensions: 12.82 inches height, 29.25 inches length, 0.87 inches thickness
• Inlet diameter: 15.5mm with block fitting design
• Outlet diameter: 10.2mm with block fitting design

Technical Specifications and Features

The TYC 30070 A/C condenser utilizes a parallel flow condenser (PFC) configuration, which enhances heat dissipation efficiency by allowing refrigerant to flow through multiple parallel channels. This design improves cooling capacity and reduces pressure drop within the system. The built-in dryer integrated into the condenser helps remove moisture and contaminants from the refrigerant, protecting the A/C system components from corrosion and damage.

Core dimensions are critical for proper fitment and performance. This condenser measures 12.82 inches in height, 29.25 inches in length, and 0.87 inches in thickness, ensuring compatibility with the Lexus RX450h and RX450hL HVAC systems. The inlet and outlet fittings feature block fitting designs with diameters of 15.5mm and 10.2mm respectively, facilitating secure and leak-free connections.

Compatible Vehicles and Application

This TYC A/C condenser, part number 30070, is compatible with the following Lexus models:

• Lexus RX450h
• Lexus RX450hL

It is engineered to meet the specific HVAC requirements of these hybrid SUV models, ensuring proper integration with the factory air conditioning system.

Common Issues Addressed by the TYC 30070 A/C Condenser

• Reduced cooling efficiency due to condenser clogging or damage
• Leaks in the condenser causing refrigerant loss
• Corrosion or moisture contamination within the A/C system
• Overheating of the air conditioning system during operation
• Failure of the built-in dryer leading to system performance issues

Installation Notes and Tips

When installing the TYC 30070 A/C condenser, ensure that the inlet and outlet block fittings are properly aligned and securely connected to prevent refrigerant leaks. Verify that the core dimensions match the OEM specifications for the Lexus RX450h or RX450hL. It is recommended to evacuate and recharge the A/C system following installation to maintain optimal performance. Professional installation is advised to ensure system integrity and safety.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided here, TYC products typically come with a limited warranty against defects in materials and workmanship. Refer to the product packaging or TYC documentation for exact warranty terms.
