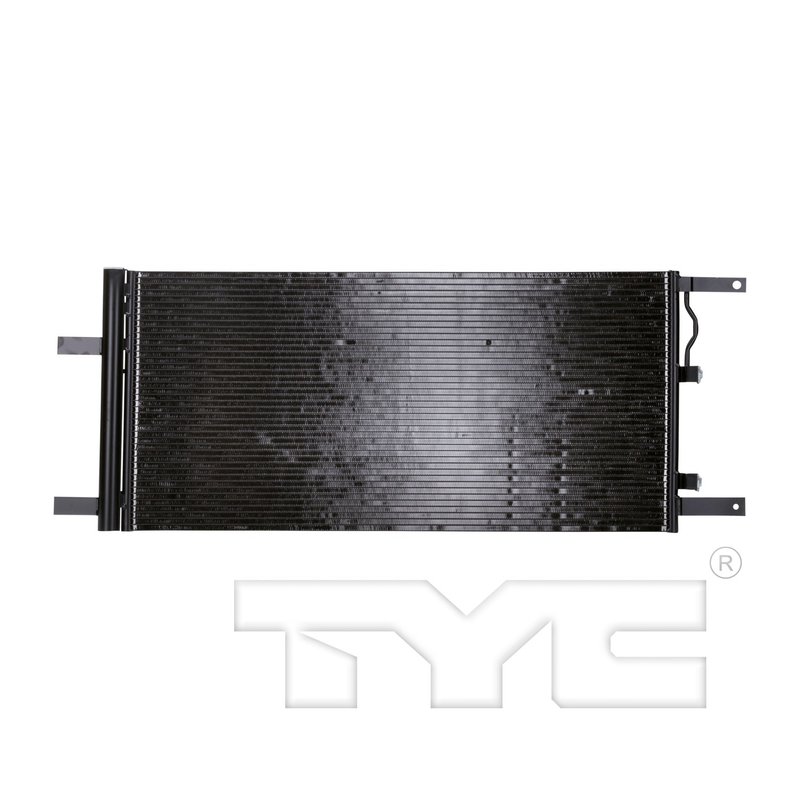

TYC 30089 A/C Condenser

Overview of TYC A/C Condenser for Ford Super Duty Trucks

The TYC 30089 A/C condenser is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. Engineered with a parallel flow configuration and a built-in dryer, this condenser supports efficient cooling performance and reliable operation in heavy-duty applications.

• Parallel flow configuration for optimized heat exchange
• Built-in dryer to remove moisture and contaminants
• Core dimensions: 16.14 inches height, 34.96 inches length, 0.63 inches thickness
• Inlet and outlet diameters of 0.89 inches with block fitting design
• Compatible with Ford F-250 Super Duty and F-350 Super Duty models

Technical Specifications and Features

The TYC 30089 A/C condenser features a parallel flow design that enhances refrigerant flow and heat dissipation, improving overall air conditioning efficiency. The built-in dryer helps prevent moisture buildup inside the system, reducing the risk of corrosion and refrigerant contamination. With core dimensions of 16.14 inches in height, 34.96 inches in length, and 0.63 inches in thickness, this condenser fits precisely within the HVAC system of Ford Super Duty trucks. Both the inlet and outlet ports measure 0.89 inches in diameter and utilize a block fitting design for secure and leak-resistant connections.

Application and Common Issues Addressed

• Replaces faulty or leaking A/C condensers in Ford F-250 Super Duty and F-350 Super Duty
• Resolves reduced cooling performance due to clogged or damaged condenser cores
• Eliminates moisture-related issues with the built-in dryer feature
• Addresses refrigerant leaks caused by worn or corroded fittings
• Improves overall HVAC system reliability and efficiency

Installation Notes and Tips

When installing the TYC 30089 A/C condenser, ensure the system is fully evacuated and free of contaminants before installation. Verify that the inlet and outlet block fittings align correctly with the vehicle’s existing HVAC lines. It is recommended to replace the receiver/dryer or accumulator along with the condenser to maintain system integrity. Proper torque specifications should be followed to avoid damage to fittings and ensure leak-free connections.

Quality Assurance and Warranty

TYC manufactures the 30089 A/C condenser to meet or exceed OEM standards for fit, form, and function. The product undergoes rigorous quality control testing to ensure durability and performance under demanding conditions. While specific warranty details may vary, TYC typically offers a limited warranty covering defects in materials and workmanship for this part number.
