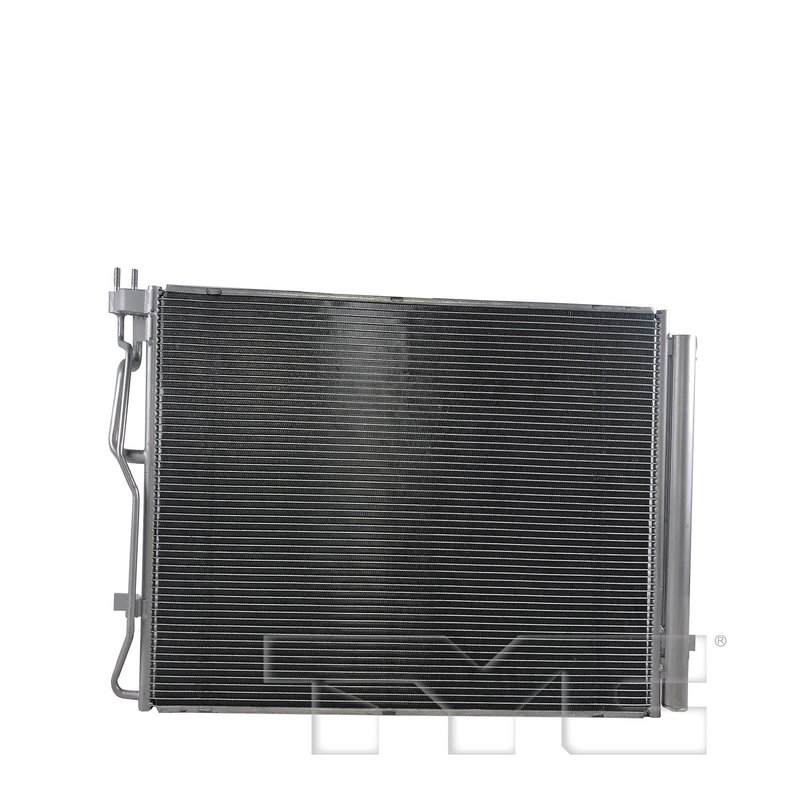

TYC 30149 A/C Condenser

Overview of TYC A/C Condenser for Hyundai Kona

The TYC 30149 A/C condenser is designed specifically for the Hyundai Kona, providing reliable cooling performance for your vehicle's HVAC system. This parallel flow condenser features a built-in receiver/dryer to help maintain optimal refrigerant flow and system efficiency.

• Parallel flow condenser configuration for efficient heat exchange
• Built-in receiver/dryer included for improved refrigerant management
• Core dimensions: 15.3 inches height, 25.9 inches length, 0.47 inches thickness
• Inlet diameter of 11.8 mm with block fitting design
• Outlet diameter of 8.6 mm with block fitting design
• Compatible with Hyundai Kona models

Detailed Product Description

The TYC 30149 A/C condenser is engineered to meet the cooling demands of the Hyundai Kona's HVAC system. Its parallel flow design enhances heat dissipation by allowing refrigerant to flow through multiple parallel channels, improving overall system efficiency. The integrated receiver/dryer helps remove moisture and contaminants from the refrigerant, protecting the A/C system components and extending their service life.

With core dimensions of 15.3 inches in height, 25.9 inches in length, and 0.47 inches in thickness, this condenser fits precisely within the Hyundai Kona's engine bay. The inlet and outlet fittings use a block fitting design, with diameters of 11.8 mm and 8.6 mm respectively, ensuring secure and leak-free connections to the vehicle's refrigerant lines.

Common Issues Addressed by This A/C Condenser

• Reduced cooling performance due to clogged or damaged condenser
• Refrigerant leaks from worn or corroded condenser fittings
• Moisture contamination causing system inefficiency or damage
• Overheating of the A/C system during operation
• Failure of the receiver/dryer leading to refrigerant flow problems

Installation Notes and Tips

When installing the TYC 30149 A/C condenser on a Hyundai Kona, ensure all refrigerant is properly evacuated from the system before removal. Verify that the block fittings on the inlet and outlet match the vehicle's refrigerant lines to prevent leaks. It is recommended to inspect and replace the receiver/dryer if necessary, although this condenser includes a built-in unit. Proper torque specifications should be followed to avoid damage to fittings and ensure a secure installation.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM specifications for the Hyundai Kona. The part number 30149 is backed by TYC's quality control standards to ensure durability and reliable performance. Please refer to TYC's warranty policy for specific coverage details related to this condenser.
