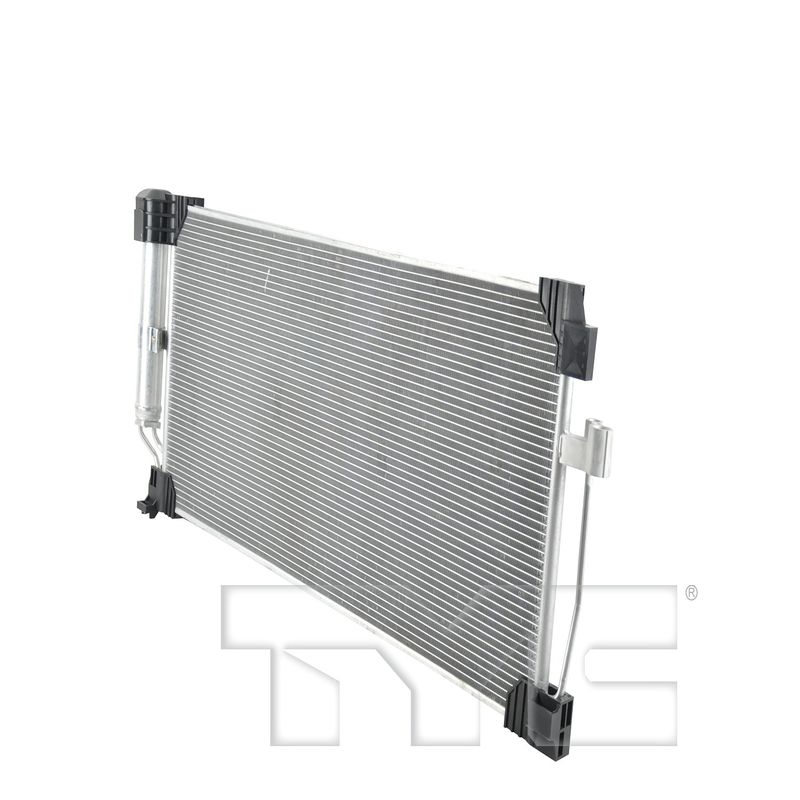

TYC 30184 A/C Condenser
| Brand | TYC 30184 |
|---|---|
| Built-in Receiver/dryer | Yes |
| Configuration | Parallel flow |
| Core Height (in) | 12.81 |
| Core Length (in) | 30.35 |
| Core Thickness (in) | 0.47 |
| Inlet Diameter | 15.5mm |
| Inlet Fitting Design | Block fitting |
| Outlet Connection Type | Block fitting |
| Outlet Diamter | 10.15mm |
| Fits | INFINITI · 2 vehicles |
Parallel flow design. Supports efficient refrigerant heat transfer in a compact condenser core.
Built-in receiver/dryer. Combines key HVAC functions in one replacement assembly.
Factory-style fitment. Uses block fitting connections for the listed application.
Cross-references TYC 30184, 92100-5NA0A and IN3030171 for the same application. See all 3.
Overview
This TYC A/C condenser, part number 30184, is built for direct replacement service on the specified application. It uses a parallel flow design and includes a built-in receiver/dryer for a cleaner, more integrated HVAC repair.
Key Features
- Parallel flow condenser design for efficient refrigerant heat transfer.
- Built-in receiver/dryer for a more complete condenser assembly.
- Block fitting inlet and outlet connections for the listed application.
- Compact core dimensions: 12.81 in. height, 30.35 in. length, and 0.47 in. thickness.
- TYC part number 30184 for straightforward identification and ordering.
Detailed Description
TYC 30184 is an A/C condenser engineered for the 2019-2020 INFINITI QX50. The parallel flow core supports efficient refrigerant cooling, while the integrated receiver/dryer helps simplify the replacement of a worn or leaking condenser assembly. With block fitting connections and the listed inlet and outlet sizes, this condenser is matched to the factory-style HVAC layout used on the vehicle.
This part cross-references 92100-5NA0A and IN3030171 for the same application. For buyers searching for an INFINITI QX50 A/C condenser or a TYC 30184 replacement, this unit provides the correct fitment profile for the listed model years.
What It Helps Address
- Refrigerant leakage from a damaged condenser core.
- Reduced A/C cooling performance caused by restricted heat exchange.
- Failure of the integrated receiver/dryer in the condenser assembly.
- Fitment issues when replacing the original condenser with the wrong connection style.
Installation Notes
Verify the block fitting connection style and the inlet and outlet dimensions before installation. Confirm system compatibility with the listed 2019-2020 INFINITI QX50 application and inspect surrounding HVAC components for contamination or damage during service. Part number 30184 should be matched to the vehicle’s original condenser configuration before final installation.
Quality Assurance
TYC supplies replacement HVAC components for service applications that require accurate fitment and factory-style construction. Part number 30184 is identified for the listed vehicle application and interchange references.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | INFINITI | QX50 | Sensory | Sport Utility | 2.0L | L4 | — |
| 2019 | INFINITI | QX50 | Luxe | Sport Utility | 2.0L | L4 | — |
