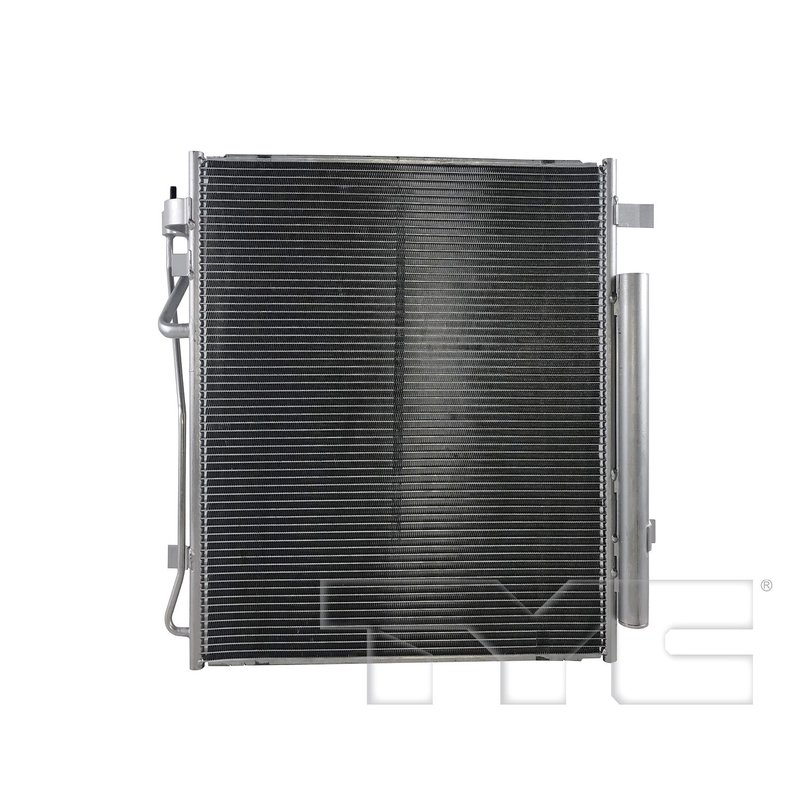

TYC 30198 A/C Condenser

Overview of TYC A/C Condenser for Hyundai Sonata

The TYC A/C Condenser part number 30198 is designed specifically for Hyundai Sonata models, providing reliable cooling system performance. This parallel flow condenser features a built-in dryer and precise inlet and outlet fittings to ensure proper fit and function.

• Parallel flow condenser (PFC) configuration for efficient heat exchange
• Built-in dryer to remove moisture and contaminants
• Core dimensions: 17.33 inches height, 19.53 inches length, 0.47 inches thickness
• Block fitting inlet and outlet designs for secure connections
• Inlet size: 14.22mm; outlet diameter: 9.4mm

Detailed Product Description

The TYC 30198 A/C condenser is engineered with a parallel flow condenser design, which enhances the heat dissipation process by allowing refrigerant to flow through multiple parallel tubes. This design improves cooling efficiency and supports the HVAC system's overall performance in Hyundai Sonata vehicles. The integrated dryer helps to eliminate moisture and contaminants from the refrigerant, protecting the system from corrosion and damage.

With core dimensions of 17.33 inches in height, 19.53 inches in length, and 0.47 inches in thickness, this condenser fits precisely within the designated space in the Hyundai Sonata. The block fitting inlet and outlet connections, sized at 14.22mm and 9.4mm respectively, ensure a secure and leak-free installation, maintaining system integrity.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or leaking A/C condensers in Hyundai Sonata models
• Resolves reduced cooling performance due to clogged or damaged condenser cores
• Addresses refrigerant leaks caused by corrosion or physical damage
• Helps restore proper refrigerant flow and pressure in the A/C system
• Prevents moisture-related damage with built-in dryer functionality

Installation Notes and Tips

When installing the TYC 30198 A/C condenser, ensure the vehicle is compatible with this part number and model year. Proper evacuation and recharging of the A/C system are necessary after installation to maintain system performance. Verify that the block fitting inlet and outlet connections are securely tightened to prevent leaks. It is recommended to inspect related components such as the receiver/dryer and expansion valve during replacement.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM specifications for Hyundai Sonata vehicles. The part number 30198 undergoes rigorous quality control to ensure durability and reliable operation. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship.
