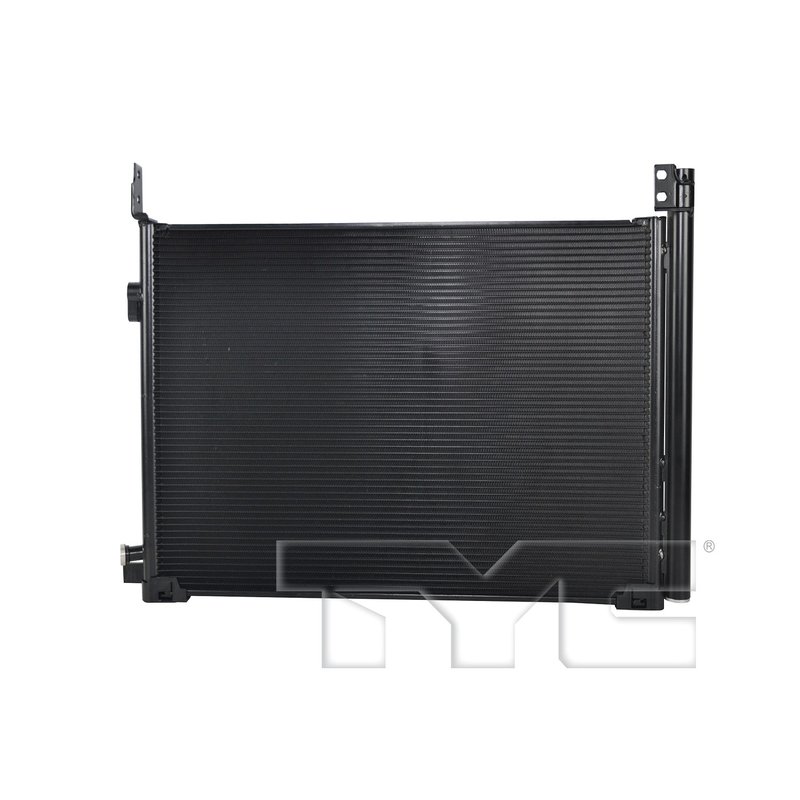

TYC 30202 A/C Condenser - Front

Reliable A/C Condenser for Lexus and Toyota Vehicles

The TYC 30202 A/C condenser is designed to restore efficient cooling performance in select Lexus and Toyota models. Engineered with a parallel flow condenser configuration and a built-in dryer, this part ensures optimal refrigerant flow and moisture removal for your vehicle's HVAC system.

• Parallel flow condenser (PFC) design for improved heat exchange
• Built-in dryer to eliminate moisture and contaminants
• Core dimensions: 14.12 inches height, 29.25 inches length, 0.87 inches thickness
• Inlet diameter of 15.5mm with block fitting design
• Outlet diameter of 14.8mm with block fitting design
• Compatible with Lexus RX350h and Toyota Grand Highlander, Highlander, and Sienna models

Technical Details and Construction

This TYC A/C condenser (part number 30202) features a parallel flow condenser configuration, which enhances heat dissipation by allowing refrigerant to flow through multiple parallel channels. The built-in dryer integrated into the condenser helps to remove moisture and contaminants from the refrigerant, protecting the A/C system from corrosion and blockages. The core measures 14.12 inches in height, 29.25 inches in length, and 0.87 inches in thickness, providing a substantial surface area for effective cooling.

Both the inlet and outlet fittings use a block fitting design, with diameters of 15.5mm and 14.8mm respectively, ensuring secure and leak-resistant connections within the HVAC system. This condenser is engineered to meet the specifications required for Lexus RX350h and Toyota Grand Highlander, Highlander, and Sienna vehicles, making it a precise replacement part.

Applications and Common Issues Addressed

• Restores proper cooling performance in Lexus RX350h and Toyota Highlander A/C systems
• Replaces damaged or leaking condensers causing refrigerant loss
• Eliminates moisture-related corrosion and blockages with built-in dryer
• Improves overall HVAC efficiency and cabin comfort
• Addresses overheating issues related to condenser failure

Installation Notes and Tips

When installing the TYC 30202 A/C condenser, ensure the system is properly evacuated and recharged with the correct refrigerant type and amount. Verify that the block fittings on the inlet and outlet match the vehicle’s HVAC lines to prevent leaks. Inspect surrounding components such as the radiator and condenser fan for any damage or debris that could affect performance. Proper torque specifications should be followed to avoid damage to fittings.

Quality Assurance and Warranty

TYC manufactures this A/C condenser to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Using a TYC condenser like part number 30202 helps maintain the reliability and efficiency of your Lexus or Toyota vehicle’s air conditioning system.
