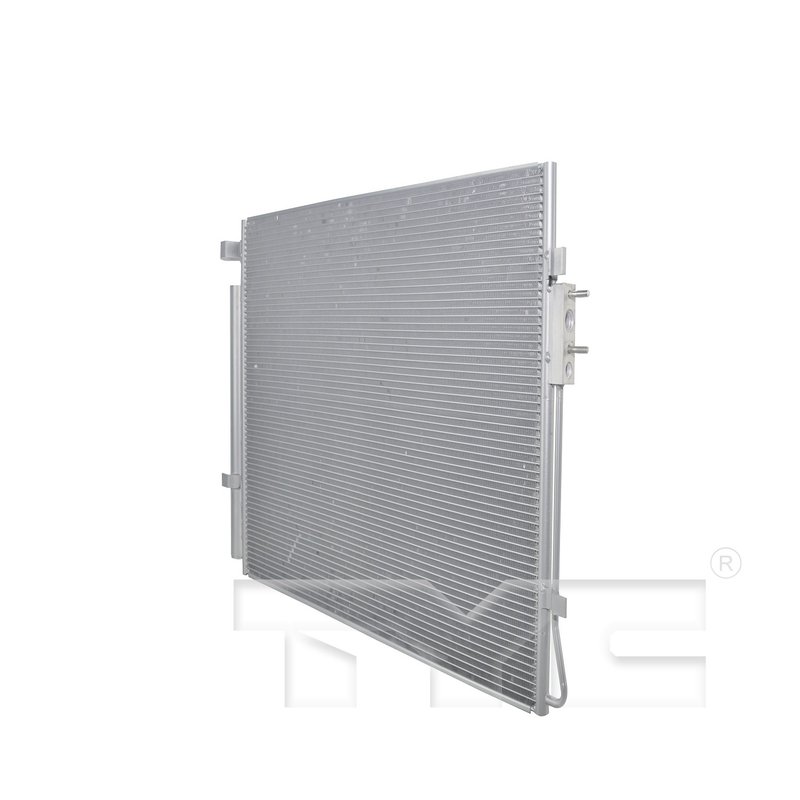

TYC 30222 A/C Condenser

OE-Style A/C Condenser for Tucson and Sportage

TYC 30222 is a parallel flow A/C condenser with a built-in receiver/dryer for select Hyundai and Kia applications. It is built for 2022-2025 Hyundai Tucson and 2023-2025 Kia Sportage models, with OE-style block fittings for a direct replacement layout.

Key Features

• Parallel flow condenser (PFC) construction for efficient refrigerant heat transfer
• Built-in receiver/dryer for the specified application
• Core dimensions: 17.21 in. height, 28.19 in. length, 0.47 in. thickness
• Inlet diameter: 14.22 mm with block fitting design
• Outlet diameter: 9.4 mm with block fitting design
• Direct-fit replacement for select Hyundai Tucson and Kia Sportage HVAC systems

Detailed Description

TYC 30222 is an A/C condenser engineered for vehicles that use a parallel flow condenser layout and integrated receiver/dryer assembly. The condenser core measures 17.21 inches tall, 28.19 inches long, and 0.47 inches thick, with block-style inlet and outlet fittings sized to match the listed application. This part also references OE number 97606-N7600 and Partslink HY3030189, and it cross-references 30221 for the same application. For buyers searching for a 2022-2025 Hyundai Tucson A/C condenser or a 2023-2025 Kia Sportage condenser replacement, this part number 30222 provides the specified fitment and connection style.

Common Problems This Part Can Address

• Leaking or damaged condenser core
• Restricted refrigerant flow from internal condenser damage
• Corrosion or impact damage at the front of the HVAC system
• Loss of cooling performance caused by a failing condenser assembly
• Fitment issues when replacing an OE-style block-fitting condenser

Installation Notes and Tips

Confirm the OE number, connector style, and condenser dimensions before installation. Because this unit uses block fittings and a built-in receiver/dryer, the system should be evacuated and recharged according to factory service procedures after replacement. Inspect adjacent A/C components, seals, and lines for contamination or damage before installing the new condenser. Fitment includes 2022-2025 Hyundai Tucson and 2023-2025 Kia Sportage, so verify the vehicle’s HVAC configuration against the listed application before ordering.

Quality Assurance

TYC manufactures replacement HVAC components to match the listed application details, including OE-style dimensions and fitting design. Part number 30222 is listed with direct OE and Partslink references for application matching on Hyundai Tucson and Kia Sportage models.
