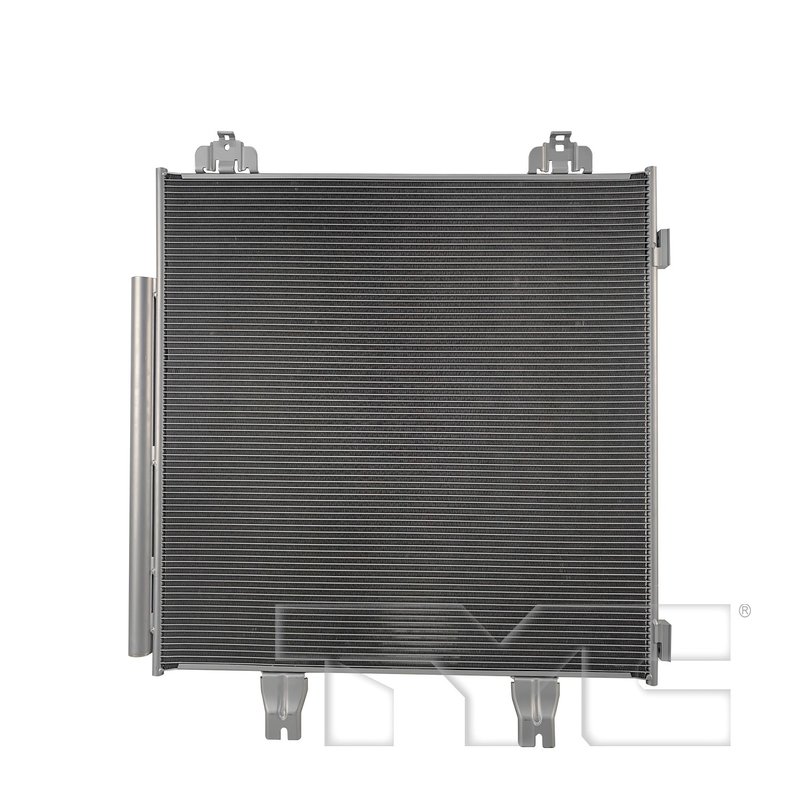

TYC 30234 A/C Condenser
OE Quality 60-Day Returns
TYC

TYC 30234 A/C Condenser

Brand TYC 30234
Built-in Receiver/dryer Yes
Configuration Parallel flow condenser(pfc)
Core Height (in) 21.22
Core Length (in) 28.43
Core Thickness (in) 0.47
Inlet Connection Type Block fitting
Inlet Diameter 15.5mm
Outlet Connection Type Block fitting
Outlet Diamter 15.5mm
Fits Acura · 4 vehicles

Parallel flow design. Promotes efficient refrigerant heat transfer in modern A/C systems.

Built-in receiver/dryer. Combines key condenser functions in one replacement assembly.

Block fitting connections. Uses 15.5 mm inlet and outlet ports for the listed application.

Cross-references Karlyn 30234, 80100-TYA-A11 and AC3030135 for the same application. See all 3.

$93.19Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $93.19
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Condenser options

A/C condenser for Acura MDX

Restore front-end air conditioning performance with this TYC A/C condenser, part number 30234. It is built for 2022-2025 Acura MDX applications and uses a parallel flow condenser design with an integrated receiver/dryer for a clean, OE-style replacement path.

  • Fits 2022-2025 Acura MDX, N/A
  • Parallel flow condenser (PFC) design for efficient refrigerant heat transfer
  • Built-in receiver/dryer for a more complete condenser assembly
  • Block fitting inlet and outlet connections
  • Core dimensions: 21.22 in. height, 28.43 in. length, 0.47 in. thickness
  • 15.5 mm inlet and outlet diameters

Detailed product overview

TYC 30234 is an A/C condenser for the Acura MDX that matches the listed 2022-2025 fitment and uses a parallel flow layout commonly selected for modern HVAC systems. The integrated receiver/dryer and block fitting connections support a straightforward condenser replacement where the original unit has lost cooling efficiency, developed leaks, or suffered damage from road debris. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common replacement reasons

  • Reduced cabin cooling from a leaking or restricted condenser
  • Visible damage to condenser fins or core from impact
  • Refrigerant loss at the condenser or connection points
  • Weak A/C performance after contamination in the system
  • Need for a direct condenser replacement on a 2022-2025 Acura MDX

Installation notes

Verify the block fitting style and 15.5 mm inlet and outlet dimensions before installation. Because this condenser includes a receiver/dryer, confirm the rest of the A/C system is clean and properly evacuated before recharging. Always follow the vehicle service procedure for leak checking, evacuation, and refrigerant refill after replacement.

Quality assurance

TYC manufactures HVAC replacement components with application-specific fitment and OE-style construction details. Part number 30234 is built to match the listed Acura MDX applications and condenser configuration.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeLitersCylindersNotes
2025AcuraMDXAdvanceSport Utility3.5LV6—
2024AcuraMDXBaseSport Utility3.5LV6—
2023AcuraMDXBaseSport Utility3.5LV6—
2022AcuraMDXType SSport Utility3.0LV6—
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Karlyn — 3023480100-TYA-A11AC3030135
