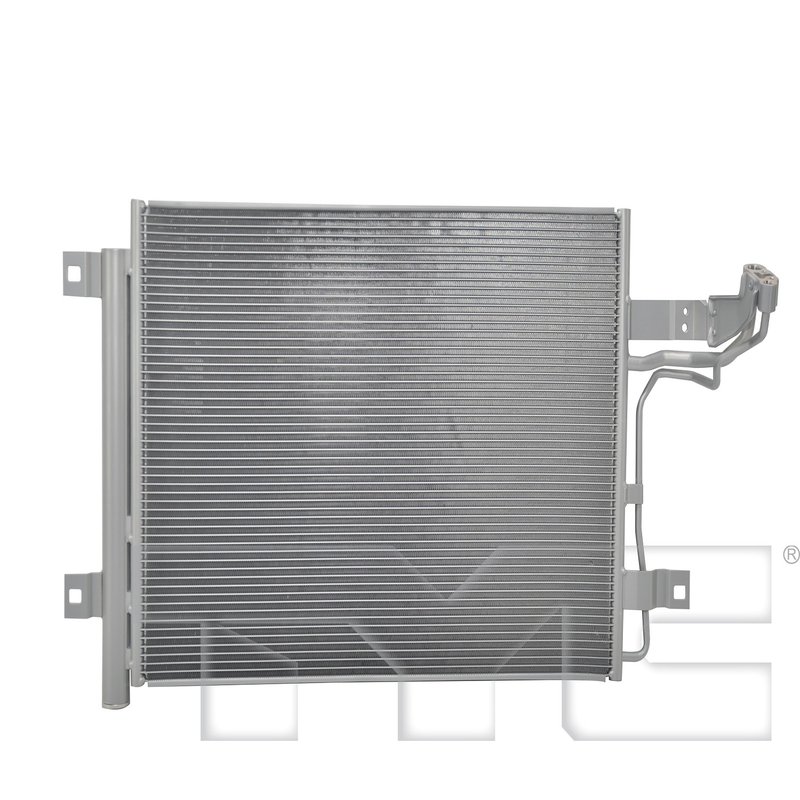

TYC 30256 A/C Condenser

TYC 30256 A/C Condenser for Mazda 3 and CX-30

Restore proper air conditioning performance with this TYC A/C condenser, part number 30256. It is built as a parallel flow condenser with an integrated receiver/dryer and block-style inlet and outlet fittings for a direct replacement application on select Mazda models.

Key Features

• Parallel flow condenser (PFC) design for efficient refrigerant heat transfer
• Built-in receiver/dryer for a cleaner, service-ready condenser assembly
• Core dimensions: 23.54 in. length, 15.07 in. height, 0.47 in. thickness
• 15.5 mm inlet with block fitting design
• 10.5 mm outlet with block fitting design
• Direct-fit replacement for select 2021-2025 Mazda 3 and Mazda CX-30 applications

Detailed Description

TYC 30256 is an A/C condenser engineered for vehicles that use a parallel flow condenser layout and block fittings. The integrated receiver/dryer helps keep the refrigerant circuit organized in a single assembly, while the condenser core dimensions and port sizes align with the listed Mazda applications. This part cross-references Monroe Shocks & Struts (e.g., BDWK-61-480B, MA3030168) for the same application. Compatible with 2021-2025 Mazda 3 and 2021-2025 Mazda CX-30, this condenser supports OE-style replacement needs for vehicles requiring the specified inlet and outlet configuration.

Common Problems This Part Can Address

• Reduced cabin cooling from a leaking or restricted condenser
• Refrigerant flow issues caused by damaged block fittings or port connections
• Heat exchange loss from a corroded or impact-damaged condenser core
• Service interruptions when the receiver/dryer assembly is no longer functioning properly
• A/C performance decline after front-end damage or long-term wear

Installation Notes and Tips

Verify the inlet and outlet fitting design, port diameters, and core dimensions before installation. Replace any contaminated refrigerant system components as needed, and evacuate and recharge the system according to the vehicle service procedure after installation. Confirm fitment by model year and application details for the Mazda 3 or Mazda CX-30 before ordering.

Quality Assurance

TYC manufactures replacement HVAC components for OE-style service applications. Part number 30256 is built to match the listed fitment and configuration requirements for select Mazda vehicles.
