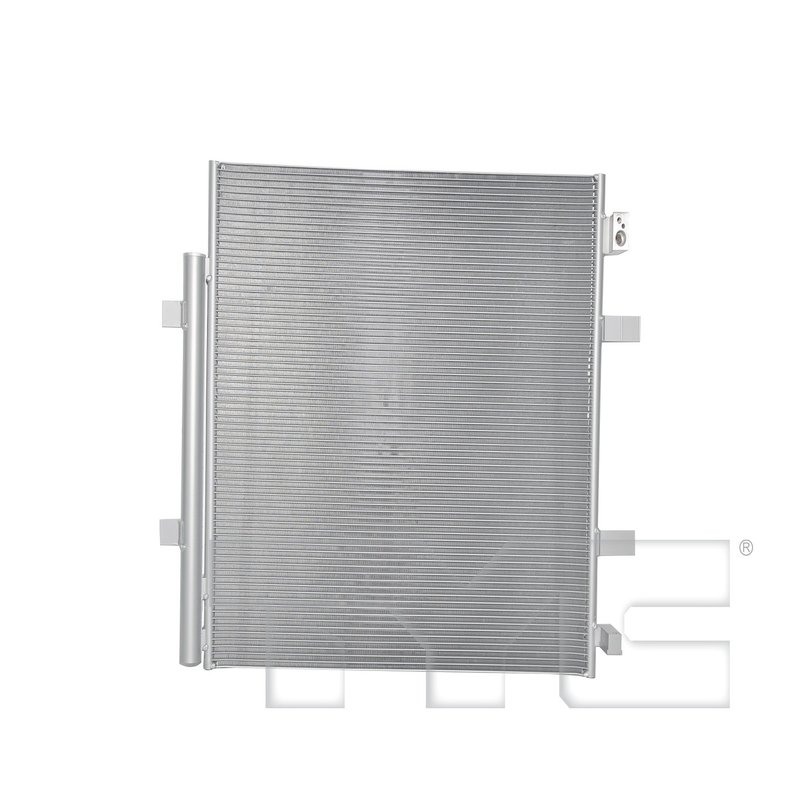

TYC 30265 A/C Condenser

OE-Style A/C Condenser for Audi and Volkswagen

Restore front-end air conditioning performance with this TYC A/C condenser, part number 30265. It is built as a parallel flow condenser with a built-in receiver/dryer and block-style inlet and outlet fittings for a direct-fit replacement on select Audi and Volkswagen EV applications using R-1234YF refrigerant.

Compatible with 2022-2025 Audi Q4 e-tron and 2021-2024 Volkswagen ID.4, this condenser is specified for modern thermal management systems that require efficient heat transfer and correct refrigerant routing. TYC 30265 is a practical replacement when the original condenser is leaking, restricted, or no longer cooling effectively.

Key Features

• TYC part number 30265
• Parallel flow condenser (PFC) design for efficient refrigerant cooling
• Built-in receiver/dryer included in the assembly
• Block fitting inlet and outlet connections
• Inlet diameter: 13.8 mm
• Outlet diameter: 11.8 mm
• Core dimensions: 19.34 in. height, 22.91 in. length, 0.47 in. thickness
• Specified for R-1234YF refrigerant applications in the USA

Detailed Description

This A/C condenser is engineered for vehicles that rely on a compact, high-efficiency parallel flow layout. The built-in receiver/dryer helps support proper refrigerant system operation by integrating key components into one replacement assembly. With block fitting connections and application-specific dimensions, TYC 30265 is suited for service work on the Audi Q4 e-tron and Volkswagen ID.4 platform.

This part cross-references OE-style numbers 1EA 816 411 A and VW3030142 for the same application. Use TYC 30265 when replacing a damaged condenser on a 2022-2025 Audi Q4 e-tron or a 2021-2024 Volkswagen ID.4, especially when the system is set up for R-1234YF refrigerant.

What It Is Used For

• Replacing a leaking or punctured condenser
• Restoring weak cabin cooling performance
• Addressing refrigerant flow restriction in the A/C system
• Repairing corrosion or impact damage at the front of the vehicle
• Servicing R-1234YF-equipped HVAC systems on EV platforms

Installation Notes and Tips

Verify refrigerant type, fitting style, and core dimensions before installation. Replace contaminated system components as needed and evacuate and recharge the system according to the vehicle service procedure. Confirm that the inlet and outlet block fittings align correctly with the existing lines on the Audi Q4 e-tron or Volkswagen ID.4 before final assembly.

Quality Assurance

TYC manufactures replacement HVAC components for vehicle-specific applications, and this condenser is built to match the listed fitment and refrigerant requirements for the covered Audi and Volkswagen models.
