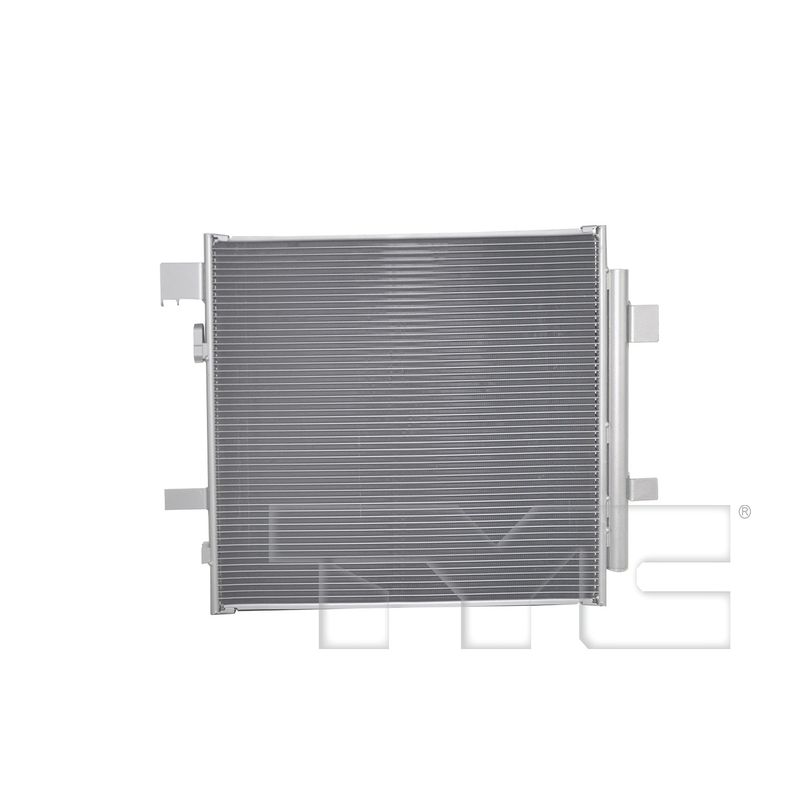

TYC 30301 A/C Condenser

TYC 30301 A/C Condenser for Subaru Crosstrek and Impreza

TYC 30301 is an A/C condenser assembly with a built-in receiver/dryer for select Subaru applications. It is built as a parallel flow condenser with block fittings to match the listed vehicle connections and restore proper refrigerant heat exchange performance.

Key Features

• Built-in receiver/dryer for an integrated HVAC service replacement
• Parallel flow condenser (PFC) construction for efficient refrigerant cooling
• Core dimensions: 23.94 in. length, 14.96 in. height, 0.47 in. thickness
• Inlet diameter: 15.5 mm with block fitting design
• Outlet diameter: 10.15 mm with block fitting design
• Direct-fit application for select Subaru Crosstrek and Subaru Impreza models

Detailed Description

TYC 30301 is an A/C condenser for 2024-2025 Subaru Crosstrek, 2024-2025 Subaru Impreza, and 2026 Subaru Crosstrek with Eye Sight Driver Assist Technology. The parallel flow condenser design supports efficient refrigerant cooling, while the integrated receiver/dryer simplifies replacement of the condenser assembly. This part cross-references Subaru OE numbers 73210FN02A and SU3030146 for the same application. Use TYC 30301 when replacing a leaking, restricted, or damaged condenser on a Subaru Crosstrek or Subaru Impreza HVAC system.

Common Issues This Part Can Address

• Refrigerant loss from a cracked or corroded condenser core
• Reduced A/C cooling from internal blockage or restricted flow
• System contamination after condenser failure
• Improper refrigerant heat transfer causing weak vent temperatures
• Fitment mismatch when replacing the original Subaru condenser assembly

Installation Notes and Tips

Verify the inlet and outlet block fitting design before installation and compare the core dimensions to the original unit. Replace the condenser only after the system has been properly evacuated and inspected for contamination, leaks, and debris. Confirm vehicle fitment by year, model, and equipment level, including 2026 Subaru Crosstrek with Eye Sight Driver Assist Technology.

Quality Assurance

TYC manufactures HVAC replacement components for OE-style fitment and application-specific replacement needs. TYC 30301 is built to match the listed Subaru applications and connection style for a direct replacement approach.
