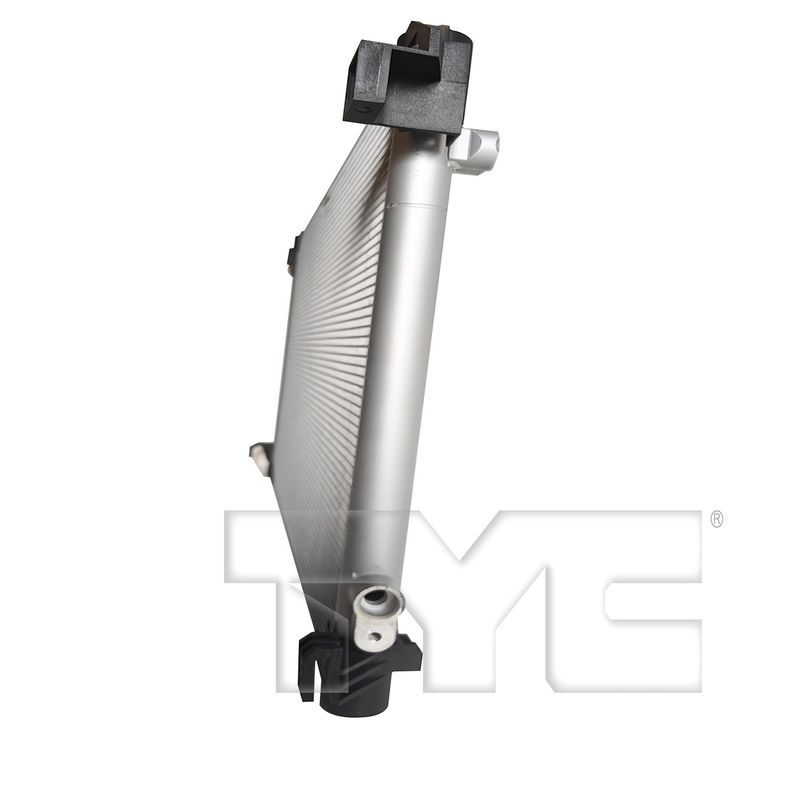

TYC 30310 A/C Condenser
OE Quality 60-Day Returns
TYC

TYC 30310 A/C Condenser

Brand TYC 30310
Built-in Dryer No
Configuration Parallel flow
Core Height (in) 15.38
Core Length (in) 28.54
Core Thickness (in) 0.87
Inlet Diameter 15.5mm
Inlet Fitting Design Block fitting
Outlet Diamter 15.5mm
Outlet Fitting Design Block fitting
Fits Toyota · 3 vehicles

Parallel flow design. Supports efficient refrigerant heat transfer in a compact condenser layout.

Block fitting connections. Matches the specified inlet and outlet style for factory-style line attachment.

Vehicle-specific fitment. Built for select Toyota Prius and Prius Prime applications.

Cross-references 884A0-47020 and TO3030354 for the same application. See all 2.

$96.06Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $96.06
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Condenser options

TYC 30310 A/C Condenser Overview

TYC 30310 is an A/C condenser for select Toyota Prius and Toyota Prius Prime applications. It uses a parallel flow core and block fitting connections to match the specified HVAC layout for these vehicles.

Key Features

  • Parallel flow condenser design for efficient refrigerant heat transfer
  • Core dimensions: 28.54 in. length, 15.38 in. height, 0.87 in. thickness
  • 15.5 mm inlet and outlet diameters with block fitting design
  • No built-in dryer
  • Direct-fit HVAC component for the listed Toyota applications

Product Details

This TYC A/C condenser, part number 30310, is built for 2025 Toyota Prius and 2023-2024 Toyota Prius Prime models. The parallel flow construction provides a compact condenser layout, while the block fitting inlet and outlet help match the factory-style refrigerant line connection points. This part cross-references Toyota OE number 884A0-47020 for the same application.

Common Replacement Reasons

  • Damaged condenser fins or core from road debris
  • Reduced A/C performance from refrigerant flow restriction
  • Leaks at the condenser core or line connections
  • Corrosion or physical damage affecting heat exchange

Installation Notes

Verify condenser dimensions, inlet and outlet fitting design, and line connection size before installation. Replace any contaminated refrigerant system components as required by the vehicle service procedure, and confirm proper evacuation and recharge after installation. Confirm fitment for your exact Prius or Prius Prime year before ordering.

Quality Assurance

TYC manufactures HVAC replacement parts for vehicle-specific applications, and this condenser is built to match the listed fitment and connection style for the specified Toyota models.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeLitersCylindersNotes
2025ToyotaPriusPlug-In Hybrid SEHatchback2.0LL4—
2024ToyotaPrius PrimeXSE PremiumHatchback2.0LL4—
2023ToyotaPrius PrimeXSE PremiumHatchback2.0LL4—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
884A0-47020TO3030354
