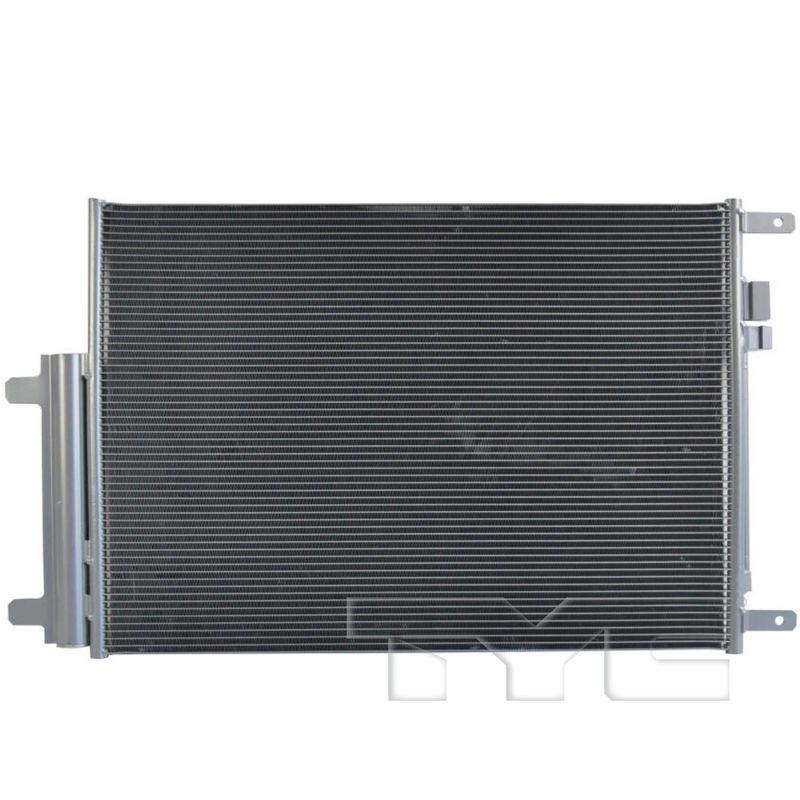

TYC 30316 A/C Condenser
OE Quality 60-Day Returns
TYC

TYC 30316 A/C Condenser

Brand TYC 30316
Built-in Receiver/dryer Yes
Configuration Parallel flow
Core Height (in) 16.40
Core Length (in) 23.98
Core Thickness (in) 0.47
Inlet Connection Type Block fitting
Inlet Diameter 15.5mm
Outlet Connection Type Block fitting
Outlet Diamter 10.15mm
Fits Jeep · 4 vehicles

Parallel-flow design. Promotes efficient refrigerant heat transfer in the condenser core.

Integrated receiver/dryer. Combines key A/C service functions in one replacement assembly.

Application-specific fit. Block fitting connections match the original HVAC layout.

Cross-references Eastern Catalytic 30316, 68494833AA and CH3030277 for the same application. See all 3.

$98.04Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $98.04
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all A/C Condenser options

Overview

TYC A/C Condenser 30316 is a direct-fit HVAC replacement for the Jeep Compass. It is built around a parallel-flow core and includes a built-in receiver/dryer for a cleaner, more integrated condenser assembly.

Fits 2023-2026 Jeep Compass, N/A. Part number 30316 is a practical match for owners replacing a leaking, restricted, or damaged condenser in this application.

Key Features

  • Parallel-flow condenser design for efficient refrigerant heat transfer.
  • Built-in receiver/dryer for an integrated A/C service component.
  • Block fitting inlet and outlet connections for application-specific fitment.
  • Compact core dimensions: 16.40 in. height, 23.98 in. length, and 0.47 in. thickness.
  • TYC replacement part number 30316 for HVAC service work.

Detailed Description

This TYC A/C condenser, part number 30316, is engineered for 2023-2026 Jeep Compass models and uses a parallel-flow layout to support refrigerant cooling efficiency. The built-in receiver/dryer adds an integrated service feature, while the block fitting inlet and outlet connections help match the original-style HVAC layout. For buyers searching for a Jeep Compass A/C condenser 30316 or a replacement condenser for 2023-2026 Jeep Compass, this unit provides the core dimensions and connection style needed for a focused repair.

This part cross-references Eastern Catalytic 30316 and 68494833AA for the same application.

Common Repair Uses

  • Leaking condenser core.
  • Restricted refrigerant flow through the condenser.
  • Physical damage from road debris or impact.
  • Loss of A/C cooling performance caused by condenser failure.

Installation Notes

Verify inlet and outlet connection types, core dimensions, and vehicle-specific HVAC layout before installation. Replace the condenser when contamination, impact damage, or internal restriction is present, and confirm the system is properly evacuated and recharged after service.

Quality Assurance

TYC manufactures replacement HVAC components for service applications that require application-specific fit and construction details. Part number 30316 is built with a parallel-flow configuration and integrated receiver/dryer for this vehicle fitment.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeLitersCylindersNotes
2026JeepCompassLatitudeSport Utility2.0LL4—
2025JeepCompassSportSport Utility2.0LL4—
2024JeepCompassLimitedSport Utility2.0LL4—
2023JeepCompassRedSport Utility2.0LL4—
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Eastern Catalytic — 3031668494833AACH3030277
