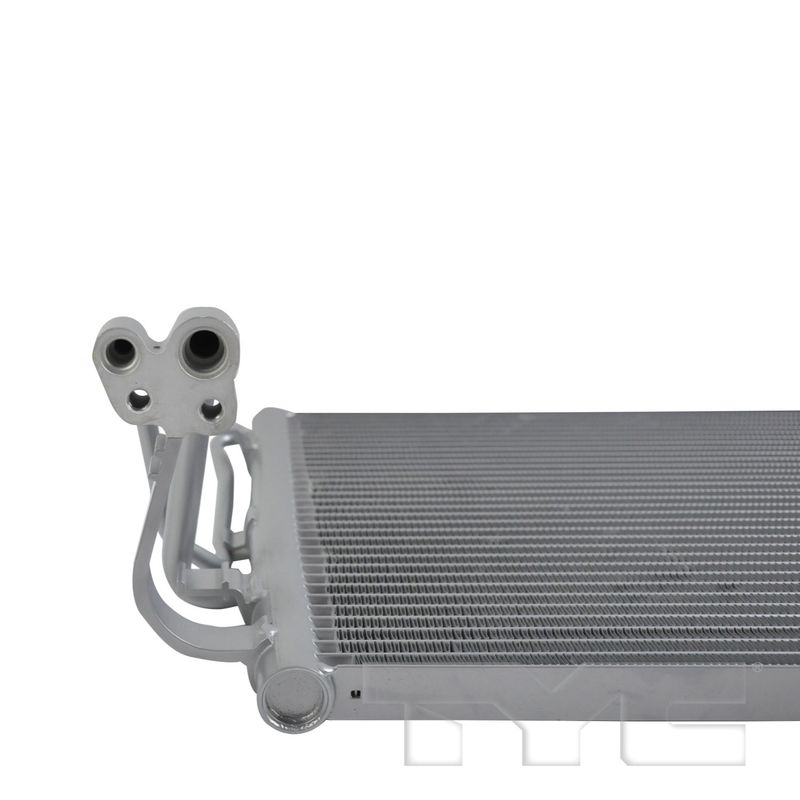

TYC 30317 A/C Condenser
| Brand | TYC 30317 |
|---|---|
| Built-in Receiver/dryer | Yes |
| Configuration | Parallel flow |
| Core Height (in) | 13.16 |
| Core Length (in) | 27.87 |
| Core Thickness (in) | 0.79 |
| Inlet Connection Type | Block fitting |
| Inlet Diameter | 12.9mm |
| Outlet Connection Type | Block fitting |
| Outlet Diamter | 8.6mm |
| Fits | Hyundai · 3 vehicles |
Parallel flow design. Promotes efficient refrigerant heat transfer through the condenser core.
Integrated receiver/dryer. Combines key A/C system functions in one service assembly.
OE cross-reference. Matches Hyundai numbers 97606-L5AA0 and HY3030201 for the same application.
Cross-references TYC 30317, 97606-L5AA0 and HY3030201 for the same application. See all 3.
Product Overview
TYC A/C condenser part number 30317 is built for Hyundai Sonata applications and uses a parallel flow design with a built-in receiver/dryer. It is configured with block fitting connections and is sized to match the listed application requirements.
Compatible with Hyundai Sonata models, this condenser is a fitment-based replacement for 2023-2025 vehicles, including the 2023 Sonata built from 12/01/2022. The TYC 30317 condenser is a direct service part for restoring A/C system heat exchange performance.
Key Features
- Parallel flow condenser design for efficient refrigerant cooling.
- Built-in receiver/dryer for integrated A/C system service.
- Block fitting inlet and outlet connections for the listed application.
- Core dimensions: 13.16 in. height, 27.87 in. length, 0.79 in. thickness.
- Part number 30317 for accurate ordering and fitment lookup.
Detailed Description
This TYC A/C condenser, part number 30317, is engineered for Hyundai Sonata fitment and matches the application-specific connection style and core dimensions listed in the product data. The parallel flow construction supports refrigerant heat transfer, while the integrated receiver/dryer consolidates key A/C system functions in one assembly. For buyers searching for a Hyundai Sonata A/C condenser or a 2024-2025 Hyundai Sonata condenser replacement, this part number provides a cataloged match for the specified vehicles.
This part cross-references Hyundai OE numbers 97606-L5AA0 and HY3030201 for the same application.
What It Is Used For
- Replacing a leaking or damaged A/C condenser.
- Restoring refrigerant cooling efficiency in the A/C system.
- Addressing poor cabin cooling caused by condenser restriction or damage.
- Replacing a condenser with integrated receiver/dryer construction.
Installation Notes and Tips
Verify the vehicle build date for the 2023 Hyundai Sonata, since the listed fitment begins on 12/01/2022. Confirm block fitting connection style and compare the core dimensions before installation. Always inspect the A/C system for contamination, leaks, and related component wear before returning the system to service.
Quality Assurance
TYC supplies replacement cooling and climate-control components with application-specific fitment data for cataloged vehicle coverage. Part number 30317 is listed with OE cross-reference numbers for the same application.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2025 | Hyundai | Sonata | Hybrid SEL | Sedan | 2.0L | L4 | — |
| 2024 | Hyundai | Sonata | Hybrid Limited | Sedan | 2.0L | L4 | — |
| 2023 | Hyundai | Sonata | Hybrid Blue | Sedan | 2.0L | L4 | From 12/01/2022 |
