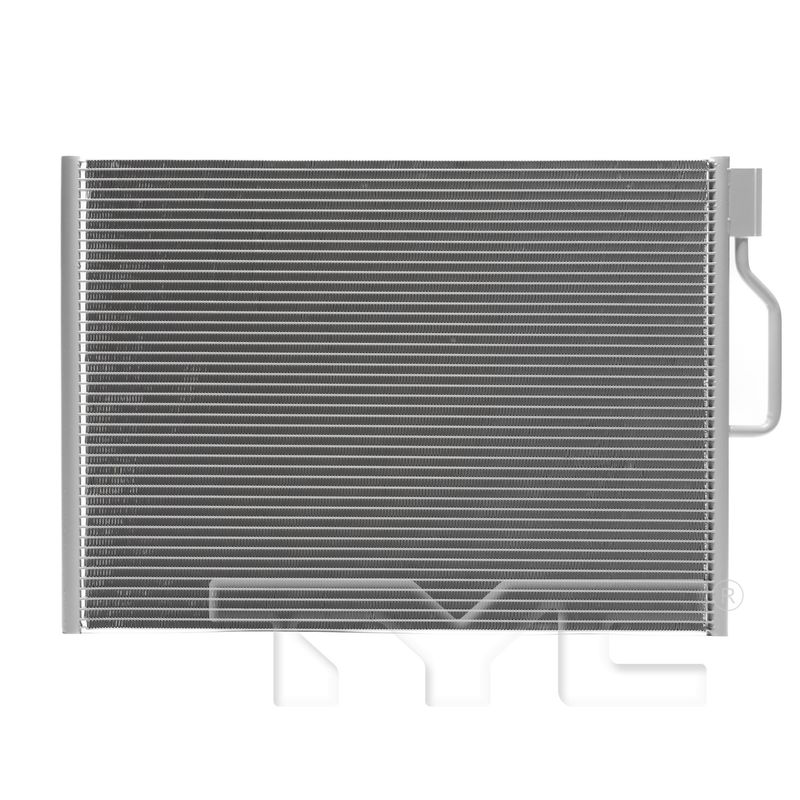

TYC 30335 A/C Condenser
| Brand | TYC 30335 |
|---|---|
| Configuration | Parallel flow condenser(pfc) |
| Core Height (in) | 18.13 |
| Core Length (in) | 25.00 |
| Core Thickness (in) | 0.63 |
| Inlet Connection Type | Block fitting |
| Inlet Diameter | 11.73mm |
| Outlet Connection Type | Block fitting |
| Outlet Diamter | 8.50mm |
| Fits | Cadillac, Chevrolet, and Honda · 9 vehicles |
Parallel flow design. Promotes efficient refrigerant heat transfer through the condenser core.
Block fitting connections. Uses matched inlet and outlet connection sizes for application-specific service.
OE-style fitment. Cataloged for Cadillac LYRIQ, Chevrolet Blazer EV, and Honda Prologue applications.
Cross-references TYC 30335, 84671660 and GM3030345 for the same application. See all 3.
Product Overview
TYC A/C Condenser 30335 is a parallel flow condenser built for modern HVAC service applications. It is compatible with 2023-2025 Cadillac LYRIQ, 2024-2026 Chevrolet Blazer EV, and 2024-2026 Honda Prologue, making it a fitment-based choice for EV climate control repairs.
Key Features
- Parallel flow condenser (PFC) design for efficient refrigerant heat transfer.
- Core dimensions: 18.13 in. height, 25.00 in. length, and 0.63 in. thickness.
- Block fitting inlet and outlet connections for direct system matching.
- Inlet diameter measures 11.73 mm and outlet diameter measures 8.50 mm.
- TYC 30335 is listed for Cadillac LYRIQ, Chevrolet Blazer EV, and Honda Prologue applications.
Detailed Description
TYC 30335 is an A/C condenser engineered with a parallel flow layout, a common design used to move refrigerant heat efficiently through the HVAC system. The condenser core measures 18.13 inches by 25.00 inches with a 0.63-inch thickness, and it uses block fitting connections with 11.73 mm inlet and 8.50 mm outlet diameters. This part number, 30335, is cataloged for 2023-2025 Cadillac LYRIQ, 2024-2026 Chevrolet Blazer EV, and 2024-2026 Honda Prologue applications.
For buyers searching for a Cadillac LYRIQ A/C condenser, Chevrolet Blazer EV condenser replacement, or Honda Prologue HVAC condenser by part number 30335, this listing provides the fitment and connection details needed to verify the application before service.
Common Uses
- Restores condenser function when the original unit is leaking or damaged.
- Addresses reduced A/C cooling performance caused by restricted heat exchange.
- Replaces a condenser with incorrect inlet or outlet connection sizing.
- Supports repair of HVAC issues tied to physical core damage or corrosion.
Installation Notes
Verify the condenser core dimensions, block fitting style, and inlet and outlet diameters against the original unit before installation. Confirm vehicle application by year, make, and model, especially when servicing Cadillac LYRIQ, Chevrolet Blazer EV, or Honda Prologue HVAC systems. Professional A/C service procedures, including proper evacuation and recharge, should be followed during replacement.
Quality Assurance
TYC is an established aftermarket brand for thermal management and HVAC components. Part number 30335 is cataloged with OE-style fitment references for the listed applications, and cross-references include 84671660 and GM3030345 for the same application.
| Year | Make | Model | Submodel | Body Type | Drive Type | Notes |
|---|---|---|---|---|---|---|
| 2026 | Chevrolet | Blazer EV | PPV | Sport Utility | AWD | — |
| 2026 | Honda | Prologue | EX | Sport Utility | — | — |
| 2025 | Cadillac | LYRIQ | Sport | Sport Utility | AWD | — |
| 2025 | Chevrolet | Blazer EV | LT | Sport Utility | AWD | — |
| 2025 | Honda | Prologue | EX | Sport Utility | — | — |
| 2024 | Cadillac | LYRIQ | Tech | Sport Utility | AWD | — |
| 2024 | Chevrolet | Blazer EV | RS | Sport Utility | AWD | — |
| 2024 | Honda | Prologue | EX | Sport Utility | — | — |
| 2023 | Cadillac | LYRIQ | Luxury | Sport Utility | RWD | — |
| No rows match your filter. | ||||||
