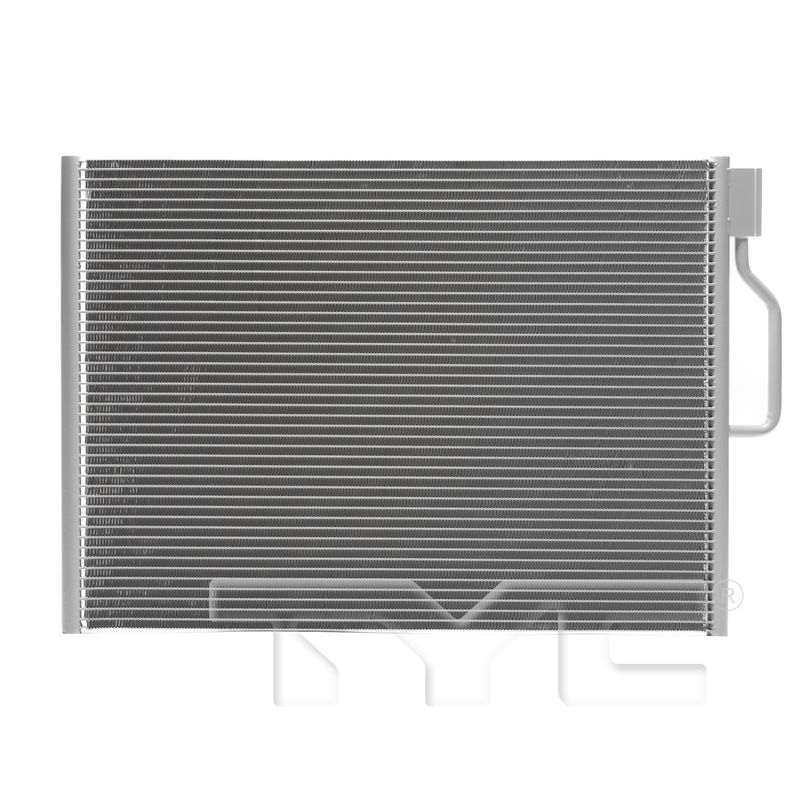

TYC 30336 A/C Condenser

Product Overview

TYC 30336 is an A/C condenser built for select Cadillac and Chevrolet EV applications. It uses a parallel flow condenser design with block fittings and compact core dimensions for a direct-fit HVAC replacement.

Key Features

• Parallel flow condenser (PFC) design for efficient refrigerant heat transfer.
• Block fitting inlet and outlet connections for OE-style hose attachment.
• Core dimensions: 16.16 in. height, 25.00 in. length, and 0.63 in. thickness.
• Fits 2025 Cadillac OPTIQ and 2024-2025 Chevrolet Equinox EV applications.
• TYC 30336 cross-references GM 84671662 and GM3030346 for the same application.

Detailed Description

TYC 30336 is an A/C condenser engineered around a parallel flow layout, which supports efficient refrigerant cooling in modern HVAC systems. The block fitting inlet and outlet connections, along with the listed core size, make this condenser a fitment-specific replacement for the Cadillac OPTIQ and Chevrolet Equinox EV. If you are replacing a leaking or restricted condenser, TYC 30336 provides the correct form factor for these applications. This part number, 30336, is also cross-referenced to GM 84671662 and GM3030346 for the same application.

Common Replacement Reasons

• Refrigerant loss caused by a leaking condenser core.
• Reduced A/C performance from internal restriction or damage.
• Physical damage from road debris or front-end impact.
• Incorrect fitment when replacing an OE condenser with the wrong core size or connection style.

Installation Notes and Tips

Verify the condenser core dimensions and block fitting connection style before installation. Confirm vehicle application details for the Cadillac OPTIQ or Chevrolet Equinox EV to ensure the correct HVAC match. Always inspect the surrounding A/C system components for contamination or damage before returning the system to service.

Quality Assurance

TYC replacement HVAC components are built to match application-specific requirements and OE-style fitment expectations.
