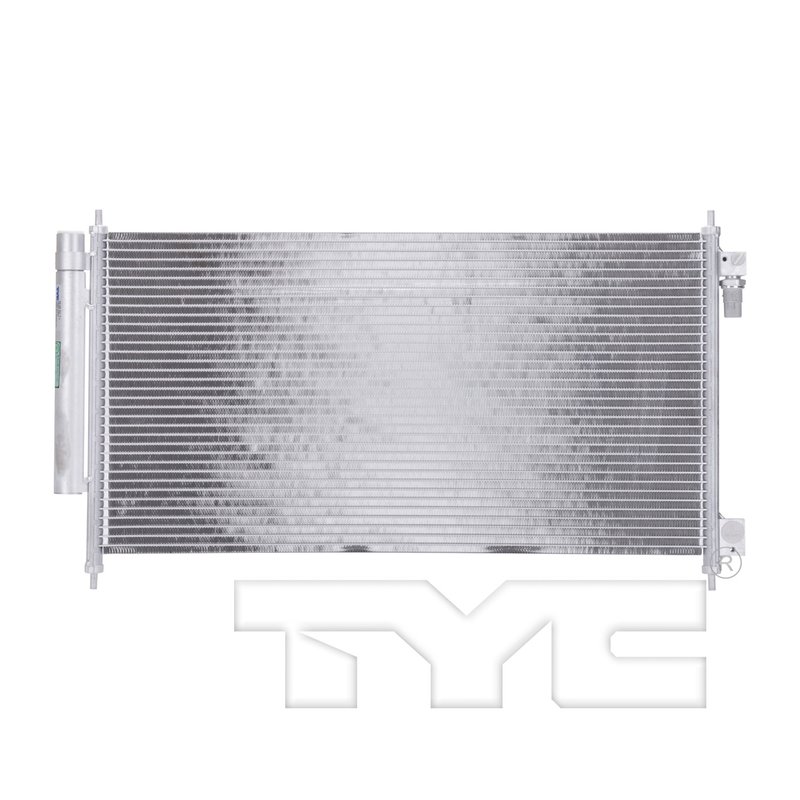

TYC 3089 A/C Condenser
| Brand | TYC 3089 |
|---|---|
| Configuration | Parallel flow condenser (pfc) |
| Components Included | Receiver/drier |
| Core Height (in) | 27.00 |
| Core Length (in) | 13.75 |
| Core Size | 27" x 13 6/8" x 5/8" |
| Core Thickness (in) | 0.63 |
| Inlet Size | Block fitting |
| Outlet Size | Block fitting |
| Fits | Acura · 7 vehicles |
Parallel flow design. Promotes efficient refrigerant flow through the condenser core.
Receiver/drier included. Adds a key component for moisture control in the A/C system.
A/C condenser. Transfers heat from refrigerant to help the system cool effectively.
Cross-references ACI P40392, Acura 80110-SEP-A01 and APDI 7013089 for the same application. See all 11.
TYC 3089 A/C Condenser for Acura TL
Restore A/C system performance with this TYC 3089 A/C condenser for the 2004-2008 Acura TL. It is a parallel flow condenser with a receiver/drier and block fitting inlet and outlet connections for a direct-fit replacement in the factory HVAC layout.
Key Features
- Parallel Flow Condenser (PFC) construction for efficient refrigerant heat transfer
- Includes receiver/drier
- Core size: 27" x 13 6/8" x 5/8"
- Core height: 27.00 in.
- Core length: 13.75 in.
- Core thickness: 0.63 in.
- Block fitting inlet and outlet sizes
- Cross-reference: Acura 80110-SEP-A01
Detailed Description
TYC 3089 is an A/C condenser built for the 2004-2008 Acura TL and matches the factory-style parallel flow layout used in the vehicle’s air conditioning system. The condenser measures 27 inches by 13 6/8 inches by 5/8 inch and uses block fitting connections at both the inlet and outlet. With the receiver/drier included, this unit supports a clean replacement of the original condenser assembly in the Acura TL HVAC system. This part cross-references Acura 80110-SEP-A01 for the same application.
What It Helps Fix
- Warm air from the vents caused by poor refrigerant heat exchange
- Loss of A/C efficiency in the 2004-2008 Acura TL
- Leaks or damage in the condenser core
- Restricted refrigerant flow at the condenser connections
- Service needs related to a failed receiver/drier
Installation Notes and Tips
Verify condenser dimensions, block fitting style, and vehicle application before installation. Replace contaminated refrigerant system components as needed and inspect seals, lines, and mounting points during service. Proper evacuation and recharge procedures are required after condenser replacement on the Acura TL.
Quality Assurance
TYC manufactures replacement HVAC components for automotive applications, and this condenser is built to match the specified fitment and connection style for the 2004-2008 Acura TL. Part number 3089 is listed for direct application matching and interchange verification.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | Acura | TL | Base | Sedan | 3.2L | V6 | N/A | A/C Condenser with Receiver/Drier. |
| 2008 | Acura | TL | Type-S | Sedan | 3.5L | V6 | N/A | A/C Condenser with Receiver/Drier. |
| 2007 | Acura | TL | Base | Sedan | 3.2L | V6 | N/A | A/C Condenser with Receiver/Drier. |
| 2007 | Acura | TL | Type-S | Sedan | 3.5L | V6 | N/A | A/C Condenser with Receiver/Drier. |
| 2006 | Acura | TL | Base | Sedan | 3.2L | V6 | N/A | A/C Condenser with Receiver/Drier. |
| 2005 | Acura | TL | Base | Sedan | 3.2L | V6 | N/A | A/C Condenser with Receiver/Drier. |
| 2004 | Acura | TL | Base | Sedan | 3.2L | V6 | N/A | A/C Condenser with Receiver/Drier. |
